Neuson 12002RDV

12002RD AIR SUCTION SYSTEM Diagram

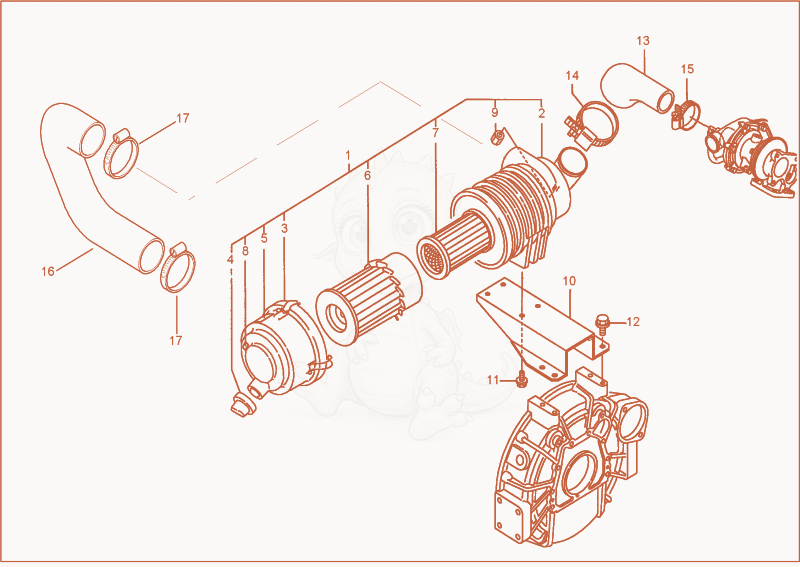

Exploded parts diagram of the AIR SUCTION SYSTEM of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000020165Not stocked
    air cleaner×1
  • 21000002142Not stocked
    dirt indicator×1
  • 31000002141Not stocked
    filter cover×1
  • 41000063319Not stocked
    dustexhaust valve×1
  • 51000113384
    $25.37
    airfilter insert - 1000113384×1
  • 61000113383
    $36.60
    airfilter element - 1000113383×1
  • 71000063313Not stocked
    engine gasket×1
  • 81000063216Not stocked
    hose air suction×1
  • 91000083322
    $4.17
    hose clamp 87-112mm - 1000083322×2
  • 101000063318Not stocked
    bracket filter×1
  • 111000063331Not stocked
    suction manifold×1
  • 121000063323Not stocked
    engine gasket×1
  • 131000063326Not stocked
    hose air suction×1
  • 141000063316Not stocked
    hose clamp×1
  • 151000063315Not stocked
    hose clamp×1
  • 161000075685
    $13.49
    HOSE CLAMP - 1000075685×2
  • 171000063325Not stocked
    hose air suction×1
  • 181000063327Not stocked
    suction manifold×1
  • 191000063312Not stocked
    engine gasket×1
  • 201000092943Not stocked
    preheater×1
