Neuson 12002RDV

12002RD fuel tank Diagram

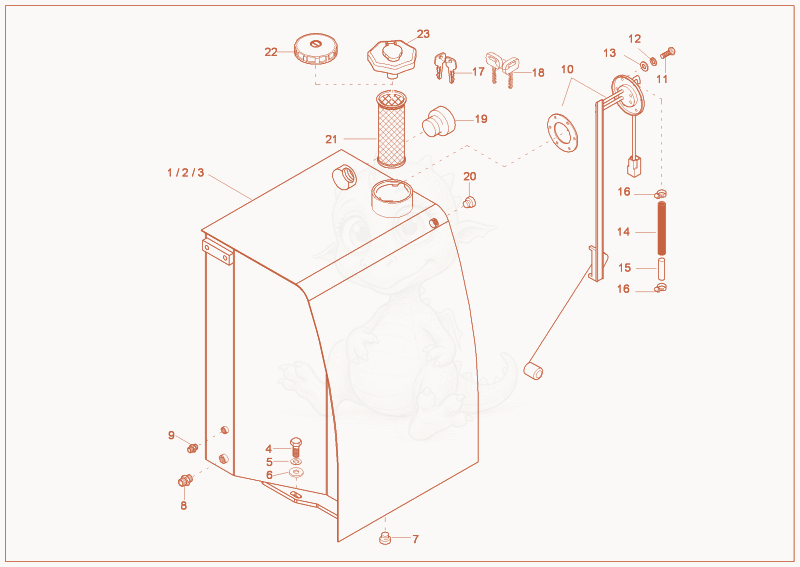

Exploded parts diagram of the fuel tank of a Wacker Neuson 12002RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000002074Not stocked
    fuel tank×1
  • 21000062752Not stocked
    fuel tank×1
  • 31000062753Not stocked
    fuel tank×1
  • 41000085404
    $0.93
    hex screw - 1000085404×4
  • 51000082609
    $0.73
    lock washer - 1000082609×4
  • 61000085610
    $0.43
    WASHER - 1000085610×4
  • 71000020797Not stocked
    screw joint×1
  • 81000015493Not stocked
    screw joint×1
  • 91000015491Not stocked
    screw joint×1
  • 101000012888Not stocked
    fuel transmitter×1
  • 111000085375
    $0.69
    hex screw - 1000085375×6
  • 121000082612
    $0.65
    lock washer - 1000082612×6
  • 131000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×6
  • 141000071915Not stocked
    fuel line×1
  • 151000085643Not stocked
    cylinder pin×1
  • 161000083292Not stocked
    hose clamp×2
  • 171000012845Not stocked
    filler cap key×1
  • 181000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 191000082828
    $8.04
    VSTI11/4EDA3C - 1000082828×1
  • 201000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×1
  • 211000075385
    $15.22
    filling sieve - 1000075385×1
  • 221000153897Not stocked
    filler cap×1
  • 231000244534
    $107.38
    filler cap X-1000376575 - 1000244534×1
