Neuson 12002RDV

12002RD valve cover Diagram

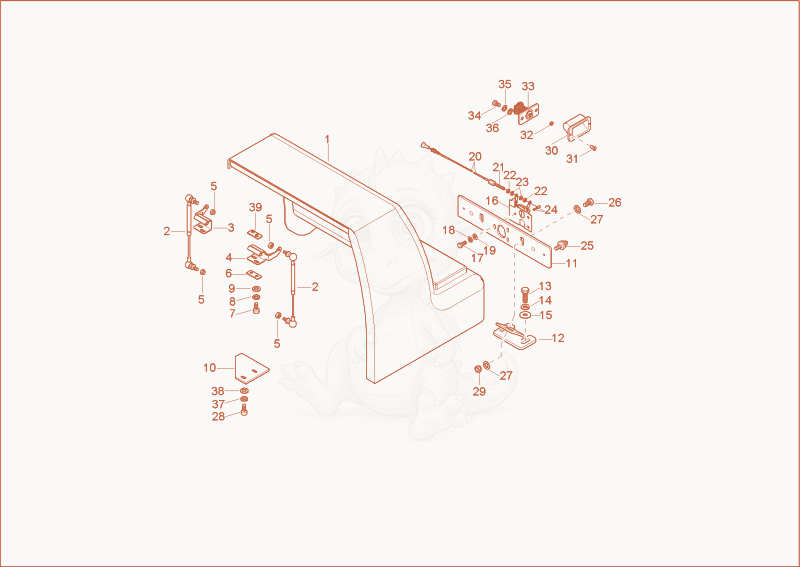

Exploded parts diagram of the valve cover of a Wacker Neuson 12002RD, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000062788Not stocked
valve cover×1
21000018418Not stocked
gas strut×2
31000094352Not stocked
hinge×1
41000094351Not stocked
hinge×1
51000085581
$1.51
HEXAGON NUT - 1000085581×4
61000062771Not stocked
angle shim×2
71000085390
$0.83
6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
81000015437Not stocked
lock washer×4
91000013027Not stocked
washer×4
101000062814Not stocked
lock plate×1
111000062812Not stocked
fixing profile×1
121000062811Not stocked
fixing angle×2
131000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
141000015438Not stocked
lock washer×4
151000015434Not stocked
washer×4
161000020415Not stocked
locking under part×1
171000085382
$0.70
HEX SCREW - 1000085382×3
181000015436Not stocked
lock washer×3
191000015430Not stocked
washer×3
201000012974Not stocked
actuaction cable×1
211000067547Not stocked
screw×1
221000085588
$0.32
self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
231000015430Not stocked
washer×2
241000004372Not stocked
screw nipple×1
251000080168Not stocked
rubber buffer×2
261000015364Not stocked
hex screw×2
271000092303
$0.86
Washer 10,5 St A2C - 1000092303×4
281000085454
$0.70
allen screw M6x12-8.8 A2C-DIN912 - 1000085454×2
291000015408
$1.33
nut M10-8 A2C-DIN985 - 1000015408×2
301000012844Not stocked
tray handle×1
311000082389
$0.85
COUNTERSUNK SCREW - 1000082389×2
321000085580
$0.72
hexagon nut - 1000085580×2
331000012843Not stocked
locking upper part×1
341000019136Not stocked
hex screw×2
351000015437Not stocked
lock washer×2
361000015431Not stocked
washer×2
371000015436Not stocked
lock washer×2
381000095343
$1.42
washer A 6,4 St A2C DIN9021 - 1000095343×2
391000012314Not stocked
hinge plate×2
