Excavator 28Z3

28Z3 service kit (500h) Diagram

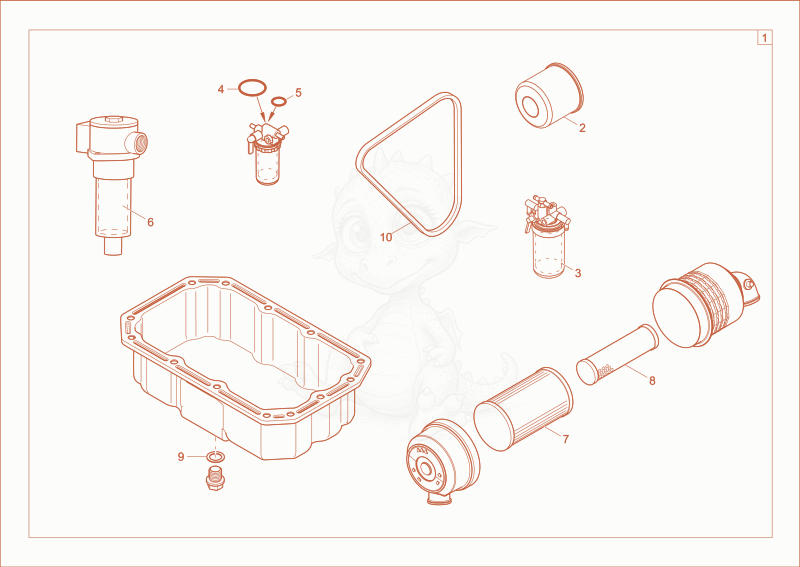

Exploded parts diagram of the service kit (500h) of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000175018
    $314.42
    SERVICE KIT - 1000175018×1
  • 21000003052
    $15.94
    engine oilfilter - 1000003052×1
  • 31000147873
    $13.92
    FUEL FILTER INSERT - 1000147873×1
  • 41000069998Not stocked
    gasket filter housing×1
  • 51000064543
    $1.72
    O-RING - 1000064543×1
  • 61000318994Not stocked
    reflux filter insert×1
  • 71000141558
    $34.00
    airfilter element - 1000141558×1
  • 81000141559
    $40.59
    airfilter element - 1000141559×1
  • 91000071058Not stocked
    seal ring×1
  • 101000148347
    $45.76
    V-belt - 1000148347×1
