Excavator 28Z3

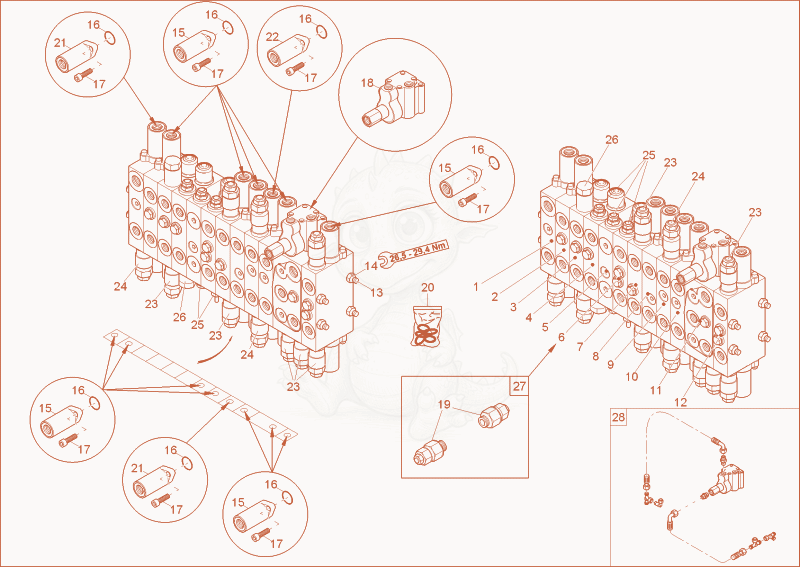

28Z3 CONTROL VALVE 2 Diagram

Exploded parts diagram of the CONTROL VALVE 2 of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000178956
    $906.74
    Auxiliarysegment 1000178956×1
  • 21000178957
    $1,049.62
    Rotarysegment 1000178957×1
  • 31000178958
    $906.74
    Dozerbladesegment 1000178958×1
  • 41000178960
    $906.74
    SWIVEL SEGMENT - 1000178960×1
  • 51000178961
    $906.74
    Exitsegment 1000178961×1
  • 61000178963
    $957.43
    Supplyhydraulicsegment 1000178963×1
  • 71000178964
    $1,153.58
    Bucketsticksegment 1000178964×1
  • 81000178965
    $957.43
    Travelsegment 1000178965×1
  • 91000178966
    $906.74
    Inputsegment 1000178966×1
  • 101000178967
    $957.43
    Travelsegment 1000178967×1
  • 111000268731
    $1,366.40
    Liftingboomsegment 1000268731×1
  • 121000268732
    $983.36
    Bucketsegment 1000268732×1
  • 131000155327
    $99.68
    TIE ROD - 1000155327×4
  • 141000125226
    $7.44
    NUT - 1000125226×8
  • 151000100929
    $122.64
    VALVE CAP - 1000100929×12
  • 161000069486Not stocked
    seal pilot control cap×15
  • 171000155315
    $8.13
    SCREW - 1000155315×30
  • 181000268734
    $756.71
    loadkeeping valve - 1000268734×1
  • 191000069344Not stocked
    secondary cartridge×2
  • 201000179071
    $201.27
    SEAL KIT CONTROL VALVE - 1000179071×1
  • 211000155318
    $125.84
    VALVE CAP - 1000155318×2
  • 221000100932
    $270.84
    VALVE CAP - 1000100932×1
  • 231000069344Not stocked
    secondary cartridge×7
  • 241000015281Not stocked
    main pressure limiter×3
  • 251000152582
    $59.06
    block valve - 1000152582×5
  • 261000069360Not stocked
    non return valve×2
  • 271000143244
    $544.18
    retrofit kit shockcartridge - 1000143244×1
  • 281000265913
    $1,057.98
    LOADKEEPING VALVE - 1000265913×1
