Excavator 28Z3

28Z3 DRIVER SEAT (tissue) Diagram

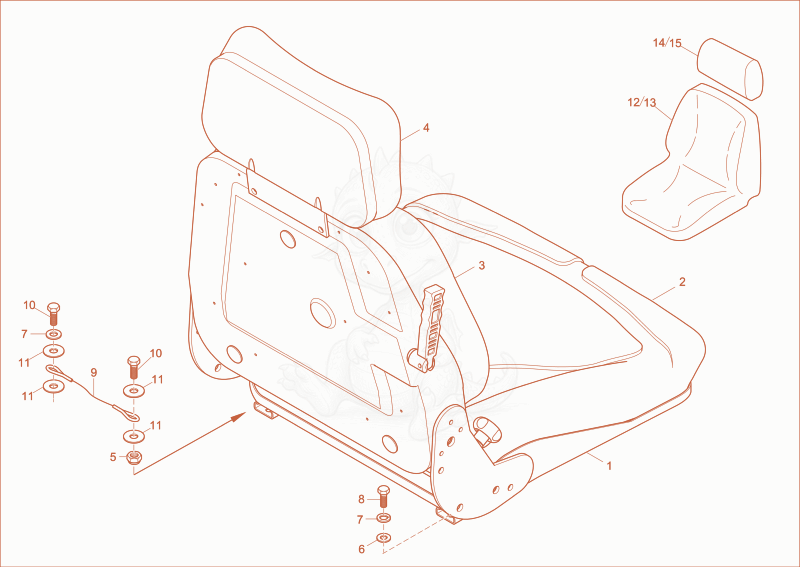

Exploded parts diagram of the DRIVER SEAT (tissue) of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000173405
    $602.46
    Driversseat 1000173405×1
  • 21000177179
    $315.52
    Seatupholstery 1000177179×1
  • 31000177181
    $183.25
    BACK CUSHION - 1000177181×1
  • 41000177358
    $163.91
    Headrest 1000177358×1
  • 51000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 61000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 71000015437Not stocked
    lock washer×5
  • 81000019136Not stocked
    hex screw×4
  • 91000292848
    $42.98
    fasten rope - 1000292848×1
  • 101000015343Not stocked
    hex screw×2
  • 111000015431Not stocked
    washer×4
  • 121000325691
    $208.71
    SLIPCOVER FOR DRIVER SEAT - 1000325691×1
  • 131000325692
    $137.07
    SLIPCOVER FOR DRIVER SEAT - 1000325692×1
  • 141000325702Not stocked
    slip-cover×1
  • 151000325703Not stocked
    slip-cover×1
