Excavator 28Z3

28Z3 rear plate Diagram

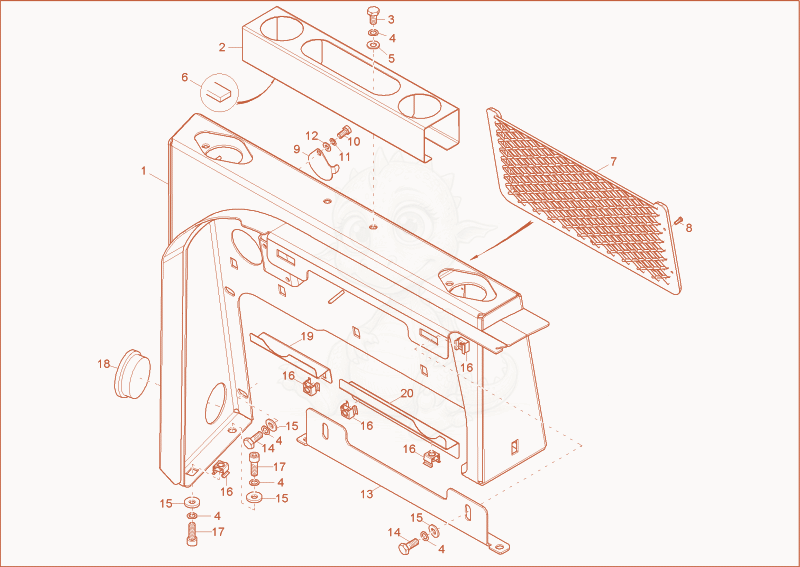

Exploded parts diagram of the rear plate of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000164223
    $823.22
    rear plate - 1000164223×1
  • 21000165227
    $102.48
    BOARD - 1000165227×1
  • 31000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 41000015438Not stocked
    lock washer×6
  • 51000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 61000098196
    $0.67
    seal strap foam 10x15 - 1000098196×1
  • 71000168897
    $63.72
    net - 1000168897×1
  • 81000085560
    $0.93
    screw - 1000085560×5
  • 91000160167
    $10.05
    COVER - 1000160167×1
  • 101000019136Not stocked
    hex screw×1
  • 111000015437Not stocked
    lock washer×1
  • 121000015431Not stocked
    washer×1
  • 131000172813Not stocked
    angle×1
  • 141000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 151000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
  • 161000094956
    $1.05
    cage nut M10 3,3-4,7 - 1000094956×15
  • 171000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
  • 181000072490
    $3.26
    PLUG - 1000072490×1
  • 191000165226
    $12.10
    BRACKET - 1000165226×1
  • 201000165228
    $7.63
    BRACKET - 1000165228×1
