Excavator 28Z3

28Z3 GRAB EQUIPMENT (OPTION) Diagram

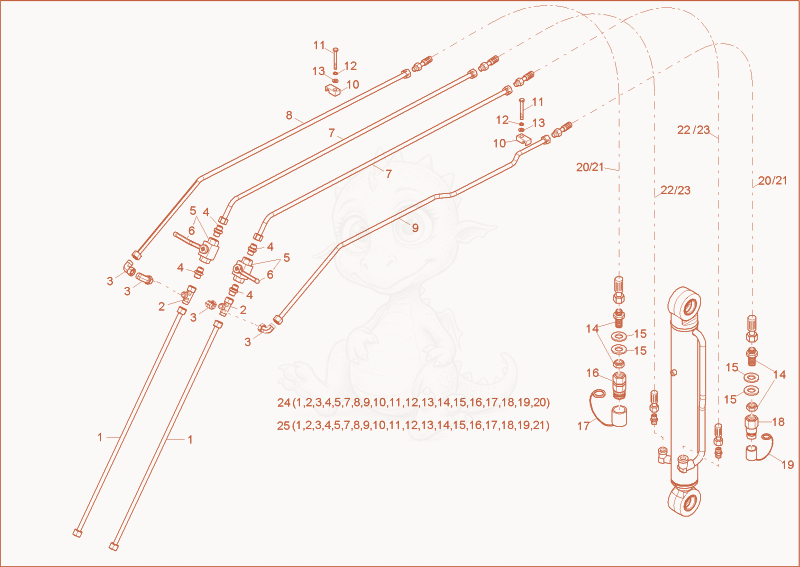

Exploded parts diagram of the GRAB EQUIPMENT (OPTION) of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000163269
    $80.38
    PIPE LINE - 1000163269×2
  • 21000015516
    $13.63
    EL12LOMDA3C - 1000015516×2
  • 31000000573Not stocked
    screw joint×4
  • 41000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×4
  • 51000064777Not stocked
    ball valve×2
  • 61000172516
    $14.84
    SW09 GEKR��PFT - 1000172516×2
  • 71000169752
    $49.27
    PIPE LINE - 1000169752×2
  • 81000169751
    $48.85
    PIPE LINE - 1000169751×1
  • 91000251650
    $59.49
    pipe line - 1000251650×1
  • 101000169754
    $15.95
    PIPE CLAMP - 1000169754×2
  • 111000085393
    $0.93
    hex screw - 1000085393×2
  • 121000015437Not stocked
    lock washer×2
  • 131000015431Not stocked
    washer×2
  • 141000160343
    $47.77
    screw joint 12L 1/2" - 1000160343×2
  • 151000015452Not stocked
    washer×4
  • 161000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 171000109417
    $10.12
    Protection cap - 1000109417×1
  • 181000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 191000109416
    $8.43
    Protection cap - 1000109416×1
  • 201000171082
    $42.55
    SLHYDR 2SC 10 PN12 0 PD12 0 L850,0F0 - 1000171082×2
  • 211000171088
    $51.25
    SLHYDR 2SC 10 PN12 0 PD12 0 L1050 F0 - 1000171088×2
  • 221000076936
    $17.25
    Slhydr2Sc10Pn120Pd120L90000 1000076936×2
  • 231000171087
    $35.90
    SLHYDR 2SC 10 PN12 0 PD12 0 L1100 0 - 1000171087×2
  • 241000177084
    $938.94
    Retrofitgrapplemounting 1000177084×1
  • 251000177085
    $956.35
    Retrofitgrapplemounting 1000177085×1
