Excavator 28Z3

28Z3 WIRE HARNESS QHS HYDRAULICALLY Diagram

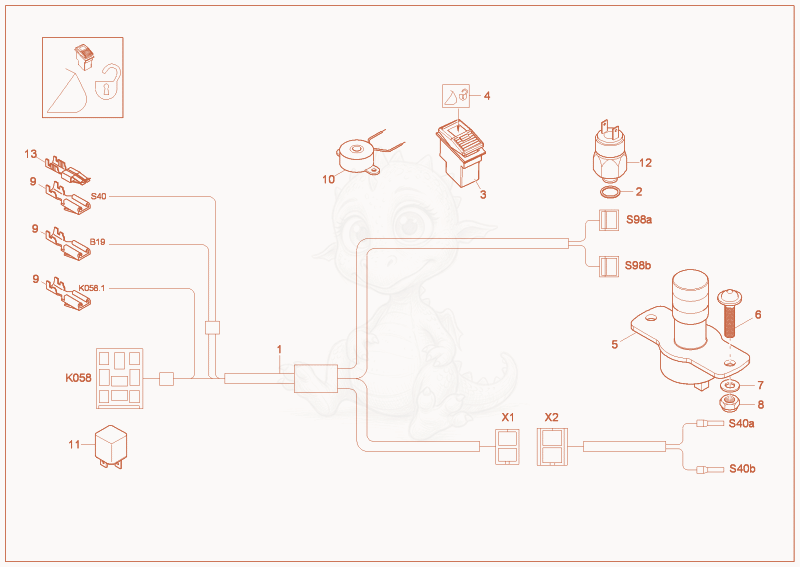

Exploded parts diagram of the WIRE HARNESS QHS HYDRAULICALLY of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000233572
    $191.44
    WIRE HARNESS - 1000233572×1
  • 21000124948
    $12.46
    screw seal - 1000124948×1
  • 31000152239
    $70.50
    switch - 1000152239×1
  • 41000163567
    $9.65
    symbol - 1000163567×1
  • 51000004319Not stocked
    foot feeler×1
  • 61000150734
    $0.73
    ovalhead screw - 1000150734×2
  • 71000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 81000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 91000095371Not stocked
    plug sleeve×3
  • 101000082006
    $33.64
    signal - 1000082006×1
  • 111000353650Not stocked
    relay×1
  • 121000233900
    $98.18
    PRESSURE SWITCH - 1000233900×1
  • 131000027387Not stocked
    timer contact×2
  • K0581000101071
    $7.72
    Plug housing - 1000101071×1
  • S40A1000051988
    $0.91
    endsleeve - 1000051988×1
  • S40B1000098962
    $0.68
    endsleeve - 1000098962×1
  • S98A1000019583Not stocked
    plug sleeve housing×1
  • S98B1000019583Not stocked
    plug sleeve housing×1
  • X11000095336Not stocked
    plug sleeve housing×1
  • X21000000481Not stocked
    plug housing×1
