Excavator 28Z3

28Z3 dipperstick Diagram

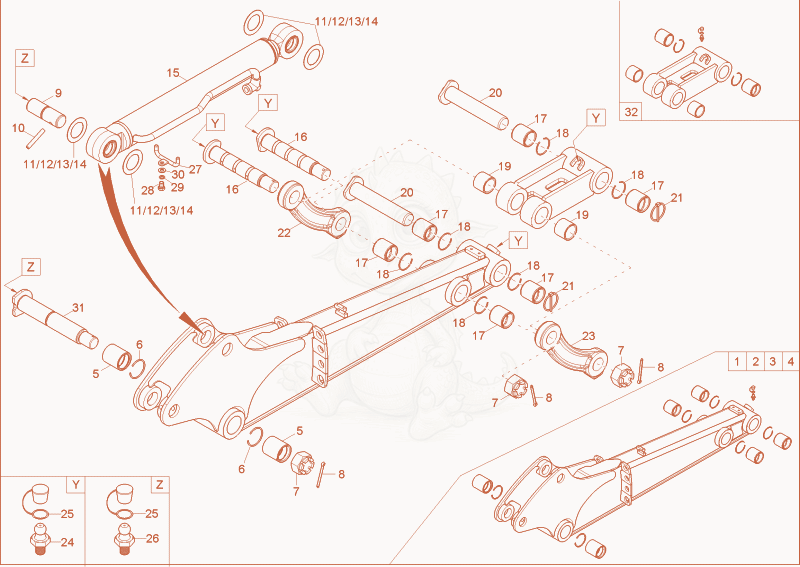

Exploded parts diagram of the dipperstick of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000234940
    $3,871.76
    1000234940EMBLED DIPPER - 1000234940×1
  • 21000176196
    $4,677.82
    PRE-ASSEMBLED DIPPER ARM - 1000176196×1
  • 31000176197
    $4,677.82
    PRE-ASSEMBLED DIPPER ARM - 1000176197×1
  • 41000176198Not stocked
    PRE-ASSEMBLED DIPPER ARM×1
  • 51000019754Not stocked
    steel bushing×2
  • 61000095015
    $1.03
    lock ring - 1000095015×2
  • 71000015417
    $12.94
    DIN935-M36-8-A2C - 1000015417×3
  • 81000021603
    $0.88
    COTTERPIN - 1000021603×3
  • 91000163290
    $67.30
    PIN - 1000163290×1
  • 101000185687
    $6.79
    cotter pin - 1000185687×1
  • 111000154275
    $2.38
    SHIM - 1000154275×1
  • 121000154276
    $2.11
    SHIM - 1000154276×1
  • 131000154278
    $2.53
    SHIM - 1000154278×1
  • 141000154280
    $2.84
    SHIM - 1000154280×1
  • 151000186345
    $1,404.28
    Bucketcylinder 1000186345×1
  • 161000163292
    $173.87
    PIN - 1000163292×2
  • 171000015608Not stocked
    steel bushing×6
  • 181000021601Not stocked
    lock ring×6
  • 191000015607Not stocked
    steel bushing×2
  • 201000296761
    $52.12
    Pin 1000296761×2
  • 211000015459
    $5.95
    COTTER PIN - 1000015459×2
  • 221000160112
    $148.09
    Pivotplate 1000160112×1
  • 231000160111
    $245.60
    Pivotplate 1000160111×1
  • 241000015475Not stocked
    grease nipple×4
  • 251000015480Not stocked
    cap grease nipple×6
  • 261000015476Not stocked
    grease nipple×2
  • 271000113934
    $16.69
    bracket hose - 1000113934×1
  • 281000013009Not stocked
    hex screw×1
  • 291000015438Not stocked
    lock washer×1
  • 301000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 311000139681
    $252.68
    PIN - 1000139681×1
  • 321000176132
    $884.40
    Pre Assembledconnectinglink 1000176132×1
