ET90

ET90 DIPPER ARM OPERATION Diagram

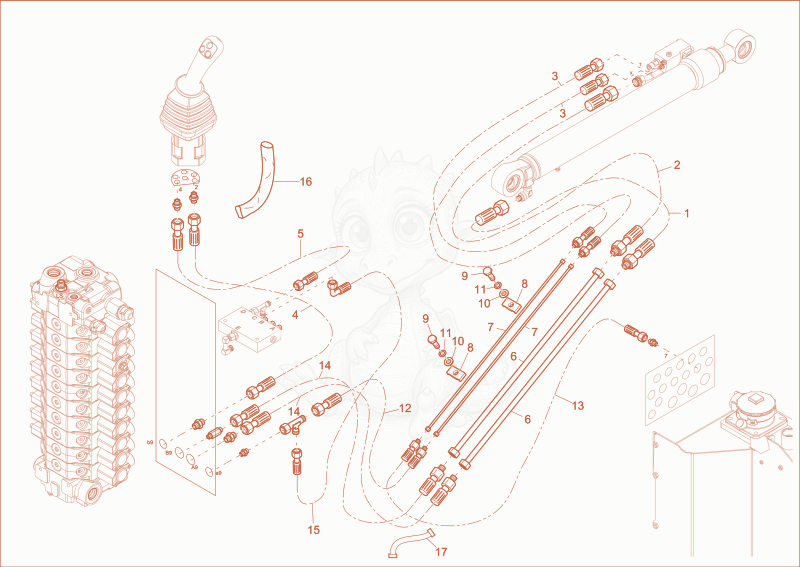

Exploded parts diagram of the DIPPER ARM OPERATION of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000334951Not stocked
    Hose×1
  • 21000334952Not stocked
    Hose×1
  • 31000348531Not stocked
    Hose×2
  • 41000324102Not stocked
    Hose×1
  • 51000076395
    $35.63
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2450 0 - 1000076395×1
  • 61000328561Not stocked
    pipe line×2
  • 71000308889Not stocked
    pipe line×2
  • 81000310880Not stocked
    pipe clamp×2
  • 91000015348Not stocked
    hex screw×2
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 111000015438Not stocked
    lock washer×2
  • 121000365802
    $44.12
    SLHYDR 1SC 8,0PN8 0 PD10 0 L2100 S0 - 1000365802×1
  • 131000365803
    $51.88
    SLHYDR 1SC 8,0PN8 0 PD10 0 L3400 S0 - 1000365803×1
  • 141000365795Not stocked
    Hose×2
  • 151000076313
    $58.94
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1200 0 - 1000076313×1
  • 161000277618
    $22.41
    protecting hose black - 1000277618×1
  • 171000347080Not stocked
    lock strap×1
