ET90

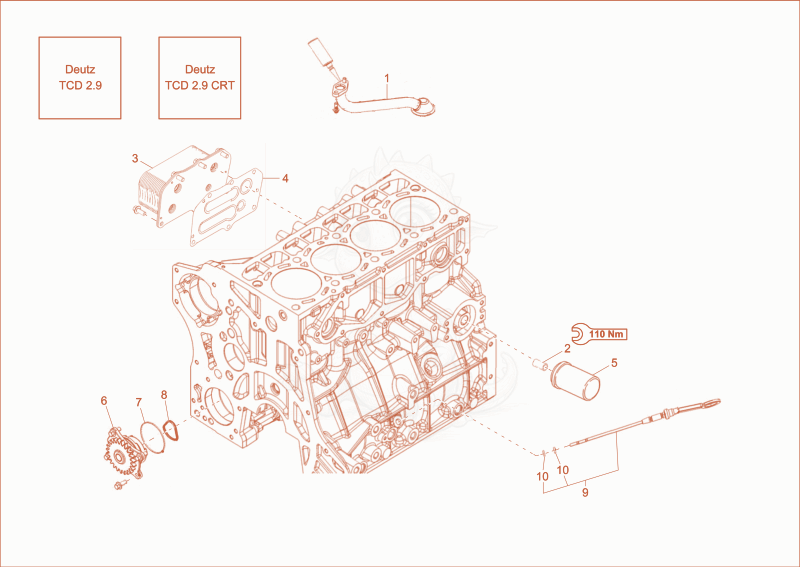

ET90 lub oil system Diagram

Exploded parts diagram of the lub oil system of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000327038Not stocked
    suction tube×1
  • 21000193962
    $6.30
    THREAD BUSHING - 1000193962×1
  • 31000327036Not stocked
    oil cooler×1
  • 41000327037
    $35.15
    Gasket - 1000327037×1
  • 51000000351Not stocked
    oil filter×1
  • 61000344093Not stocked
    lub.oil pump×1
  • 71000327034
    $30.44
    o-ring - 1000327034×1
  • 81000344096
    $34.19
    Gasket - 1000344096×1
  • 91000329451Not stocked
    oildip stick×1
  • 101000326229
    $12.62
    Ring - 1000326229×2
