ET90

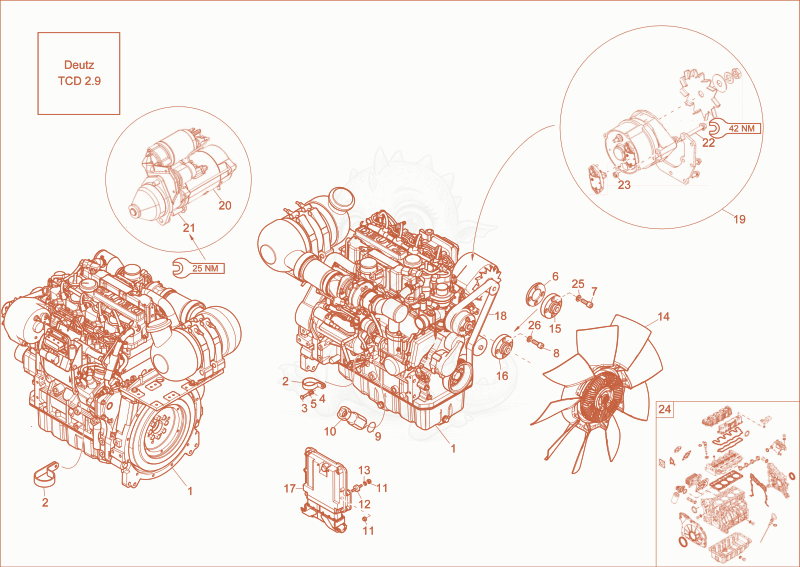

ET90 diesel engine Diagram

Exploded parts diagram of the diesel engine of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000323556
    $32,953.92
    DIESEL ENGINE TCD 2.9 - 1000323556×1
  • 21000083248
    $4.47
    hose clamp RSGU 1 23/20 - 1000083248×2
  • 31000013008Not stocked
    hex screw×1
  • 41000015431Not stocked
    washer×1
  • 51000015437Not stocked
    lock washer×1
  • 61000347533
    $7.82
    washer - 1000347533×1
  • 71000099330
    $2.07
    cheese head screw - 1000099330×4
  • 81000085497
    $0.90
    cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×4
  • 91000083620
    $1.16
    o-ring - 1000083620×1
  • 101000336789Not stocked
    filler pipe×1
  • 111000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×8
  • 121000151465
    $4.13
    METAL- RUBBER BUFFER - 1000151465×4
  • 131000015430Not stocked
    u-washer×4
  • 141000172171
    $579.80
    Fan 1000172171×1
  • 151000338211
    $61.18
    adapter - 1000338211×1
  • 161000347434Not stocked
    adapter ventilator×1
  • 171000328949Not stocked
    Control unit×1
  • 181000329459Not stocked
    flat belt×1
  • 191000343825
    $405.88
    GENERATOR - 1000343825×1
  • 201000329460
    $577.78
    starter - 1000329460×1
  • 211000343826Not stocked
    hex screw×2
  • 221000329186
    $19.33
    Bolt - 1000329186×2
  • 231000329188
    $6.40
    Nut - 1000329188×1
  • 241000343824Not stocked
    seal kit×1
  • 251000094995
    $0.93
    Nord-Lock disc NL8 - 1000094995×4
  • 261000015437Not stocked
    lock washer×4
