ET90

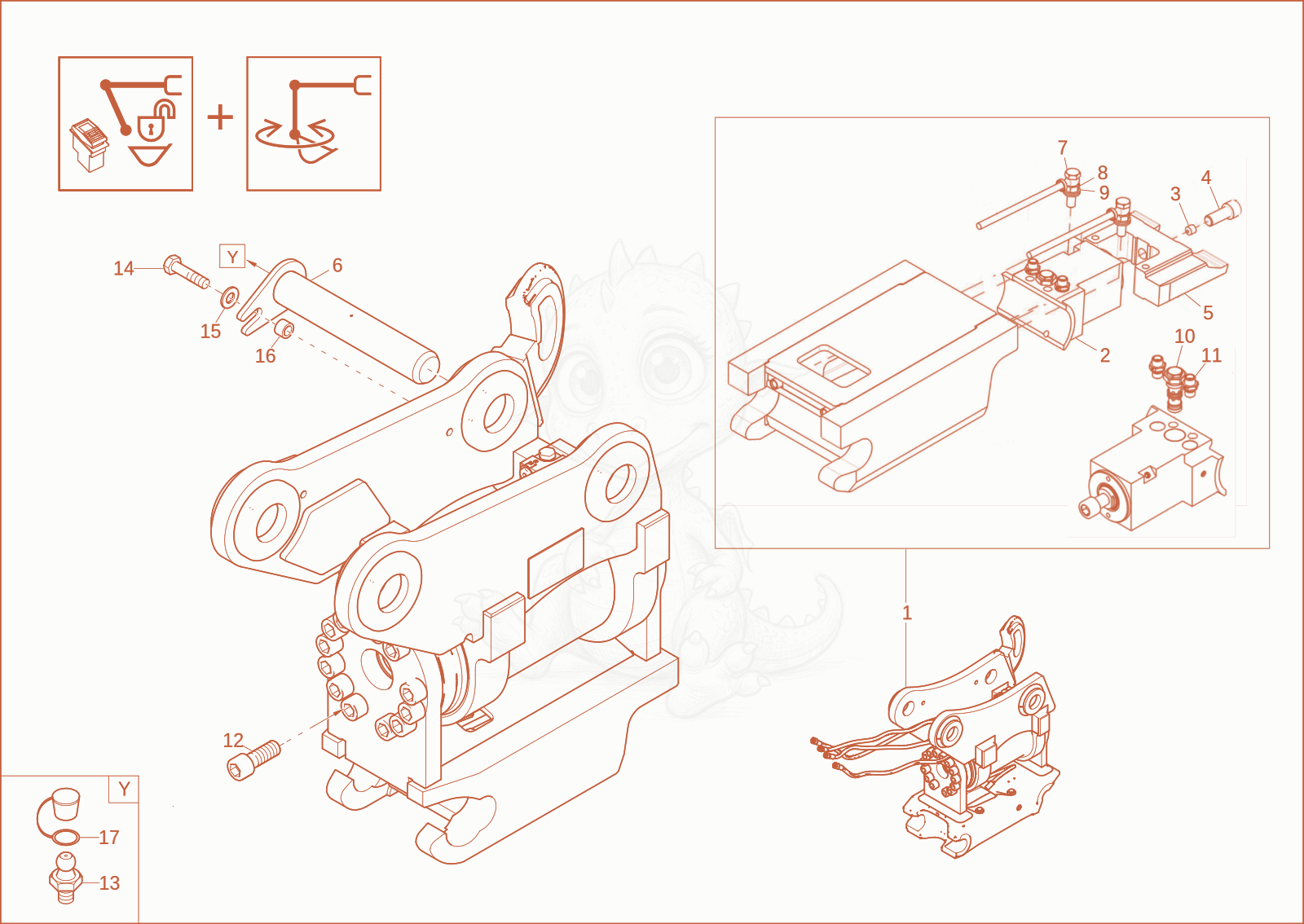

ET90 quick hitch (option) Diagram

Exploded parts diagram of the quick hitch (option) of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000454334Not stocked
    POWERTILT×1
  • 21000466474Not stocked
    hydraulic cylinder×1
  • 31000466408
    $32.43
    Bolt - 1000466408×1
  • 41000466410
    $17.45
    screw - 1000466410×1
  • 51000466415
    $477.41
    SLIDER - 1000466415×1
  • 61000396308
    $195.48
    PIN - 1000396308×2
  • 71000466411
    $11.29
    screw - 1000466411×2
  • nut - 1000466412×2
  • washer - 1000466413×4
  • 101000466417Not stocked
    non return valve×1
  • 111000466418Not stocked
    screw joint×2
  • 121000423302
    $17.82
    SCREW - 1000423302×14
  • 131000015476Not stocked
    grease nipple×2
  • 141000015381Not stocked
    hex screw×2
  • 151000085613
    $0.10
    washer - 1000085613×2
  • 161000154661
    $3.75
    WASHER - 1000154661×2
  • 171000015480Not stocked
    cap grease nipple×2
