ET90

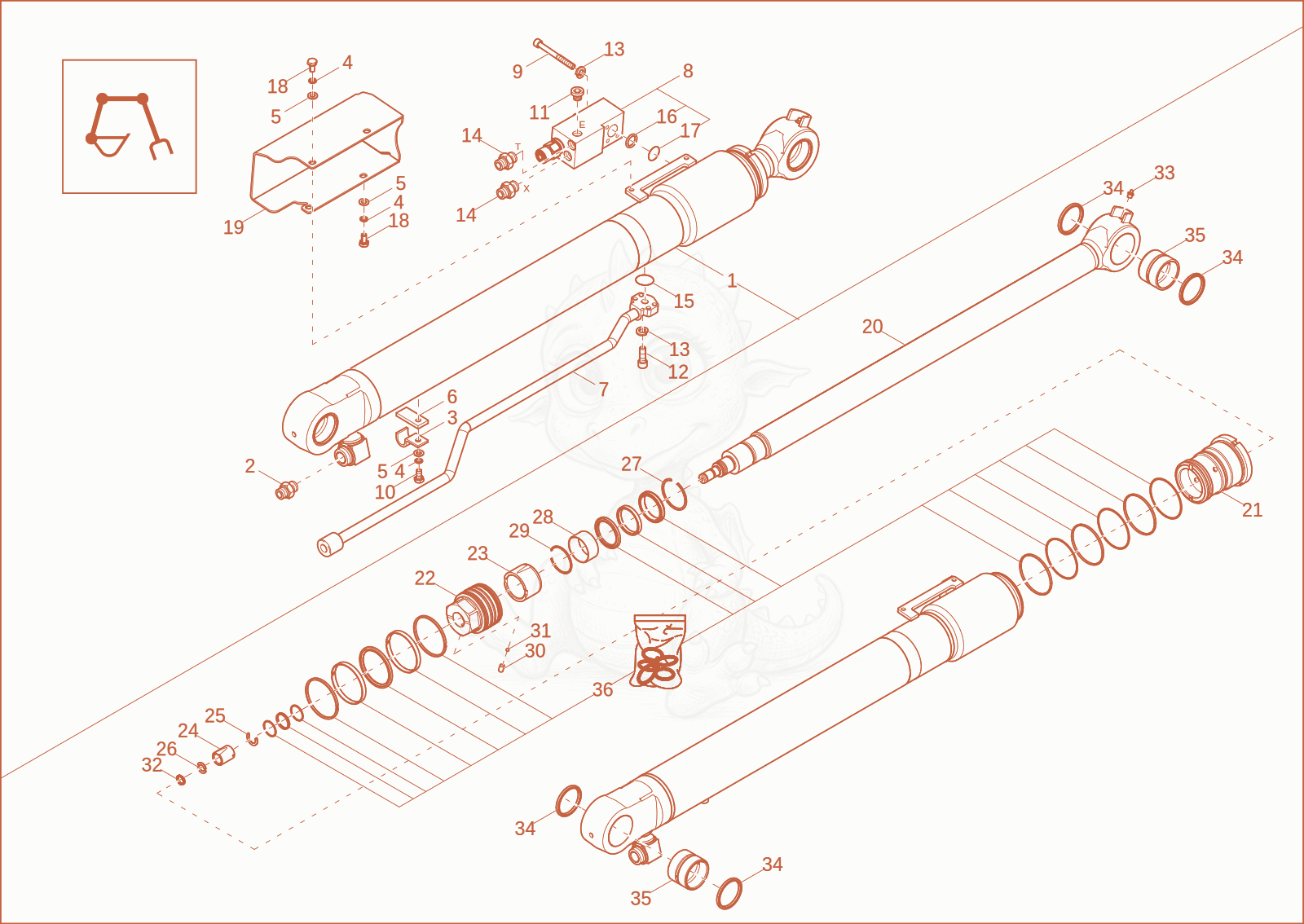

ET90 DIPPER ARM CYLINDER (OPTION) Diagram
- dipper arm cylinder - 1000396022×1
- GE25SR3/4" EDOMDA3C - 1000085118×1
- pipe clamp - 1000142445×1
- 41000015438Not stockedlock washer×5
- washer 10,5 A2C DIN125 - 1000015432×5
- plate - 1000144813×1
- cylinder pipes assy. - 1000142442×1
- 81000306094Not stockedhose burst valve×1
- cheese head screw - 1000085467×4
- GE25SR3/4" EDOMDA3C - 1000085118×1
- 111000022438Not stockedscrew joint×1
- cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×4
- spring washer - 1000082624×8
- 141000015490Not stockedscrew joint×2
- O-RING - 1000015678×2
- O-RING - 1000090469×1
- support ring - 1000406200×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
- 191000371380Not stockedprotection plate×1
- 201000515666Not stockedpiston rod×1
- 211000515668Not stockedguide bushing×1
- piston - 1000503655×1
- 231000515672Not stockedshock absorber×1
- 241000503680Not stockedshock absorber×1
- clamp - 1000417432×1
- 261000417434Not stockedseal ring×2
- ring - 1000503616×1
- Bushing - 1000503621×1
- 291000503617Not stockedlock ring×1
- maggotscrew - 1000503690×1
- 311000417407Not stockedsteel ball×1
- ring - 1000503615×1
- grease nipple M10x1 - 1000082805×1
- 341000503677Not stockedscraper×4
- Bushing - 1000503620×2
- 361000515676Not stockedseal kit×1
