ET90

ET90 WIRE HARNESS CHASSIS, ENGINE Diagram

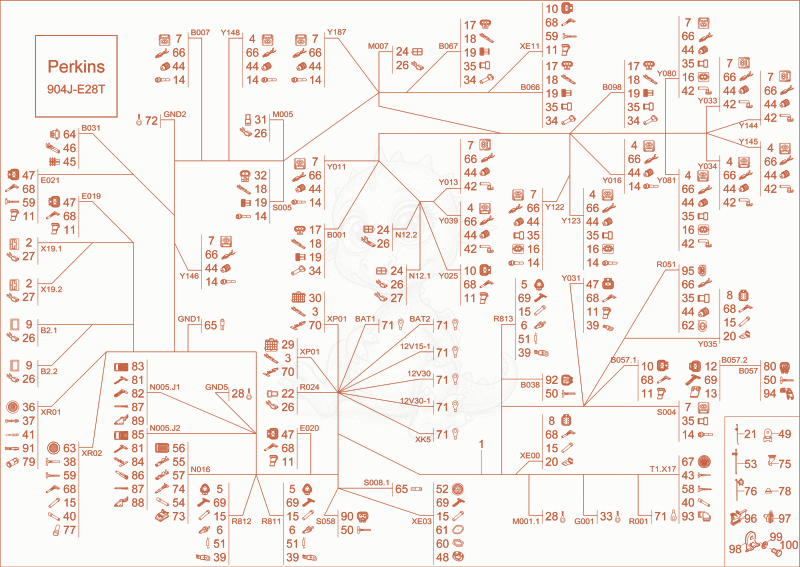

Exploded parts diagram of the WIRE HARNESS CHASSIS, ENGINE of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000438296
    $2,642.52
    wiring harness - 1000438296×1
  • 21000019583Not stocked
    plug sleeve housing×2
  • 31000027179Not stocked
    timer contact×9
  • 41000027332
    $3.80
    housing - 1000027332×6
  • 51000027394Not stocked
    pin housing×3
  • 61000027400
    $1.79
    wedge - 1000027400×3
  • 71000027410
    $2.43
    Housing - 1000027410×11
  • 81000027431Not stocked
    bushing housing×2
  • 91000027435Not stocked
    insulating sleeve×2
  • 101000027438Not stocked
    bushing housing×3
  • 111000027442Not stocked
    wedge×7
  • 121000027445Not stocked
    pin housing×1
  • 131000027449Not stocked
    housing×1
  • 141000027466Not stocked
    protecting cap×10
  • 151000030446Not stocked
    plug×11
  • 161000051981Not stocked
    pin housing×4
  • 171000051989Not stocked
    bushing housing×4
  • 181000051990Not stocked
    bushing contact×11
  • 191000052672Not stocked
    seal×11
  • 201000085032
    $1.15
    plug locking - 1000085032×2
  • 211000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×5
  • 221000095323
    $3.39
    plug sleeve housing - 1000095323×1
  • 231000095324
    $6.16
    plug housing - 1000095324×1
  • 241000095325
    $2.11
    plug sleeve housing - 1000095325×2
  • 251000095367
    $0.62
    PLUG - 1000095367×4
  • 261000095370
    $0.66
    plug sleeve - 1000095370×12
  • 271000095371Not stocked
    plug sleeve×4
  • 281000096859
    $1.08
    CABLE LUG - 1000096859×2
  • 291000098960
    $2.84
    bushing housing - 1000098960×1
  • 301000099076
    $2.90
    bushing housing - 1000099076×1
  • 311000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • 321000110449
    $2.46
    plug bushing - 1000110449×1
  • 331000110764
    $9.03
    cable lug - 1000110764×1
  • 341000126051
    $7.95
    PROTECTING CAP - 1000126051×4
  • 351000128773
    $0.32
    Plug - 1000128773×15
  • 361000146158
    $257.29
    LUG HOUSING - 1000146158×1
  • 371000147471
    $4.05
    BUSHING CONTACT - 1000147471×15
  • 381000148274
    $1.84
    bushing contact - 1000148274×19
  • 391000152864
    $11.45
    CLIP MOUNTING - 1000152864×4
  • 401000161431
    $0.66
    Plug - 1000161431×16
  • 411000162891
    $5.74
    bushing contact - 1000162891×12
  • 421000228723
    $10.08
    RUBBER CAP - 1000228723×8
  • 431000236298
    $2.30
    pin contact - 1000236298×39
  • 441000246747
    $1.41
    seal - 1000246747×34
  • 451000268165
    $0.66
    seal - 1000268165×2
  • 461000268166
    $0.64
    Tube - 1000268166×2
  • 471000270365
    $6.40
    Plug Deutsch - 1000270365×4
  • 481000277443
    $22.68
    protecting cap - 1000277443×1
  • 491000282736
    $11.39
    sockets - 1000282736×3
  • 501000283288
    $3.30
    bushing contact - 1000283288×9
  • 511000289850
    $21.27
    resistor - 1000289850×3
  • 521000298661
    $386.76
    pin housing - 1000298661×1
  • 531000301292
    $7.59
    clip - 1000301292×1
  • 541000306978Not stocked
    blind plug×17
  • 551000306992
    $0.75
    bushing - 1000306992×23
  • 561000306993
    $104.58
    PLUG - 1000306993×1
  • 571000306994
    $2.34
    bushing - 1000306994×3
  • 581000309282Not stocked
    pin contact×5
  • 591000309284Not stocked
    bushing contact×3
  • 601000312641
    $6.62
    hexagon nut - 1000312641×1
  • 611000312642Not stocked
    washer×1
  • 621000315298Not stocked
    housing×1
  • 631000333984Not stocked
    bushing housing×1
  • 641000346741Not stocked
    bushing housing×1
  • 651000346811Not stocked
    cable lug×2
  • 661000334041Not stocked
    timer contact×34
  • 671000359523Not stocked
    pin housing×1
  • 681000359612Not stocked
    plug connection×23
  • 691000362407Not stocked
    pin contact×12
  • 701000362527Not stocked
    bushing contact×16
  • 711000364917Not stocked
    cable lug×7
  • 721000365194
    $8.43
    cable lug - 1000365194×1
  • 731000371243
    $21.46
    cap - 1000371243×1
  • 741000371244Not stocked
    bushing contact×5
  • 751000372106
    $6.44
    bracket - 1000372106×1
  • 761000372108Not stocked
    cable strap×3
  • 771000385705Not stocked
    protecting cap×1
  • 781000387428
    $10.62
    sleeve - 1000387428×1
  • 791000395385Not stocked
    plug housing×1
  • 801000403611Not stocked
    bushing housing×1
  • 811000403627Not stocked
    bushing contact×46
  • 821000403628Not stocked
    bushing contact×6
  • 831000403630Not stocked
    bushing housing×1
  • 841000403631Not stocked
    bushing contact×15
  • 851000403632Not stocked
    bushing housing×1
  • 861000403634Not stocked
    blind plug×5
  • 871000403635Not stocked
    blind plug×56
  • 881000403638Not stocked
    protecting cap×1
  • 891000403639Not stocked
    protecting cap×1
  • 901000404022Not stocked
    bushing housing×1
  • 911000407308Not stocked
    bushing contact×1
  • 921000410706Not stocked
    bushing housing×1
  • 931000415736Not stocked
    protecting cap×1
  • 941000444247
    $28.12
    AMPSEAL 2POL plug cap 90°_ - 1000444247×1
  • 951000444373
    $14.00
    FEP MALE 2 POL housing - 1000444373×1
  • 961000293439Not stocked
    clip×1
  • 971000276514
    $3.32
    clip - 1000276514×2
  • 981000378385Not stocked
    sockets×3
  • 991000015431Not stocked
    washer×3
  • 1001000019136Not stocked
    hex screw×3
