ET90

ET90 TRAVELLING GEAR INSTALLATION (Option) Diagram

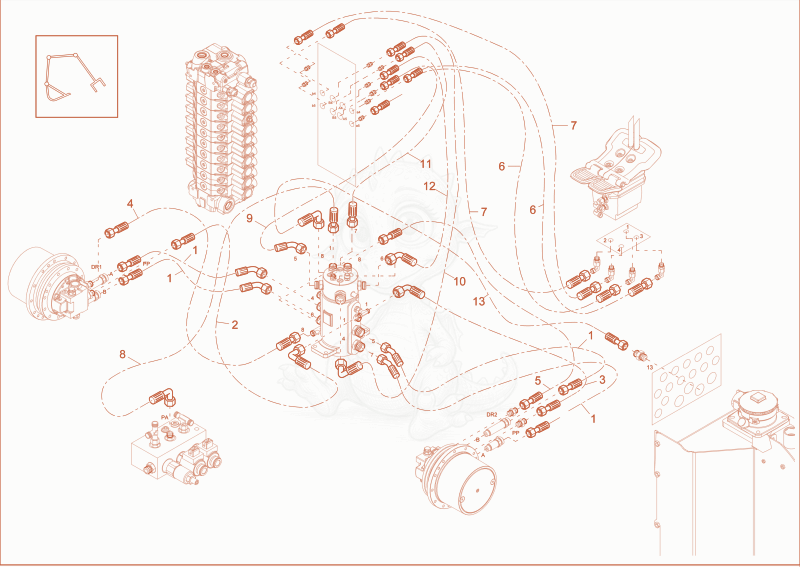

Exploded parts diagram of the TRAVELLING GEAR INSTALLATION (Option) of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000334953Not stocked
    Hose×4
  • 21000348529Not stocked
    Hose×1
  • 31000348530Not stocked
    Hose×1
  • 41000348515Not stocked
    Hose×1
  • 51000348517Not stocked
    Hose×1
  • 61000013115Not stocked
    Hose×2
  • 71000076396
    $15.17
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1400 0 - 1000076396×2
  • 81000076545
    $38.45
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2000 0 - 1000076545×1
  • 91000323807Not stocked
    Hose×1
  • 101000323808Not stocked
    Hose×1
  • 111000323809Not stocked
    Hose×1
  • 121000323810Not stocked
    Hose×1
  • 131000076837
    $36.56
    SLHYDR 1SC 10 PN12 90 PN12 0 L1000 0 - 1000076837×1
