ET90

ET90 CONTROL VALVE 1 (OPTION) Diagram

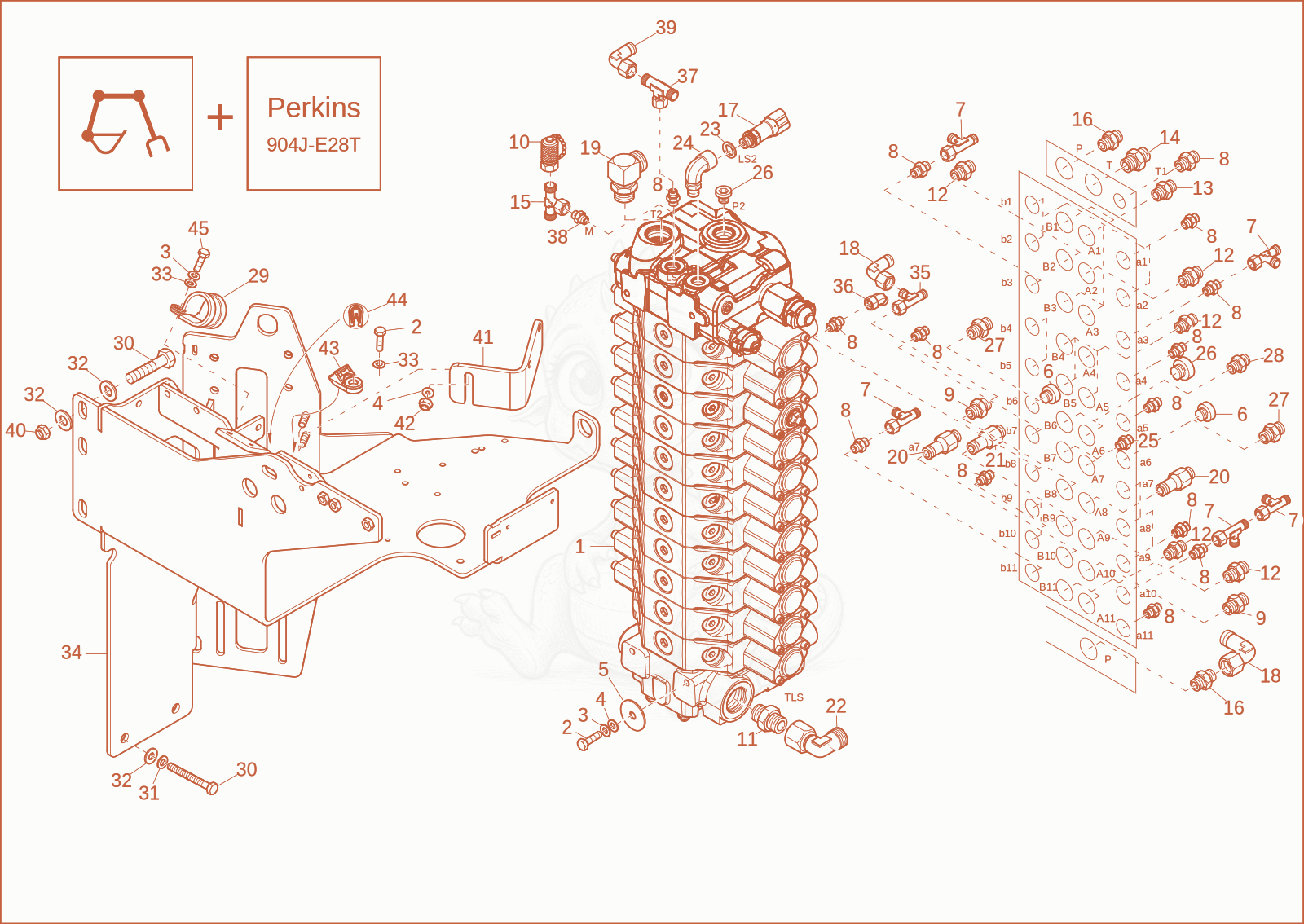

Exploded parts diagram of the CONTROL VALVE 1 (OPTION) of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000449095
    $8,876.60
    control block - 1000449095×1
  • 21000013008Not stocked
    hex screw×5
  • 31000015437Not stocked
    lock washer×4
  • 41000013027Not stocked
    washer×6
  • 51000156073
    $6.56
    rubber shock absorber - 1000156073×4
  • 61000022438Not stocked
    screw joint×2
  • 71000015515Not stocked
    screw joint×5
  • 81000015488Not stocked
    screw joint×22
  • 91000015549Not stocked
    screw joint×1
  • 101000263904
    $36.85
    MINIMESS POINT - 1000263904×1
  • 111000085069
    $27.33
    E28LR3/4" EDOMDA3C - 1000085069×1
  • 121000015497Not stocked
    screw joint×9
  • 131000015494Not stocked
    screw joint×4
  • 141000085069
    $27.33
    E28LR3/4" EDOMDA3C - 1000085069×1
  • 151000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
  • 161000020908Not stocked
    screw joint×2
  • 171000312658Not stocked
    pressure sensor×1
  • 181000085093
    $17.22
    EW20SOMDA3C - 1000085093×1
  • 191000373699Not stocked
    screw joint×1
  • 201000334814Not stocked
    screw joint×2
  • 211000334820Not stocked
    screw joint×1
  • 221000085091
    $31.25
    EW28LOMDA3C - 1000085091×1
  • 231000124948
    $12.46
    screw seal - 1000124948×1
  • 241000251624
    $35.82
    WEE1/4"-1/4" - 1000251624×1
  • 251000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 261000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×3
  • 271000015488Not stocked
    screw joint×2
  • 281000015497Not stocked
    screw joint×2
  • 291000062589Not stocked
    pipe clamp×1
  • 301000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×5
  • 311000015438Not stocked
    lock washer×2
  • 321000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 331000015431Not stocked
    washer×2
  • 341000416002Not stocked
    bracket valve×1
  • 351000021216Not stocked
    screw joint×1
  • 361000187907
    $30.16
    EV08LA3C-EO45° - 1000187907×1
  • 371000015515Not stocked
    screw joint×1
  • 381000015490Not stocked
    screw joint×1
  • 391000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 401000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 411000358131
    $19.02
    bracket - 1000358131×1
  • 421000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 431000282738
    $2.17
    sockets - 1000282738×1
  • 441000151037
    $7.02
    edge protection - 1000151037×0.5
  • 451000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
