ET90

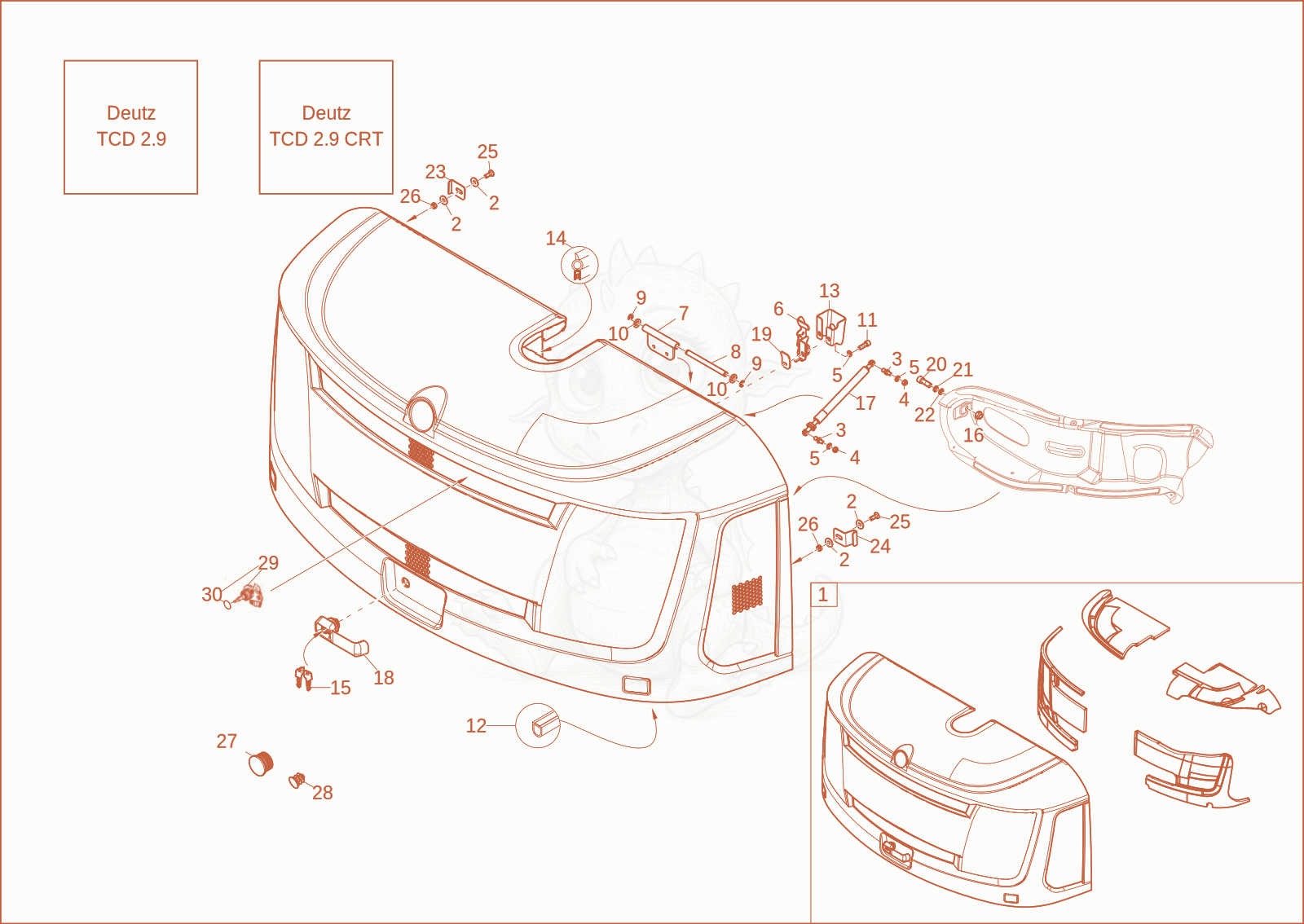

ET90 engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson ET90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000441186
    $7,582.97
    BONNET - 1000441186×1
  • 21000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×4
  • 31000238291
    $6.26
    ball plug - 1000238291×2
  • 41000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 51000015431Not stocked
    washer×3
  • 61000152576
    $114.63
    LOCK - 1000152576×1
  • 71000307270
    $65.69
    HINGE - 1000307270×2
  • 81000307282Not stocked
    hinge pin×2
  • 91000307281Not stocked
    lock washer×4
  • 101000049219Not stocked
    washer×4
  • 111000019593Not stocked
    cheese head screw×2
  • 121000328098
    $92.57
    adhesive seal - 1000328098×2.1
  • 131000332595Not stocked
    cover lock×1
  • 141000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×0.37
  • 151000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 161000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 171000506894Not stocked
    gas strut×1
  • 181000012882
    $49.53
    handle - 1000012882×1
  • 191000326357Not stocked
    feeler×1
  • 201000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×1
  • 211000015436Not stocked
    lock washer×1
  • 221000015430Not stocked
    u-washer×1
  • 231000372309
    $29.69
    angle - 1000372309×1
  • 241000372310
    $42.75
    angle - 1000372310×1
  • 251000326518Not stocked
    flat head screw×2
  • 261000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 271000315345Not stocked
    plug×1
  • 281000068993Not stocked
    plug×2
  • 291000282375
    $173.56
    Sensor - 1000282375×1
  • 301000343890Not stocked
    seal ring×1
