SM100

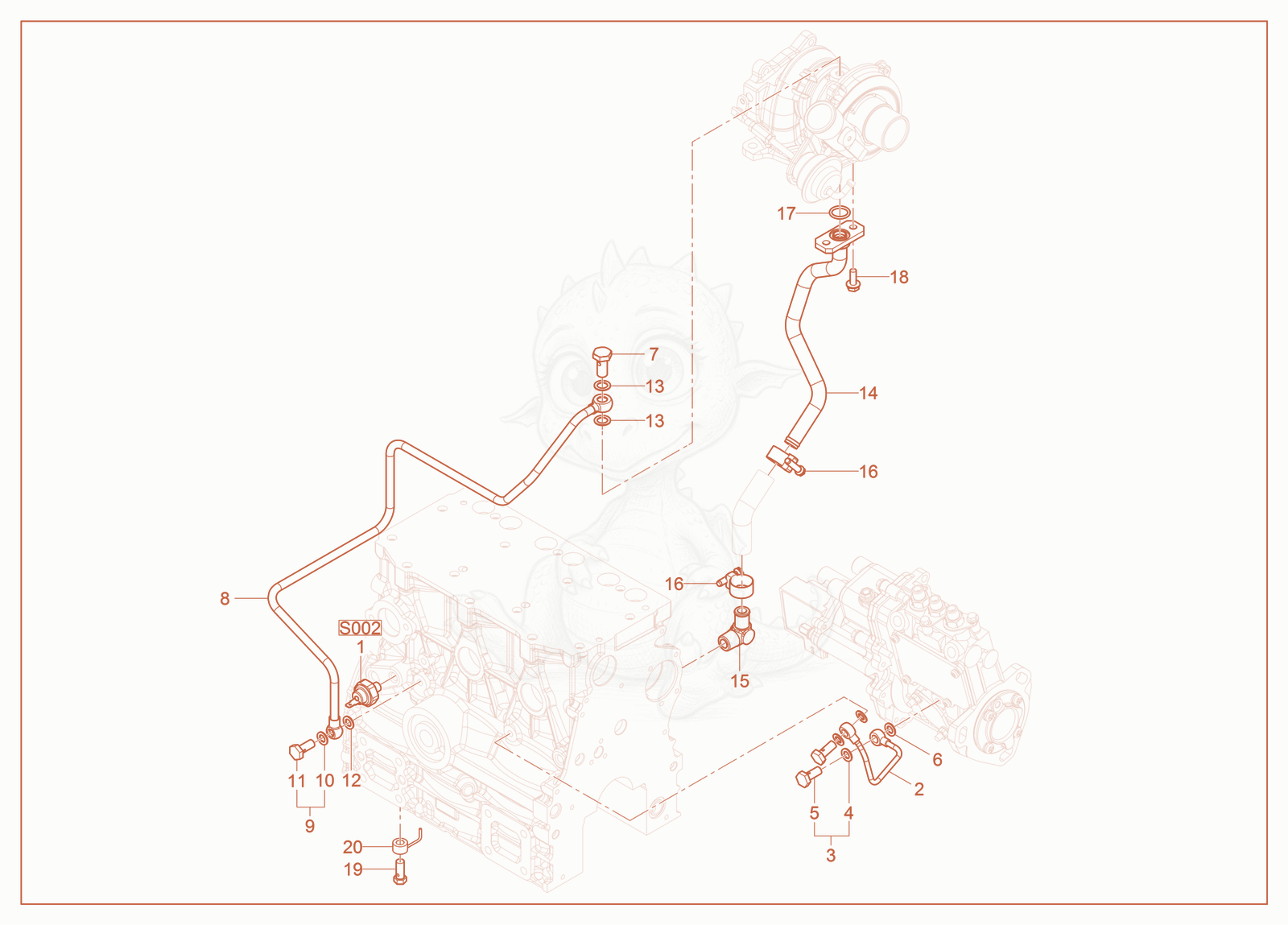

SM100 Oil Pipe Diagram

Exploded parts diagram of the Oil Pipe of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000244102
    $11.01
    OIL PRESSURE SWITCH - 1000244102×1
  • 21000148812
    $70.40
    pipe line - 1000148812×1
  • 35200020093Not stocked
    Bolt with washer×2
  • 45200019860Not stocked
    Seal×2
  • 55200020095Not stocked
    Bolt×2
  • 65200019860Not stocked
    Seal×2
  • 71000143643
    $9.70
    Banjo bolt - 1000143643×1
  • 81000464329
    $135.81
    leakoil line 3TNV80FT - 1000464329×1
  • 85000073622
    $2.07
    SCREW M8 X 12,HX.FLANGE - 5000073622×1
  • 95200020093Not stocked
    Bolt with washer×1
  • 105200019860Not stocked
    Seal×1
  • 115200020095Not stocked
    Bolt×1
  • 125200019860Not stocked
    Seal×1
  • 131000085207
    $1.57
    seal ring - 1000085207×2
  • 141000464330
    $123.22
    LEAKOIL LINE 3TNV80 - 1000464330×1
  • 151000074226
    $34.14
    ANGLE SCREW JOINT - 1000074226×1
  • 161000073606
    $6.66
    HOSE CLAMP - 1000073606×2
  • 171000181790
    $10.43
    O-ring - 1000181790×1
  • 185000073659
    $2.07
    SCREW M6 X 16,HX.FLANGE - 5000073659×2
  • 191000464333
    $45.24
    non return valve - 1000464333×3
  • 201000464334
    $45.24
    Injection nozzle piston - 1000464334×3
