SM100

SM100 Carriage Diagram

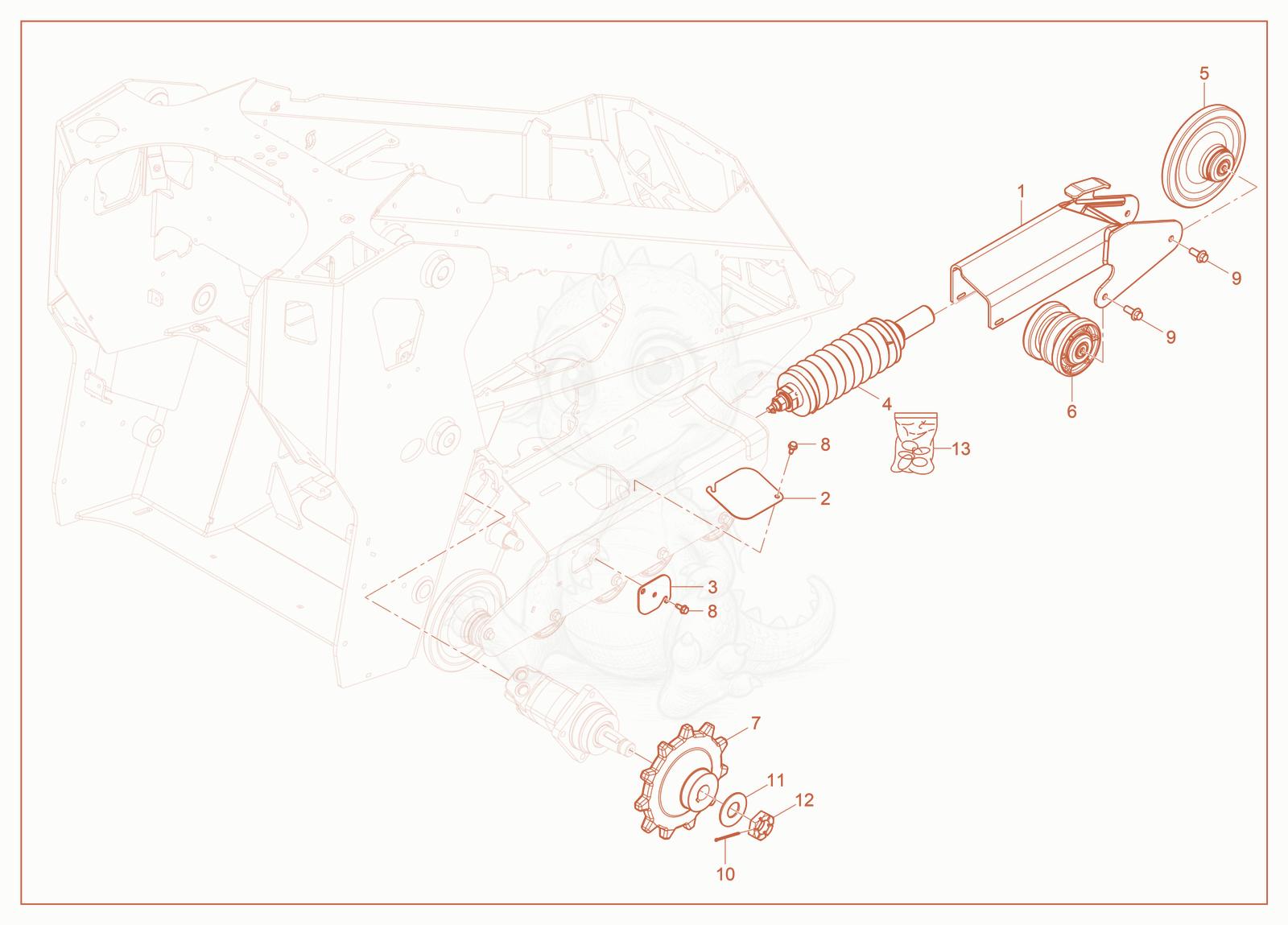

Exploded parts diagram of the Carriage of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000460441
    $246.10
    WELDMENT PUSHER NON SUSP LH 2 - 1000460441×1
  • 11000460438
    $246.10
    WELDMENT PUSHER NON SUSP RH 2 - 1000460438×1
  • 21000429004
    $6.38
    COVER TENSIONER - 1000429004×2
  • 31000371268
    $8.86
    COVER DRAIN HOLE-PAINTED - 1000371268×1
  • 41000440191
    $530.63
    TENSIONER GREASE UTL - 1000440191×2
  • 41000467952
    $13.36
    non return valve - 1000467952×2
  • 51000427041
    $256.28
    Utlidlernomaintenance 1000427041×4
  • 61000427047
    $212.75
    Utlrollernomaintenance 1000427047×10
  • 71000424384
    $154.98
    Sprocketdriveutl 1000424384×2
  • 85100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×6
  • 91000555317Not stocked
    BLT DIN6921-M12x30-12.9 C16 LOCTITE 202×28
  • 101000491435
    $1.85
    PIN COTTER 4 X 71 - 1000491435×2
  • 111000424545
    $19.07
    WASHER SPROCKET - 1000424545×2
  • 121000440185
    $12.79
    UTL DRIVE MOTOR CASTLE NUT - 1000440185×2
  • 131000553651Not stocked
    SEAL KIT×1
