SM100 Fuel Injection Equipment Diagram

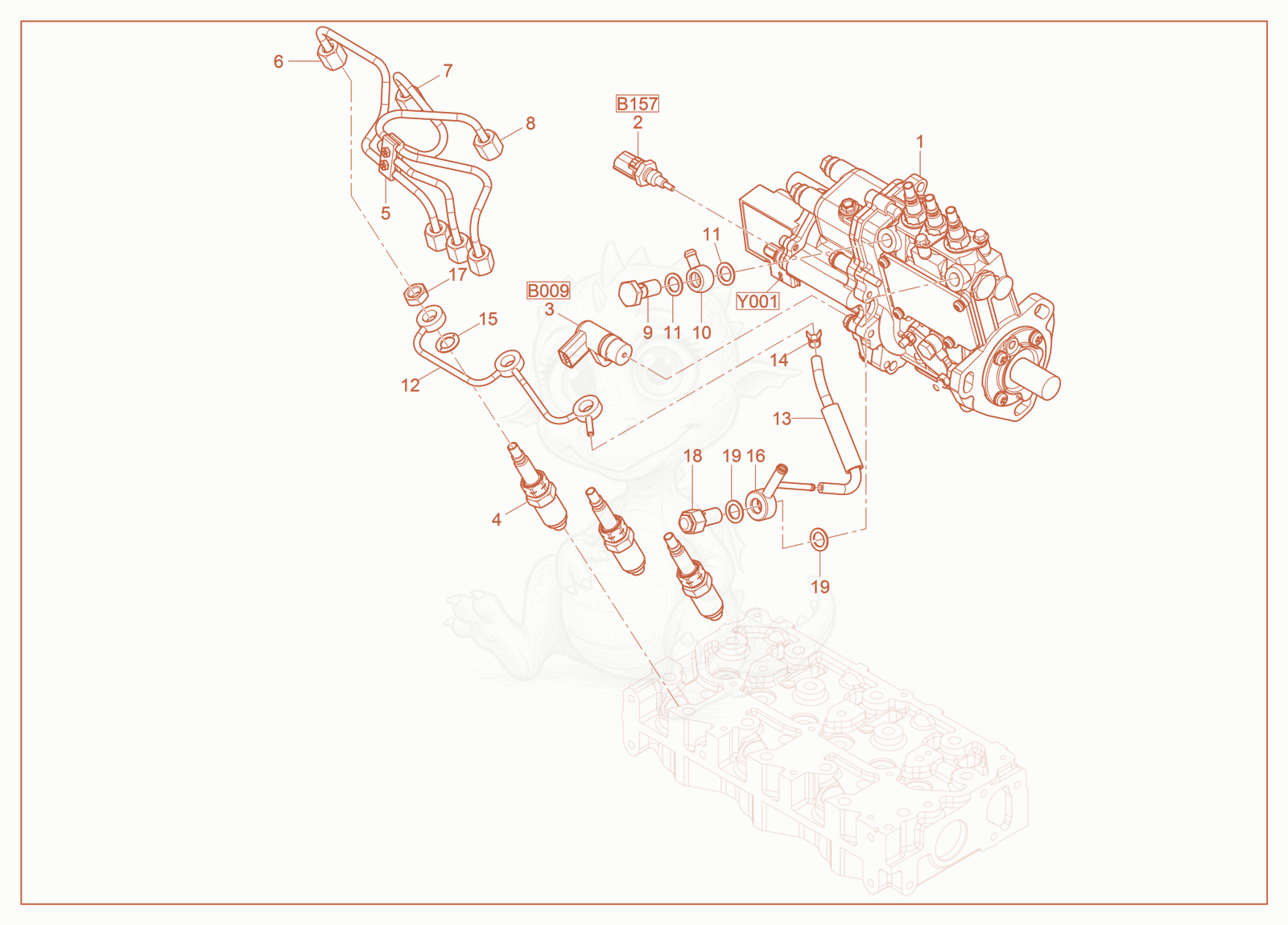

Exploded parts diagram of the Fuel Injection Equipment of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000466928
    $3,581.26
    INJECTION PUMP - 1000466928×1
  • 21000466929
    $85.61
    Sensor-Oil Temp - 1000466929×1
  • 31000185049
    $117.54
    Sensor - 1000185049×1
  • 41000293718
    $220.87
    injection nozzle - 1000293718×3
  • 55200020199Not stocked
    Nozzle retainer×1
  • 55200020200Not stocked
    Bolt×1
  • 61000293720
    $104.89
    injection line - 1000293720×1
  • 71000293771
    $104.89
    injection line - 1000293771×1
  • 81000293772
    $104.89
    injection line - 1000293772×1
  • 91000085214
    $14.09
    BANJO BOLT - 1000085214×1
  • 101000073612
    $24.22
    ring piece - 1000073612×1
  • 115200020161Not stocked
    Washer×2
  • 121000464345
    $112.79
    Pipe return 3TNV80FT - 1000464345×1
  • 131000466930
    $27.93
    Pipe return 3TNV80FT - 1000466930×1
  • 141000085212
    $4.55
    hose clamp - 1000085212×2
  • 151000148827
    $14.15
    SEAL RING - 1000148827×3
  • 161000464344
    $43.15
    reflux line 3TNV80FT - 1000464344×1
  • 171000064579
    $3.06
    HEX NUT - 1000064579×3
  • 181000148829Not stocked
    Non-return valve×1
  • 195200020161Not stocked
    Washer×2
