SM100

SM100 Chassis Covers Diagram

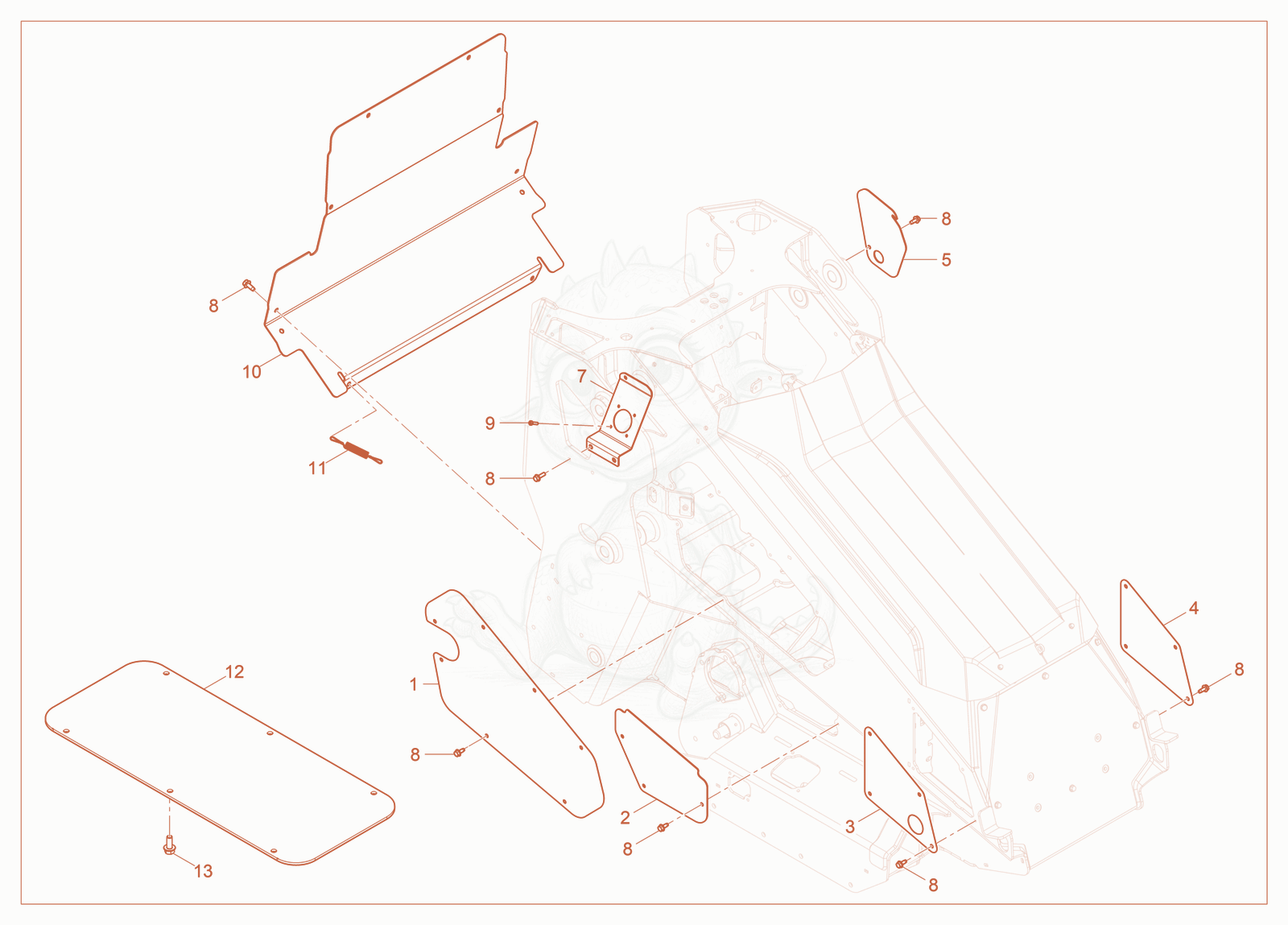

Exploded parts diagram of the Chassis Covers of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000460894
    $101.65
    Screen Shroud 1000460894×2
  • 21000505401
    $25.98
    PLATE COVER - 1000505401×2
  • 31000460953
    $38.67
    SCREEN COVER RH - 1000460953×1
  • 41000460954
    $30.99
    SCREEN COVER LH - 1000460954×1
  • 51000463993
    $17.26
    COVER HYD TANK - 1000463993×1
  • 71000429355
    $17.77
    PLATE-FUEL FILL - 1000429355×1
  • 85100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×41
  • 91000342707
    $0.78
    SCREW 12-11 X 1 PLASTITE 48-2 ZINC - 1000342707×4
  • 101000463992
    $281.46
    Panelrearaccess 1000463992×1
  • 111000516519
    $13.30
    TETHER PANEL - 1000516519×1
  • 121000531127Not stocked
    Plate×1
  • 131000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×6
