SM100

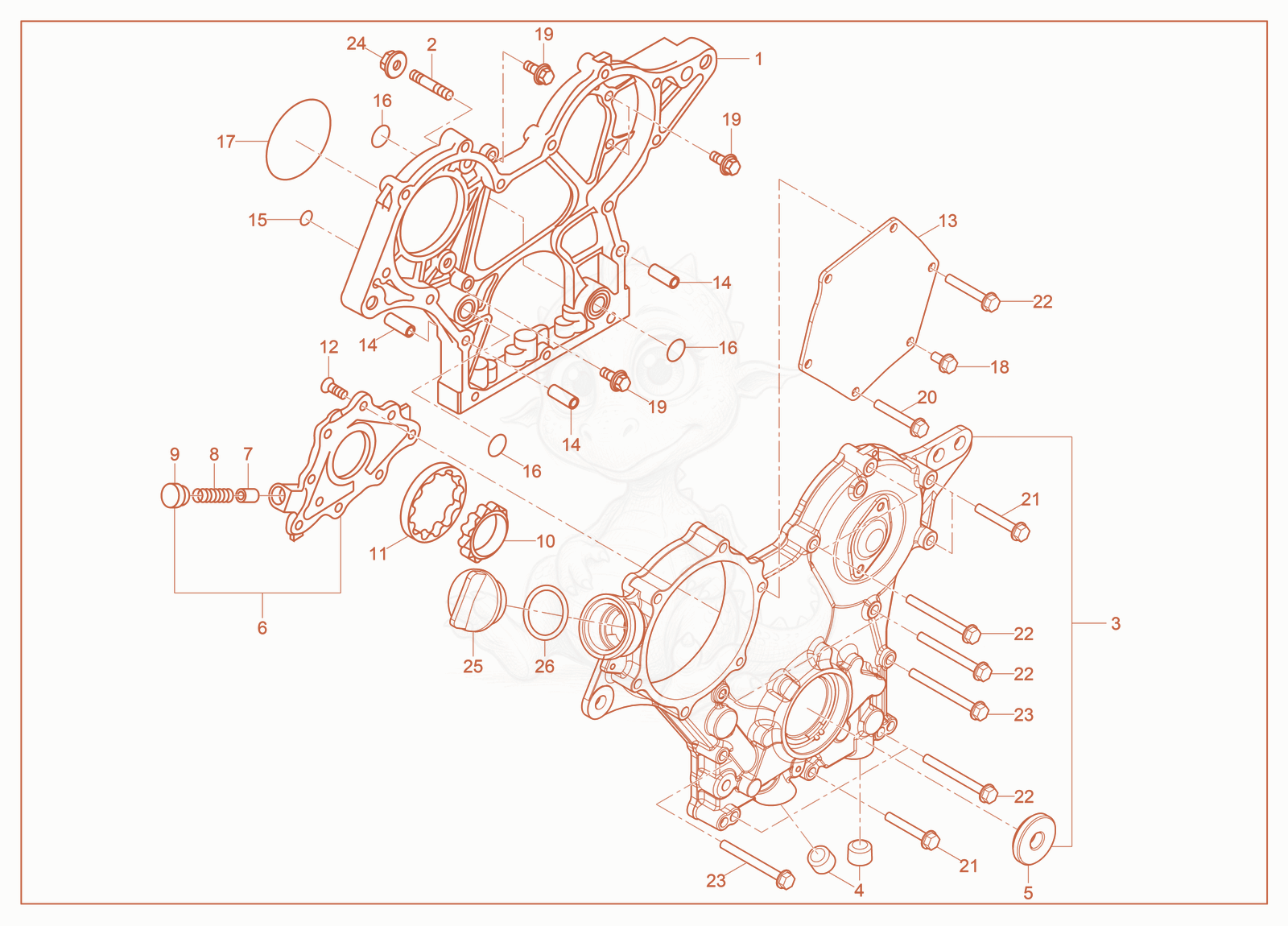

SM100 Crankshaft Housing Diagram

Exploded parts diagram of the Crankshaft Housing of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000159361
    $961.69
    gear box housing - 1000159361×1
  • 21000148778
    $3.97
    Stud bolt - 1000148778×3
  • 31000293785
    $523.74
    Gearbox 1000293785×1
  • 41000063420
    $5.42
    lock screw - 1000063420×2
  • 51000273615
    $27.36
    rotary shaft seal - 1000273615×1
  • 61000148780
    $179.51
    COVER - 1000148780×1
  • 71000125229
    $18.79
    VALVE - 1000125229×1
  • 81000148781
    $6.43
    SPRING - 1000148781×1
  • 91000125241
    $11.37
    PLUG - 1000125241×1
  • 101000148782
    $90.92
    GEAR - 1000148782×1
  • 111000148783
    $82.11
    GEAR - 1000148783×1
  • 121000125003
    $1.82
    SCREW - 1000125003×8
  • 131000312840
    $47.54
    PLATE - 1000312840×1
  • 141000107619
    $5.81
    PIPE LINE - 1000107619×4
  • 151000107571
    $3.97
    O-RING - 1000107571×1
  • 161000148784
    $3.37
    O-RING - 1000148784×3
  • 175200019858Not stocked
    O-ring×1
  • 185000119897
    $2.04
    BOLT-M6 X 12 - 5000119897×1
  • 195000073659
    $2.07
    SCREW M6 X 16,HX.FLANGE - 5000073659×4
  • 205200020114Not stocked
    Bolt×4
  • 215200020114Not stocked
    Bolt×3
  • 221000107620Not stocked
    Screw×7
  • 235100031850
    $2.39
    BOLT-M6 X 65 - 5100031850×2
  • 245200019999Not stocked
    Nut×3
  • 255200019854Not stocked
    Cover×1
  • 265200019861Not stocked
    O-ring×1
