SM100

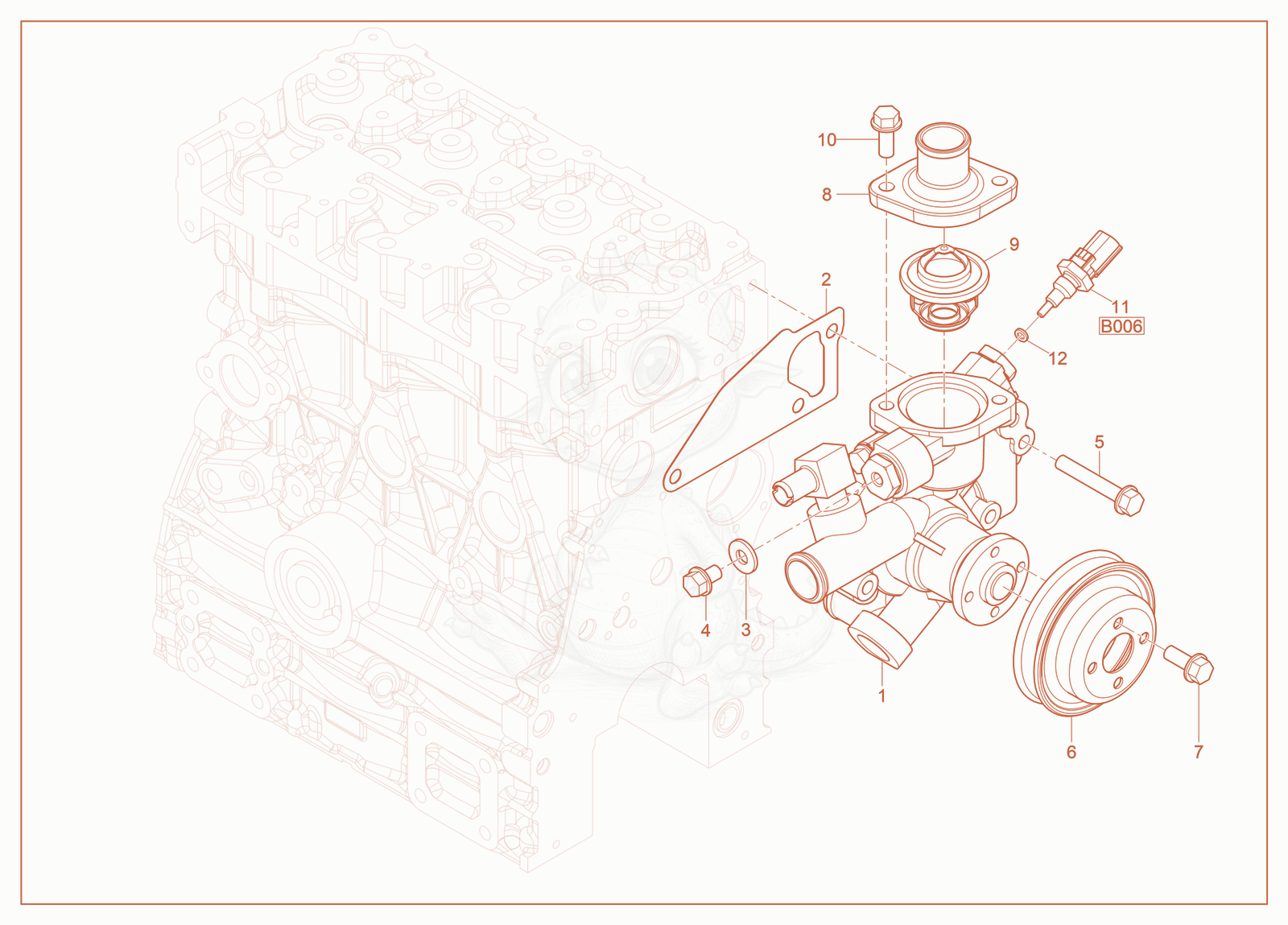

SM100 Thermostat Diagram

Exploded parts diagram of the Thermostat of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000148814
    $42.66
    ENGINE GASKET - 1000148814×1
  • 11000466649
    $897.46
    PUMP-WATER - 1000466649×1
  • 21000148818
    $18.22
    SEAL WATER PUMP - 1000148818×1
  • 35000119882
    $2.07
    GASKET - 5000119882×1
  • 45000073622
    $2.07
    SCREW M8 X 12,HX.FLANGE - 5000073622×1
  • 55200019883Not stocked
    Hexagonal flange head screw×3
  • 61000149740
    $70.52
    Belt pulley - 1000149740×1
  • 75000119897
    $2.04
    BOLT-M6 X 12 - 5000119897×4
  • 81000073611
    $84.47
    THERMOSTAT HOUSING - 1000073611×1
  • 91000148389
    $82.36
    THERMOSTAT - 1000148389×1
  • 105200019993Not stocked
    Bolt×2
  • 111000183912
    $73.10
    temperature switch - 1000183912×1
  • 125200020161Not stocked
    Washer×1
