SM100

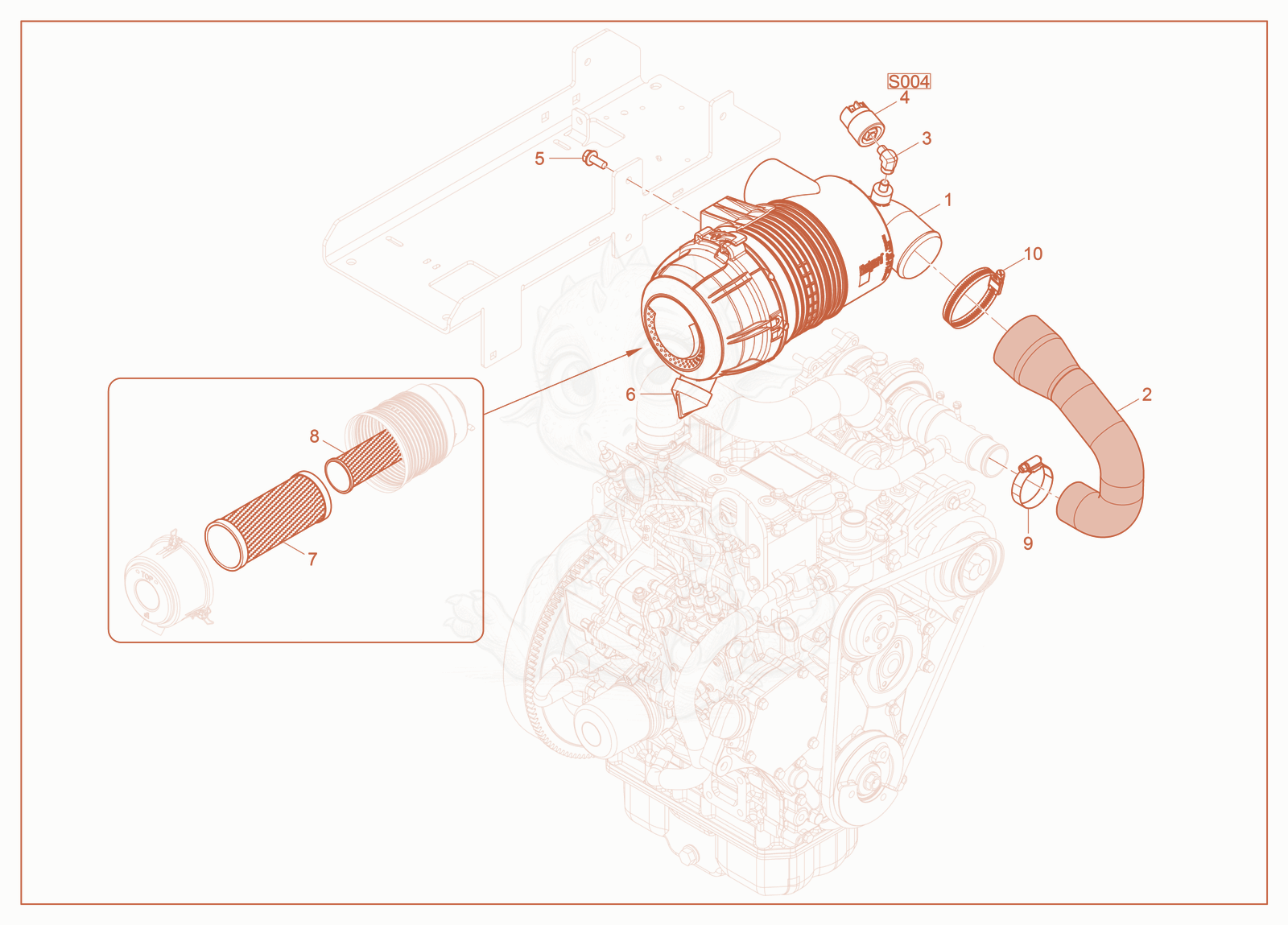

SM100 Air Cleaner Diagram

Exploded parts diagram of the Air Cleaner of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000431766
    $123.59
    Filteraircleaner 1000431766×1
  • 21000424994
    $29.14
    HOSE INTAKE 80FT - 1000424994×1
  • 31000343395
    $6.88
    FITTING ELBOW NPT - 1000343395×1
  • 41000340593
    $32.70
    SWITCH INTAKE RESTRICTION - 1000340593×1
  • 51000343396
    $0.18
    BOLT M8 X 20 FLANGED 8.8 ZINC - 1000343396×2
  • 61000434868
    $8.40
    dustexhaust valve - 1000434868×1
  • 71000467407
    $48.83
    Primary filter element - 1000467407×1
  • 81000467408
    $35.81
    Secondary filter element - 1000467408×1
  • 91000364604
    $1.54
    CLAMP WORM 32-51 - 1000364604×1
  • 101000466938
    $2.85
    CLAMP WORM 52-76 - 1000466938×1
