SM100

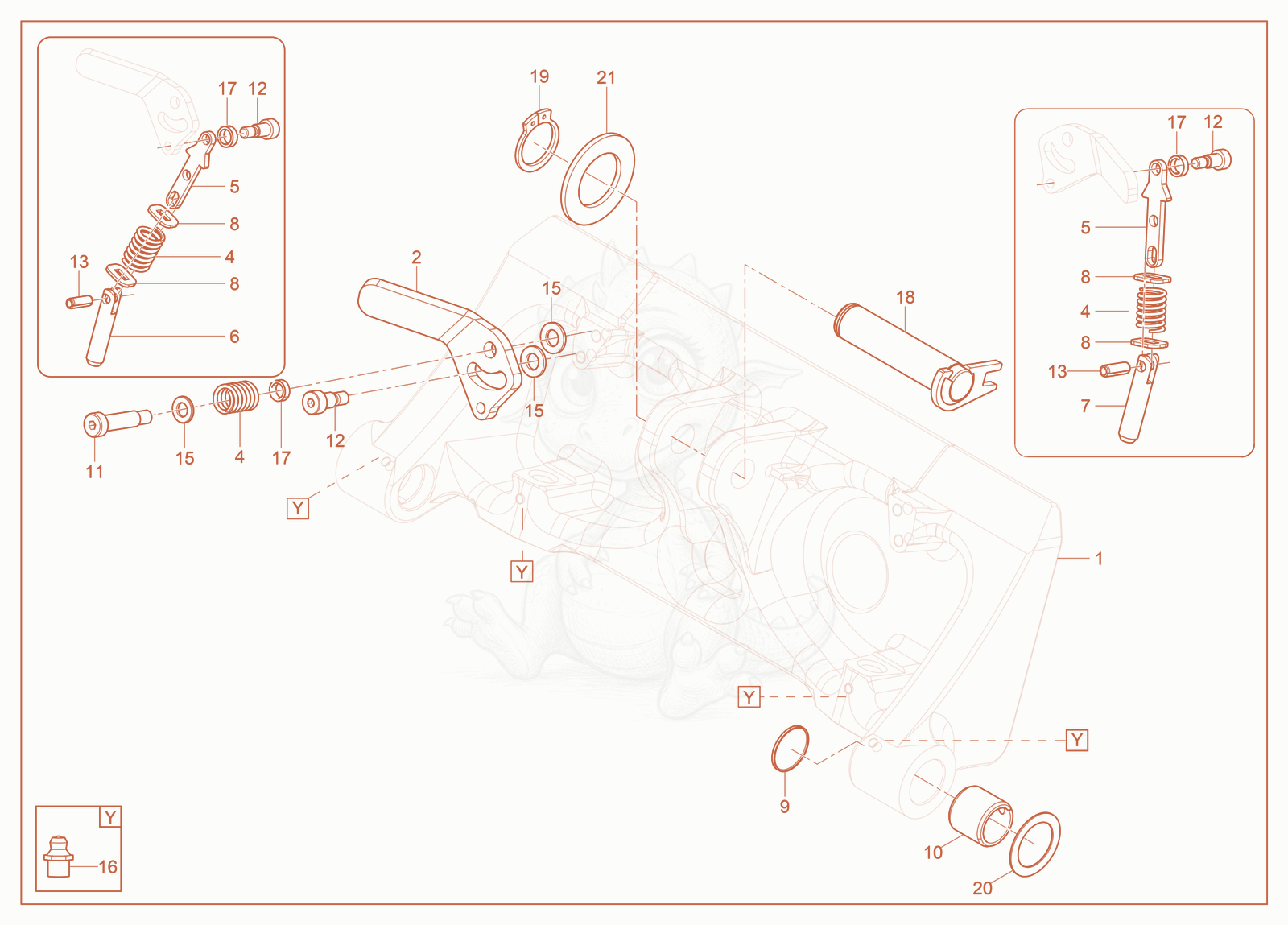

SM100 Coupler Diagram

Exploded parts diagram of the Coupler of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000485403
    $493.36
    Couplermachined 1000485403×1
  • 21000424040
    $17.63
    HANDLE COUPLER ATTACH RH - 1000424040×1
  • 21000444209
    $15.28
    HANDLE COUPLER ATTACH LH - 1000444209×1
  • 41000440200
    $4.90
    SPRING COUPLER UTL - 1000440200×4
  • 51000424033
    $9.90
    LINK COUPLER ATTACH - 1000424033×2
  • 61000424038
    $20.08
    PIN COUPLER ATTACH - 1000424038×1
  • 71000424038
    $20.08
    PIN COUPLER ATTACH - 1000424038×1
  • 81000440199
    $1.16
    PLATE COUPLER SPRING UTL - 1000440199×4
  • 91000473085
    $9.02
    PLUG EXPANSION 1.5in - 1000473085×2
  • 101000424035
    $7.62
    WEAR BUSHING - 1000424035×2
  • 111000343319
    $3.80
    BOLT M12 X 40 SHOULDER 12.9 MAGNI 501 - 1000343319×2
  • 121000464327
    $5.96
    BOLT M12 X 15 SHOULDER 12.9 MAGNI 501 - 1000464327×4
  • 131000340315
    $1.19
    PIN M10 X 30 COILED HEAVY DUTY - 1000340315×2
  • 155000010620
    $0.26
    WASHER B13 FLAT - 5000010620×6
  • 161000343269
    $0.80
    ZERK GREASE - 1000343269×4
  • 171000343271
    $3.50
    WASHER WEDGE - 1000343271×2
  • 181000440716
    $18.92
    WELDMENT FLAG PIN - 1000440716×1
  • 191000440911
    $0.67
    RING M25 EXTERNAL RETAINING - 1000440911×1
  • 201000490693
    $1.64
    SHIM-30X42X1 DIN 988 SPRING STEEL - 1000490693×2
  • 211000424036
    $1.46
    WASHER 27MM ID - 1000424036×1
