SM100

SM100 Displacement Pump Diagram

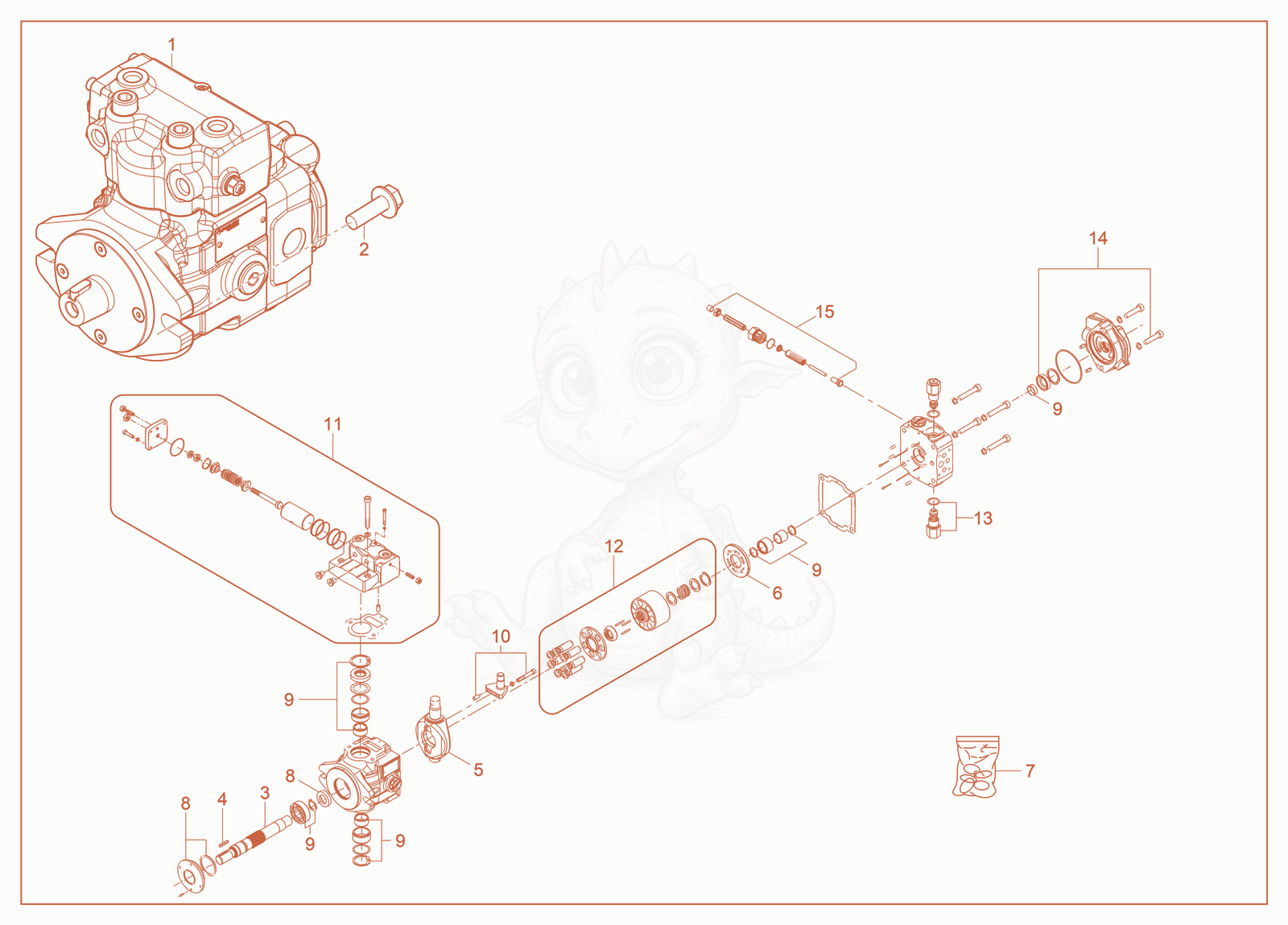

Exploded parts diagram of the Displacement Pump of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000475685
    $1,573.61
    Hydrostaticpumpmutl 1000475685×1
  • 21000343380
    $0.52
    BOLT M10 X 30 FLANGED 10.9 ZINC - 1000343380×4
  • 35100068672
    $249.70
    SHAFT - 5100068672×1
  • 45100068673
    $13.53
    KEY, 6.35 x 6.35 x 15.88 - 5100068673×1
  • 55100068674
    $984.61
    SWASH PLATE - 5100068674×1
  • 65100068675
    $359.64
    PORT PLATE - 5100068675×1
  • 75200008527
    $331.88
    Seal Kit-RD12 Pump - 5200008527×1
  • 85100046543
    $670.84
    SHAFT BEARING KIT - 5100046543×1
  • 95100046544
    $557.15
    TRUNION BEARING KIT - 5100046544×1
  • 105100068676
    $68.74
    Oscillating Bushes Kit - 5100068676×1
  • 115100068677
    $1,402.35
    CONTROL CPL. - 5100068677×1
  • 125100068678
    $367.07
    ROTATING KIT - 5100068678×1
  • 135100068688
    $116.47
    TRUNION BEARING KIT - 5100068688×1
  • 145100068687
    $568.93
    GEROTOR HOUSING KIT - 5100068687×1
  • 151000506382
    $407.56
    Charge relief kit - 1000506382×1
