SM100

SM100 Kit-Coupler Diagram

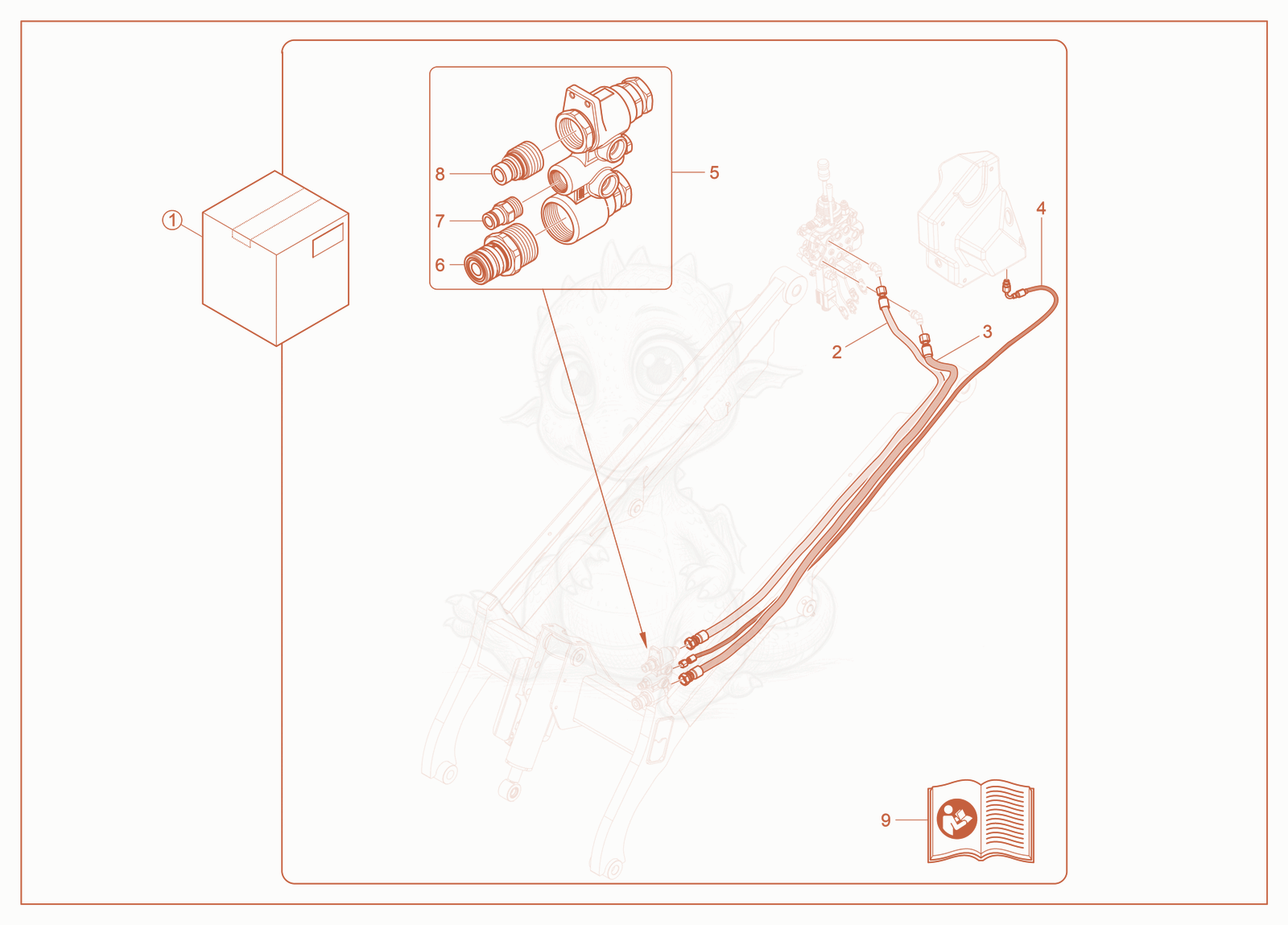

Exploded parts diagram of the Kit-Coupler of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000425605Not stocked
    Aux Coupler Kit×1
  • 21000425106
    $104.26
    HOSE ASSEMBLY - 1000425106×1
  • 31000425106
    $104.26
    HOSE ASSEMBLY - 1000425106×1
  • 41000425107
    $70.26
    HOSE ASSEMBLY - 1000425107×1
  • 51000340322
    $415.72
    Blockcoupler 1000340322×1
  • 61000282547
    $277.10
    coupling socket - 1000282547×1
  • 61000370074
    $153.35
    SEAL KIT - 1000370074×1
  • 71000282548
    $89.13
    quick lock coupling - 1000282548×1
  • 71000370075
    $177.31
    SEAL KIT - 1000370075×1
  • 81000282549
    $215.64
    quick lock coupling - 1000282549×1
  • 81000370074
    $153.35
    SEAL KIT - 1000370074×1
  • 91000469029Not stocked
    Instruction sheet×1
