SM100 Bucket Cylinder Hydraulic System Diagram

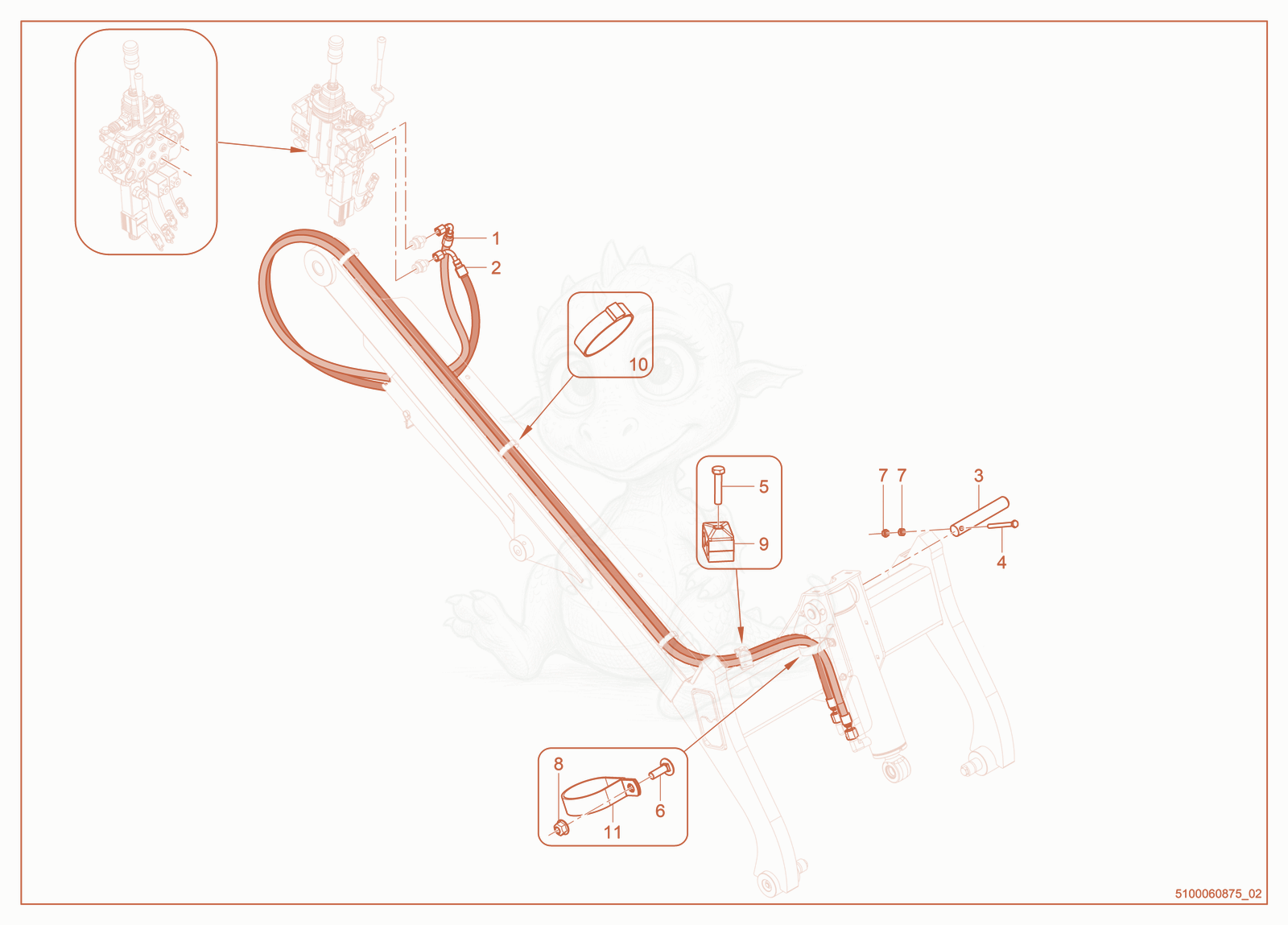

Exploded parts diagram of the Bucket Cylinder Hydraulic System of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000424372
    $92.88
    HOSE ASSEMBLY - 1000424372×1
  • 21000424372
    $92.88
    HOSE ASSEMBLY - 1000424372×1
  • 31000422949
    $14.03
    PIN PIVOT - 1000422949×1
  • 45000011348
    $0.37
    SCREW M8 X 75 HX.HD. - 5000011348×1
  • 55000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×1
  • 61000403381
    $0.65
    BOLT-CARRIAGE,SHRT NK-M8x25-8.8-ZNC - 1000403381×1
  • 75000010882
    $0.05
    NUT M8 8,HEX - 5000010882×2
  • 81000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×1
  • 91000342638
    $5.65
    CLAMP HOSE DIN 2 - 1000342638×1
  • 101000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×3
  • 111000340301
    $3.01
    CLAMP INSULATED - 1000340301×1
