280 HYDRAULICS Diagram

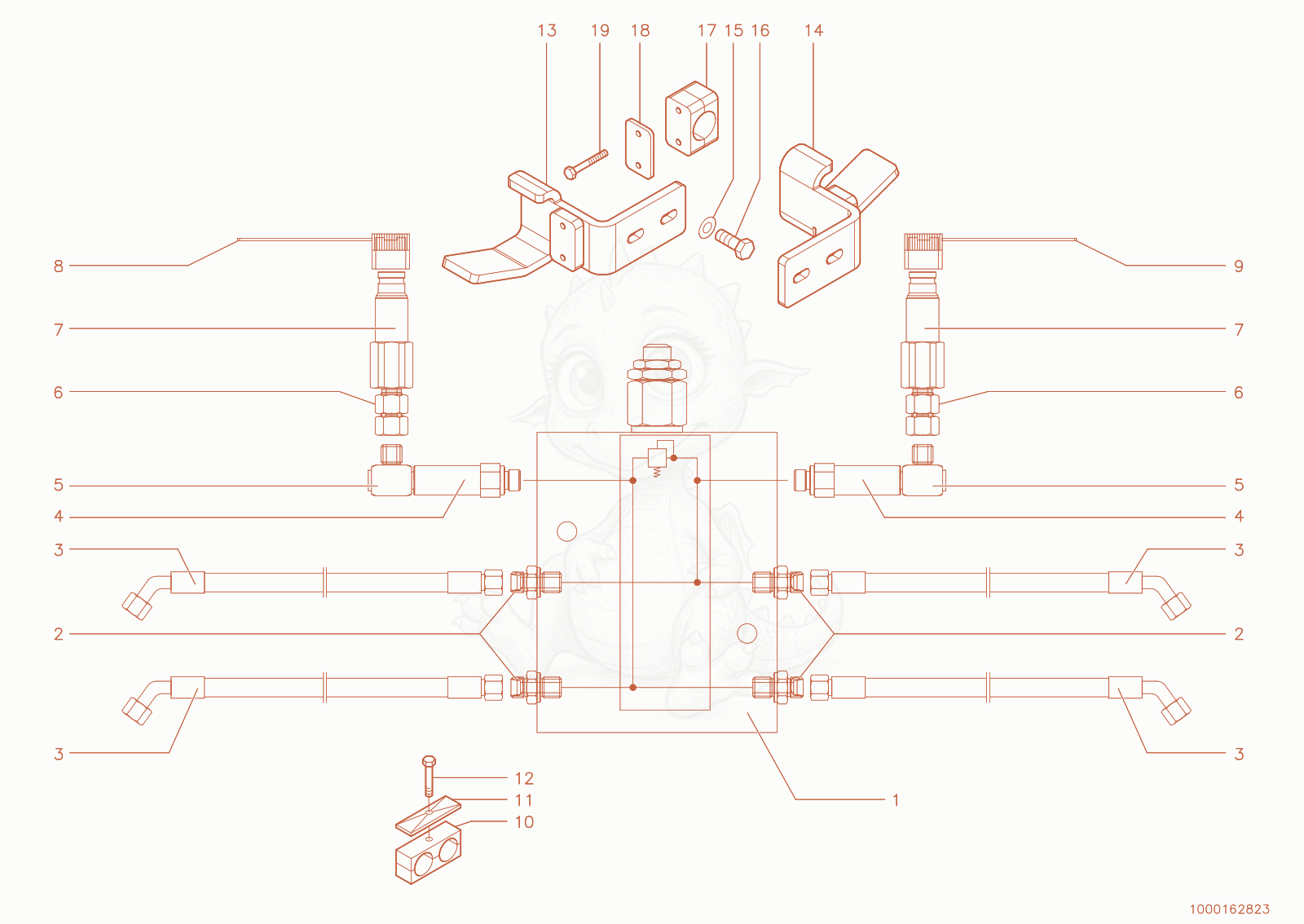

Exploded parts diagram of the HYDRAULICS of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000054452Not stocked
pressure limit reliefvalve×1
21000085053
$2.82
GE12LMEDOMDA3C - 1000085053×4
31000314136Not stocked
Hose×4
41000160635
$86.96
SCREW JOINT - 1000160635×2
51000113823
$185.72
SCREW JOINT - 1000113823×2
61000103497
$14.40
EGE12 LR3/8"A3C - 1000103497×2
71000113827
$94.92
QUICK LOCK COUPLING - 1000113827×2
81000020860Not stocked
dust cap×1
91000020861Not stocked
dust cap×1
101000031626
$3.54
CLAMP - 1000031626×2
111000031230Not stocked
cover plate×2
121000085391
$0.91
hex screw - 1000085391×2
131000162815
$70.64
Limit stop - 1000162815×1
141000162814
$187.80
Limit stop - 1000162814×1
151000092303
$0.86
Washer 10,5 St A2C - 1000092303×4
161000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
171000032060
$1.66
CLAMP - 1000032060×2
181000031643Not stocked
cover plate×2
191000085310
$0.78
hex screw - 1000085310×4
