280 cylinder head Diagram

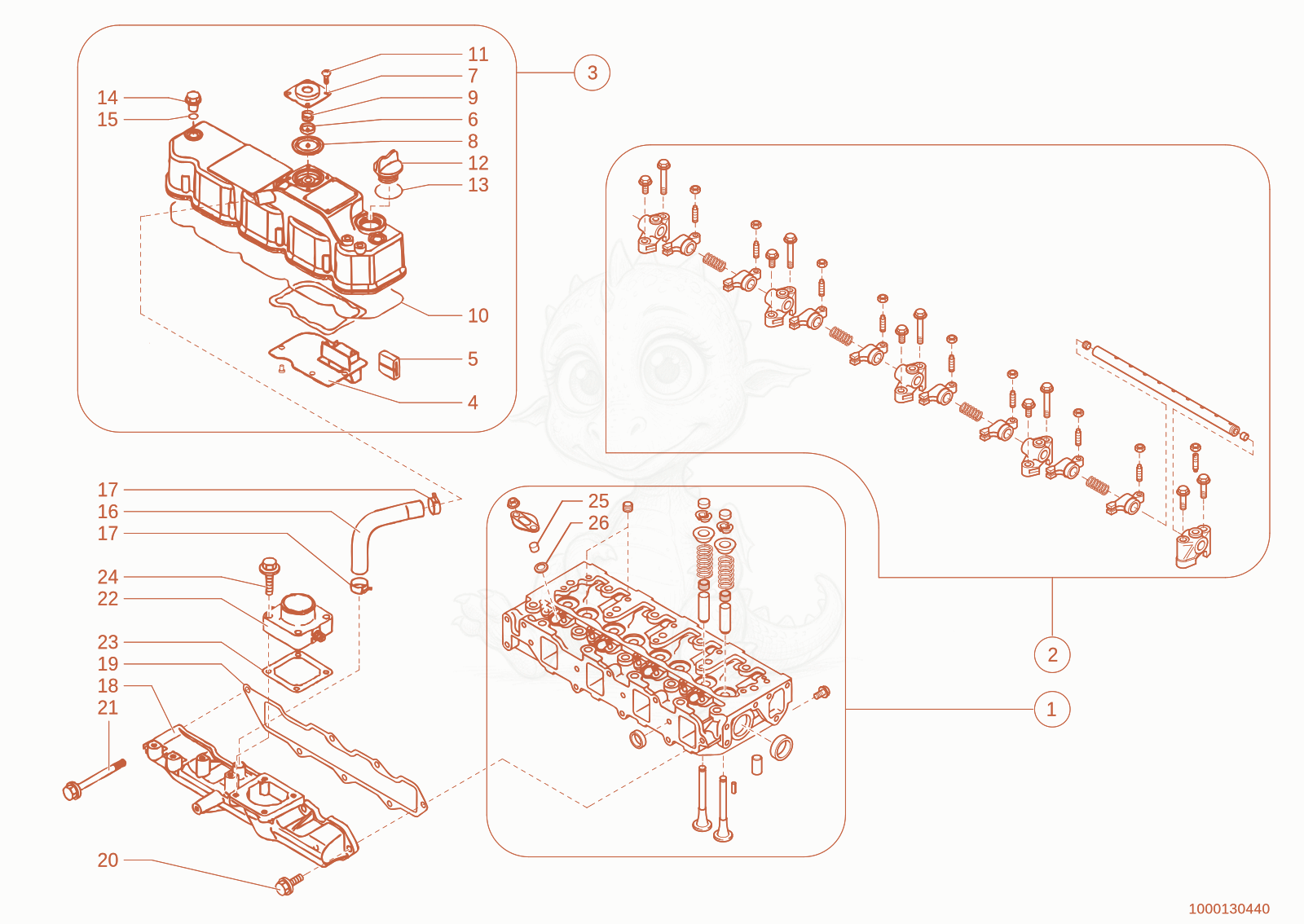

Exploded parts diagram of the cylinder head of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000106271
$3,531.44
CYLINDER HEAD - 1000106271×1
21000130224
$627.92
Bearingsupport 1000130224×1
31000130225
$700.71
Cylinderheadcover 1000130225×1
41000126793
$235.41
plate - 1000126793×1
51000035809
$7.67
PLATE - 1000035809×1
61000126788
$14.28
Washer - 1000126788×1
71000126783
$21.90
Cover - 1000126783×1
81000126791
$28.85
Diaphragm - 1000126791×1
91000126784
$2.89
Spring - 1000126784×1
101000106273
$60.39
VALVE COVER SEAL - 1000106273×1
111000126782
$2.30
SCREW - 1000126782×4
121000002921Not stocked
oil filler cap×1
131000035757Not stocked
seal ring×1
141000035818
$7.95
headnut - 1000035818×3
151000018965
$5.96
O-RING - 1000018965×3
161000126798
$70.39
Hose - 1000126798×1
171000126800
$4.94
CLAMP - 1000126800×2
181000130226
$741.57
suction manifold - 1000130226×1
191000102748
$9.11
Seal - 1000102748×1
201000085153
$2.12
SCREW - 1000085153×1
211000102848
$2.05
SCREW - 1000102848×6
221000035694Not stocked
oil pre heater×1
231000098628
$3.76
Seal - 1000098628×1
241000085194
$2.80
SCREW - 1000085194×4
251000108085
$15.32
PROTECTION - 1000108085×4
261000004679Not stocked
seal ring×4
