280 Injection Diagram

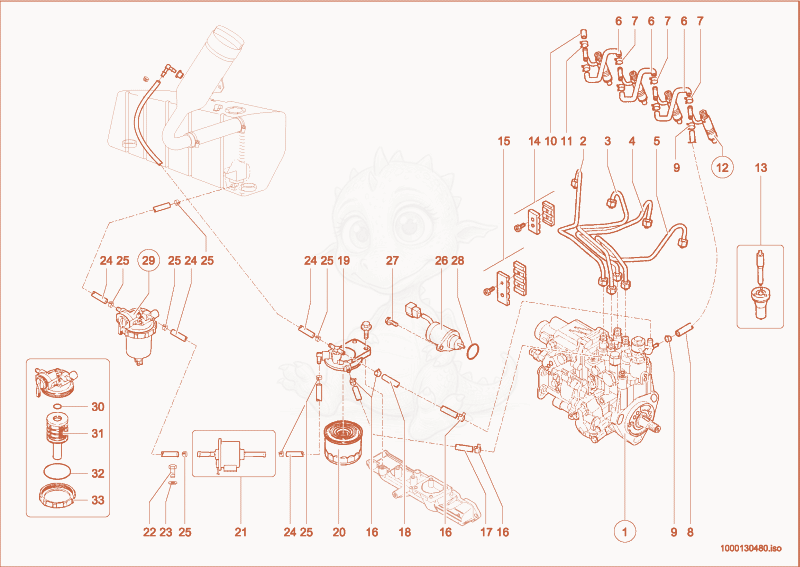

Exploded parts diagram of the Injection of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000130240
$2,253.15
Injectionpump 1000130240×1
21000130289
$51.34
Injection line - 1000130289×1
31000130291
$51.34
Injection line - 1000130291×1
41000130292
$51.34
Injection line - 1000130292×1
51000130293
$51.34
Injection line - 1000130293×1
61000126865
$21.66
Pipe line - 1000126865×3
71000126863
$4.18
Clamp - 1000126863×6
81000126864
$97.72
Pipe line - 1000126864×1
91000126863
$4.18
Clamp - 1000126863×2
101000126866
$7.27
Plug - 1000126866×1
111000130295
$2.32
Clamp - 1000130295×1
121000106294
$364.84
injection nozzle - 1000106294×4
131000130272
$151.59
Nozzle needle - 1000130272×4
141000130266
$10.16
Clamp - 1000130266×1
151000130267
$17.56
Clamp - 1000130267×1
161000085217
$4.77
hose clamp - 1000085217×4
171000130297
$34.96
HOSE PIPE - 1000130297×1
181000102815
$12.51
Hose - 1000102815×1
191000113360
$189.34
bracket dieselfilter - 1000113360×1
201000106891
$34.35
FUEL FILTER - 1000106891×1
211000093894
$299.72
FUEL PUMP - 1000093894×1
221000020553Not stocked
hex screw×2
231000092290
$0.74
WASHER - 1000092290×2
241000097009
$16.58
HOSE - 1000097009×1
251000032118
$2.01
clamp - 1000032118×6
261000003887Not stocked
shut off solenoid×1
271000098692
$2.65
hex screw - 1000098692×2
281000098358
$3.10
O-ring - 1000098358×1
291000078938
$52.73
Water Seperator - 1000078938×1
301000064543
$1.72
O-RING - 1000064543×1
311000106892
$30.76
water seperator element - 1000106892×1
321000035755
$2.56
O-ring - 1000035755×1
331000035846Not stocked
ring nut×1
