280 Lubricating oil Diagram

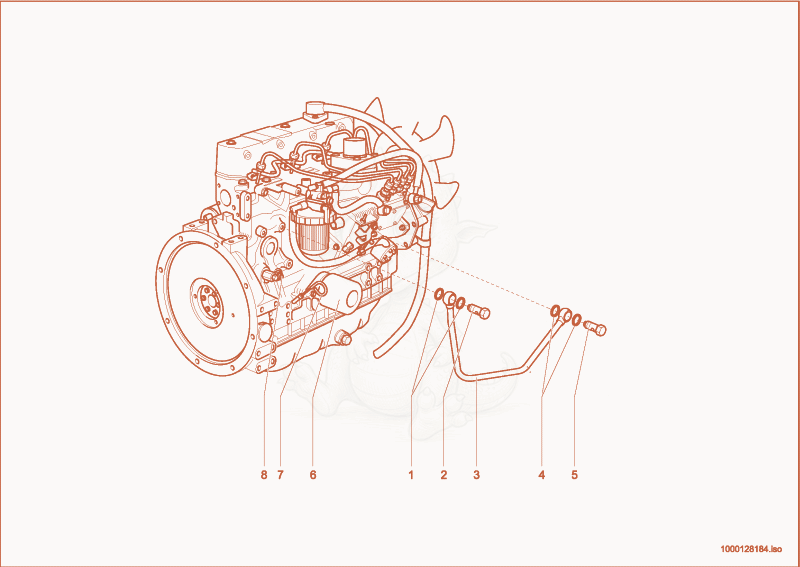

Exploded parts diagram of the Lubricating oil of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000098593
$2.87
seal ring - 1000098593×2
21000035824
$3.26
Banjo bolt - 1000035824×1
31000071069Not stocked
engine oil pipe×1
41000063378Not stocked
seal ring×2
51000035829
$1.18
Banjo bolt - 1000035829×1
61000098281
$11.67
Oil filter - 1000098281×1
71000098282
$41.78
OIL DIP STICK - 1000098282×1
81000098362Not stocked
oil pressure switch×1
