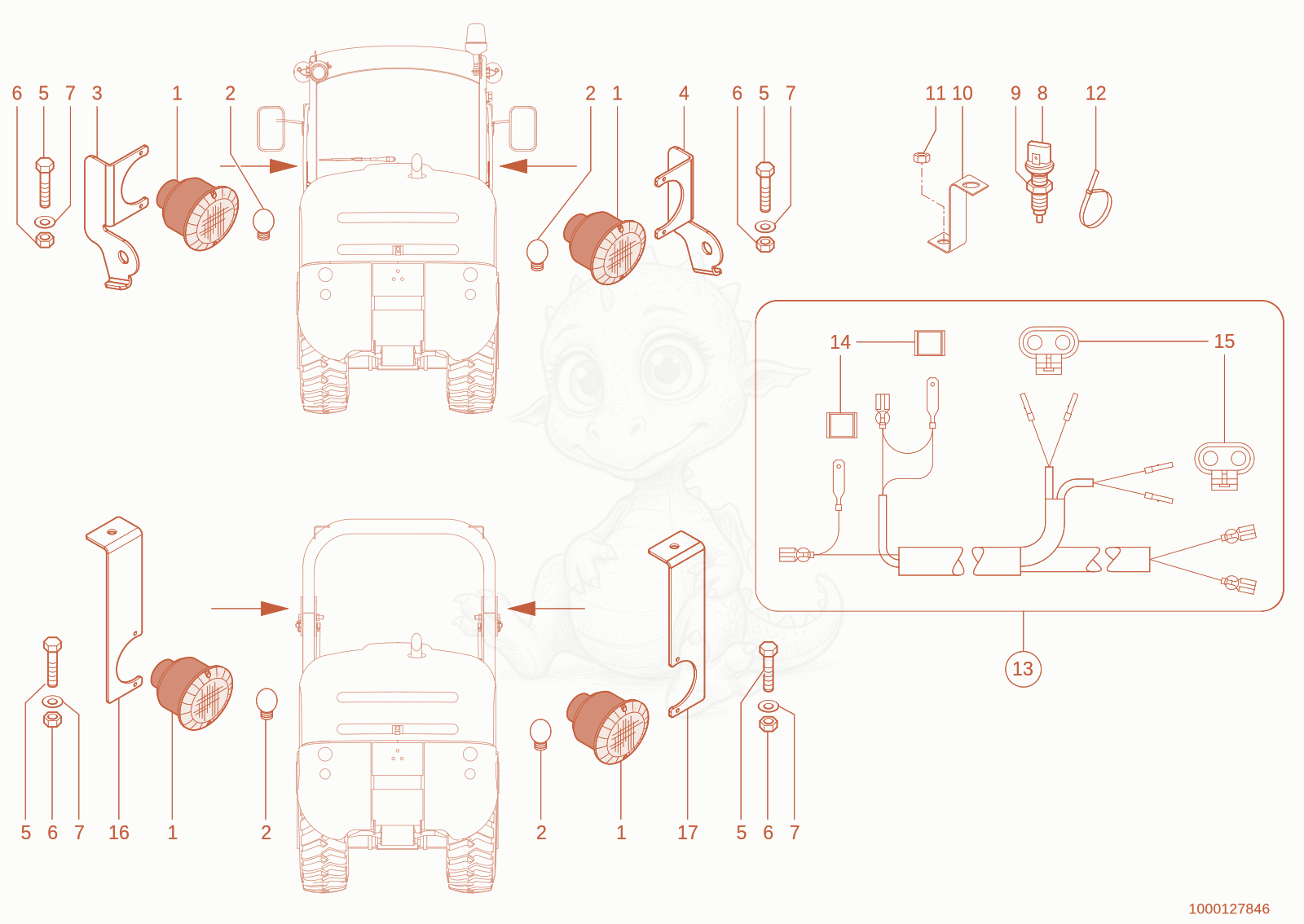

280 Brake light Diagram

Exploded parts diagram of the Brake light of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000109013
$50.26
Brake/rear light - 1000109013×2
21000050449
$5.52
bulb - 1000050449×2
31000109014
$27.48
Bracket - 1000109014×1
41000109016
$27.48
Bracket - 1000109016×1
51000048139Not stocked
cheese head screw×4
61000048986Not stocked
hexagon nut×4
71000049464Not stocked
spring washer×4
81000110882
$10.92
Brake light switch - 1000110882×1
91000049043
$3.16
HEXAGON NUT - 1000049043×1
101000110880
$10.62
ANGLE BRACKET - 1000110880×1
111000015405Not stocked
hexagon nut×1
121000090058
$0.08
cable strap - 1000090058×6
131000111034
$327.17
WIRING HARNESS - 1000111034×1
141000085008
$1.91
PLUG HOUSING - 1000085008×2
151000110449
$2.46
plug bushing - 1000110449×2
161000233894
$62.77
Bracket - 1000233894×1
171000233895
$62.77
Bracket - 1000233895×1
