280 exhaust components Diagram

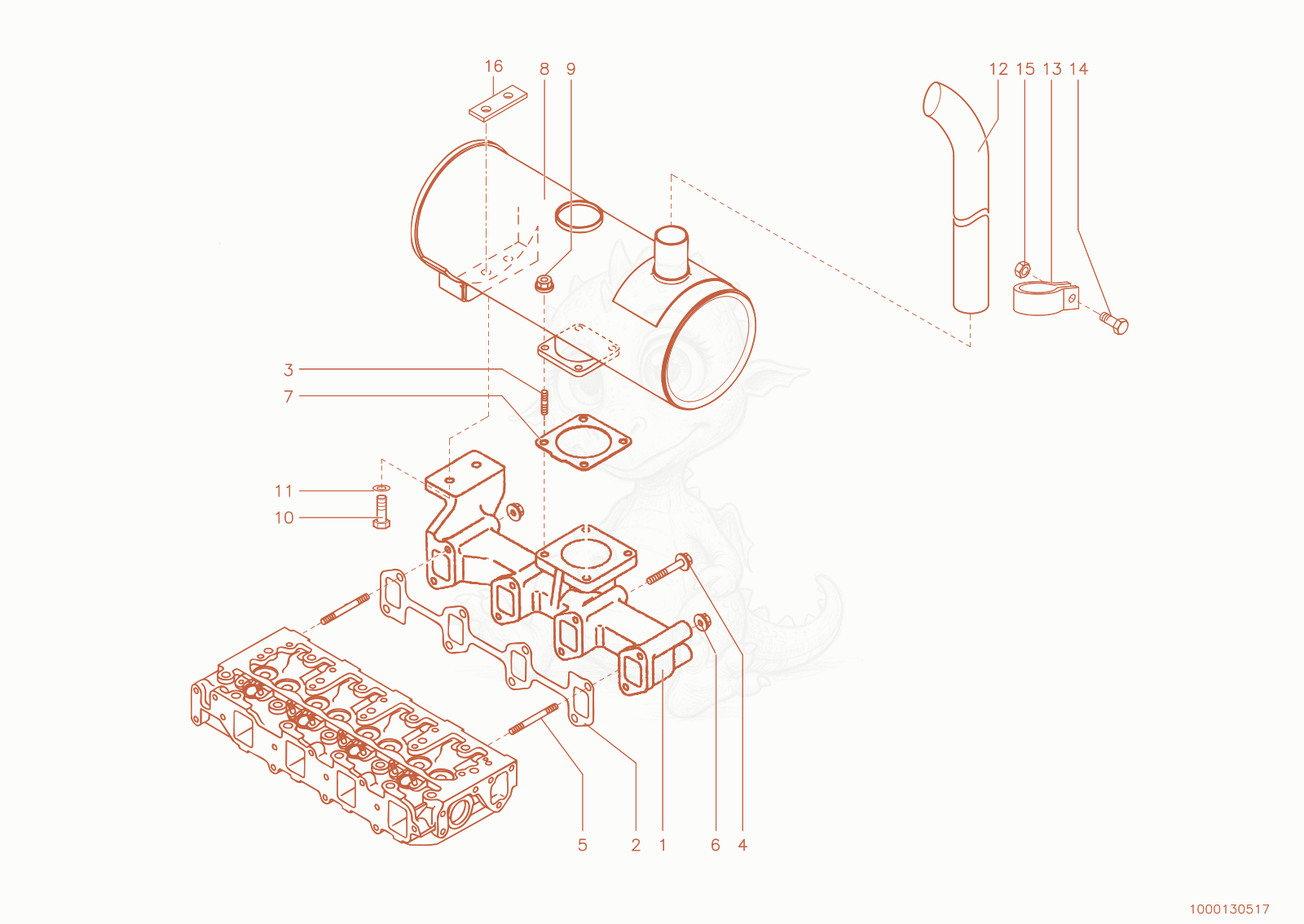

Exploded parts diagram of the exhaust components of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000130227
$584.61
Exhaustmanifold 1000130227×1
21000071072Not stocked
exh.manifold gasket×1
31000098729
$3.85
Stud bolt - 1000098729×4
41000126882
$13.56
SCREW - 1000126882×6
51000063339Not stocked
stud bolt×2
61000098728
$2.07
Hexagon nut - 1000098728×6
71000124153
$23.68
exhaust gasket - 1000124153×1
81000110998
$420.75
X-1000169349 SILENCER - 1000110998×1
91000048950Not stocked
hexagon nut×4
101000015343Not stocked
hex screw×2
111000015431Not stocked
washer×2
121000092556
$70.29
EXHAUST PIPE - 1000092556×1
131000050011
$3.67
CLAMP - 1000050011×1
141000015343Not stocked
hex screw×1
151000013021Not stocked
hexagon nut×1
161000168329
$8.78
THREAD PLATE - 1000168329×1
