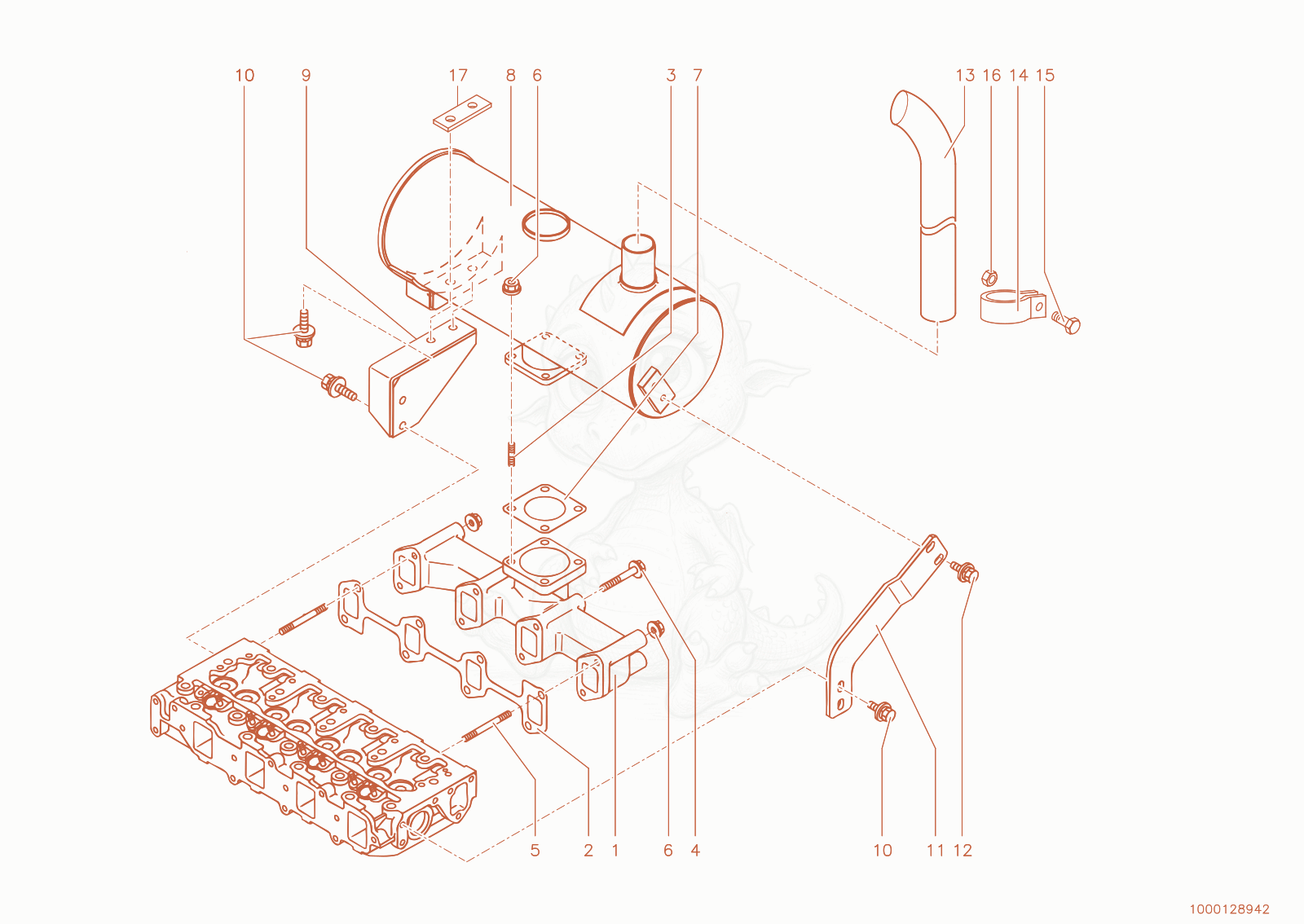

280 exhaust components Diagram

Exploded parts diagram of the exhaust components of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000102797
$231.02
Exhaustmanifold 1000102797×1
21000071072Not stocked
exh.manifold gasket×1
31000098729
$3.85
Stud bolt - 1000098729×4
41000102800
$2.17
SCREW - 1000102800×6
51000063339Not stocked
stud bolt×2
61000098728
$2.07
Hexagon nut - 1000098728×6
71000098608
$14.49
Seal - 1000098608×1
81000102804
$2,371.72
Exhaustsilencer 1000102804×1
91000071265Not stocked
bracket exhaust×1
101000102805
$7.78
HEX SCREW - 1000102805×6
111000102807
$392.66
Bracket - 1000102807×1
121000102808
$2.30
HEX SCREW - 1000102808×2
131000092556
$70.29
EXHAUST PIPE - 1000092556×1
141000050011
$3.67
CLAMP - 1000050011×1
151000015343Not stocked
hex screw×1
161000013021Not stocked
hexagon nut×1
171000168329
$8.78
THREAD PLATE - 1000168329×1
