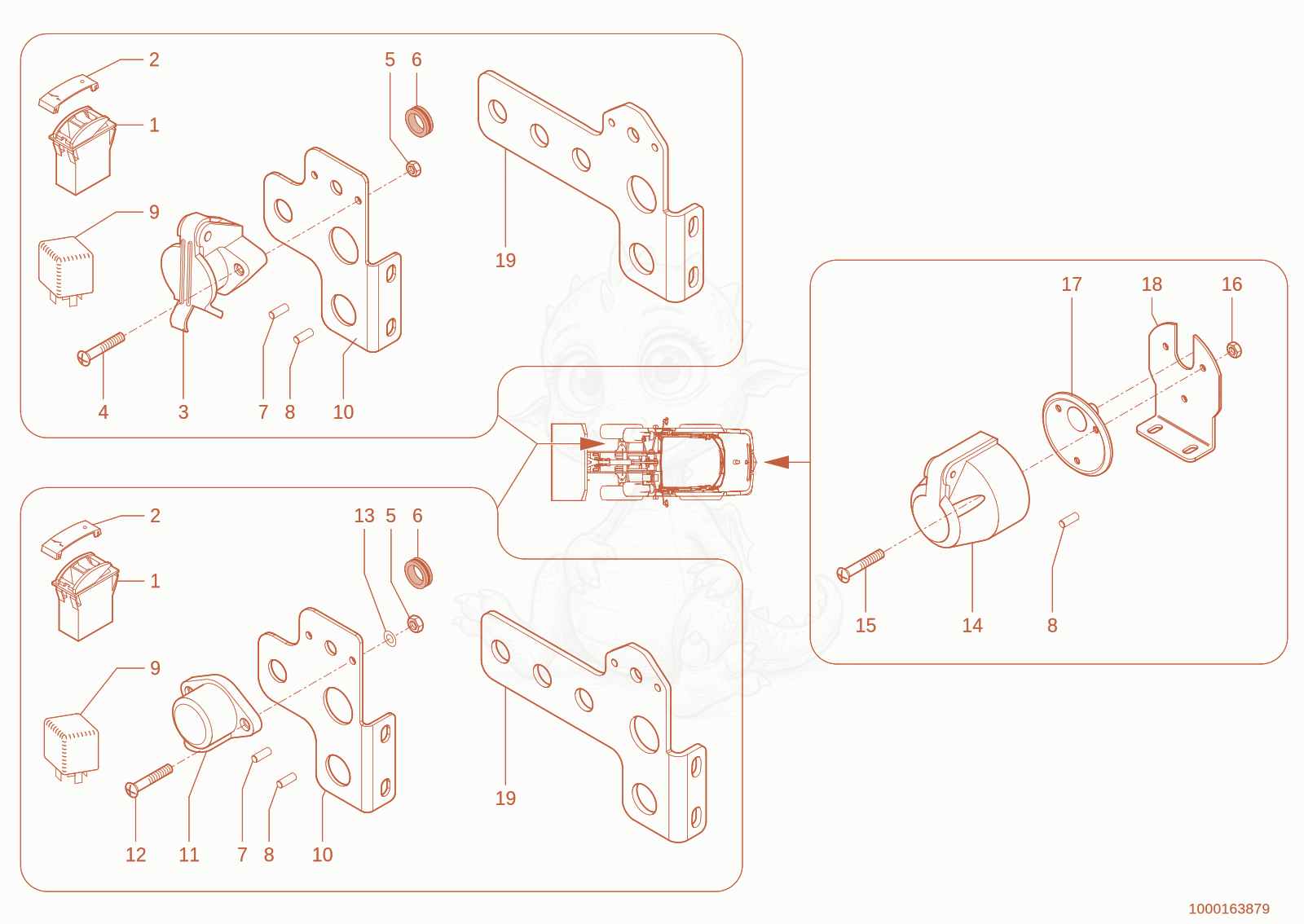

280 electric mount.set Diagram

Exploded parts diagram of the electric mount.set of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000353495Not stocked
tilt switch×1
21000052354
$3.23
Symbol - 1000052354×1
31000050434
$21.01
SOCKET - 1000050434×1
41000048144Not stocked
cheese head screw×2
51000049057Not stocked
hexagon nut×2
61000033317
$1.76
JUNCTION - 1000033317×1
71000098962
$0.68
endsleeve - 1000098962×2
81000051988
$0.91
endsleeve - 1000051988×9
91000353650Not stocked
relay×1
101000164645
$29.62
Bracket - 1000164645×1
111000147066
$13.36
socket - 1000147066×1
121000101181
$3.16
cheese head screw - 1000101181×2
131000092288
$3.28
WASHER - 1000092288×2
141000027230
$17.82
Socket - 1000027230×1
151000048148Not stocked
cheese head screw×3
161000085587
$0.03
HEXAGON NUT - 1000085587×3
171000027149
$16.98
Seal - 1000027149×1
181000034769
$15.30
BRACKET - 1000034769×1
191000177773
$46.78
Bracket - 1000177773×1
