280 lighting Diagram

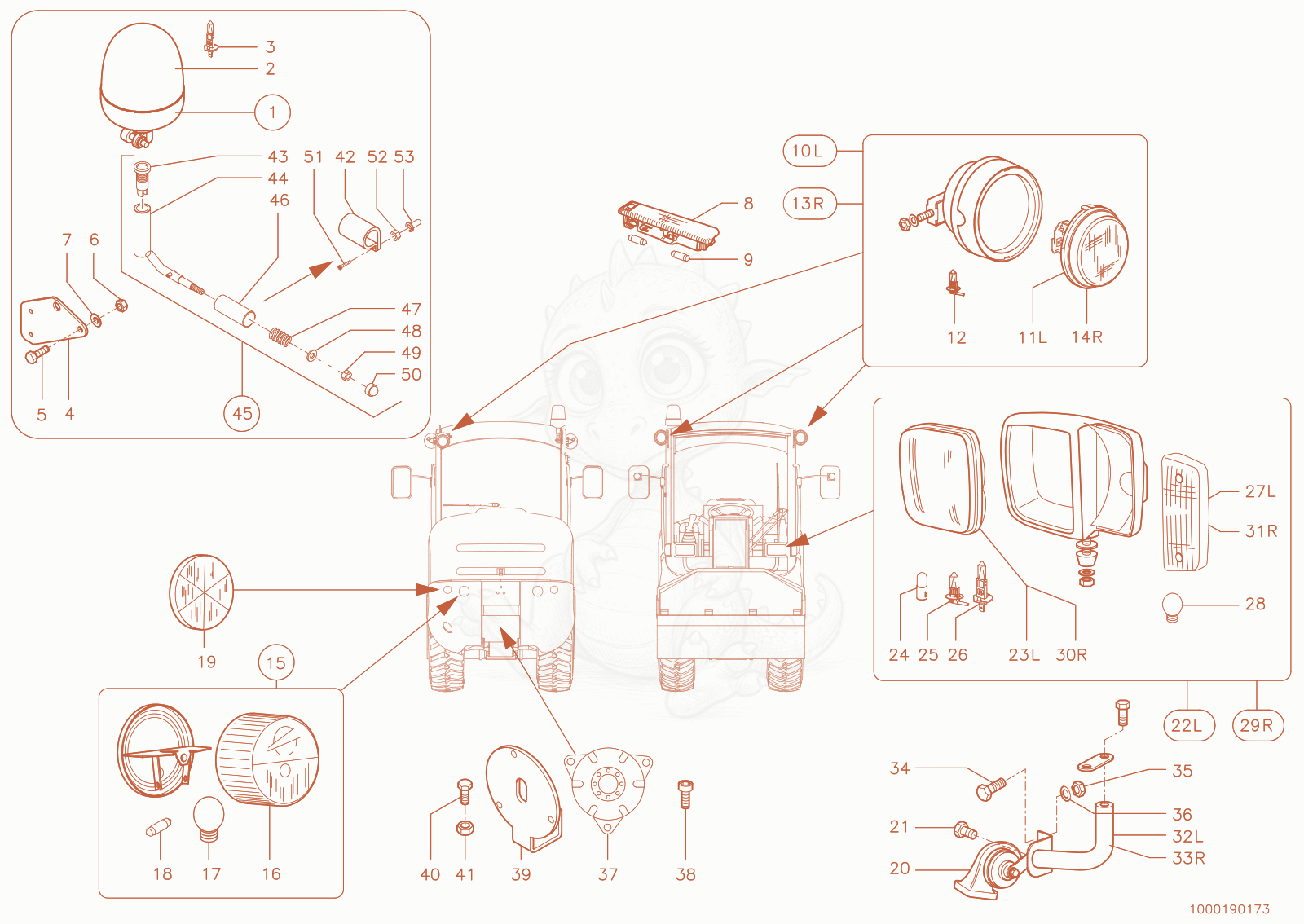

Exploded parts diagram of the lighting of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000155042
$93.32
Rotating beacon - 1000155042×1
21000164463
$62.41
LENZ AMBER - ROTATING BEACON - 1000164463×1
31000109742
$12.47
bulb - 1000109742×1
41000186047
$33.14
Bracket - 1000186047×1
51000013008Not stocked
hex screw×2
61000013022Not stocked
hexagon nut×2
71000015431Not stocked
washer×2
81000051952Not stocked
internal light×1
91000050446
$4.90
BULB - 1000050446×2
101000051954Not stocked
working light×2
111000106679
$92.93
Headlight insert - 1000106679×1
121000109711
$11.14
bulb - 1000109711×1
131000051955Not stocked
working light×1
141000106679
$92.93
Headlight insert - 1000106679×1
151000027126
$128.96
Rear light - 1000027126×2
161000106241
$36.06
Light cover - 1000106241×1
171000050449
$5.52
bulb - 1000050449×1
181000085686
$0.38
bulb - 1000085686×1
191000051951
$1.25
Reflector - 1000051951×2
201000027049Not stocked
signal horn×1
211000085382
$0.70
HEX SCREW - 1000085382×1
221000051956
$130.12
main headlight - 1000051956×1
231000106242
$40.81
Light cover - 1000106242×1
241000001519
$1.48
bulb - 1000001519×1
251000109711
$11.14
bulb - 1000109711×1
261000109712
$11.39
bulb - 1000109712×1
271000106243
$22.08
Light cover - 1000106243×1
281000050449
$5.52
bulb - 1000050449×1
291000051957
$130.12
main headlight - 1000051957×1
301000106242
$40.81
Light cover - 1000106242×1
311000106243
$22.08
Light cover - 1000106243×1
321000100991
$127.11
Bracket - 1000100991×1
331000100992
$111.40
Bracket - 1000100992×1
341000015364Not stocked
hex screw×4
351000015408
$1.33
nut M10-8 A2C-DIN985 - 1000015408×4
361000092291
$0.80
WASHER - 1000092291×8
371000027045Not stocked
signal output device×1
381000048140Not stocked
cheese head screw×3
391000034768
$16.76
Bracket - 1000034768×1
401000019136Not stocked
hex screw×1
411000013022Not stocked
hexagon nut×1
421000068954
$57.54
console - 1000068954×1
431000102844
$54.90
INSERT ROTATING BEACON - 1000102844×1
441000068955Not stocked
turn socket×1
451000068962
$210.93
bracket rotary beacon - 1000068962×1
461000068956Not stocked
rotating beacon sleeve×1
471000004298Not stocked
shim rotary beacon×1
481000015448Not stocked
washer×1
491000015416
$0.71
DIN985-M8-8-A2C - 1000015416×1
501000004276Not stocked
cover cap×1
511000085452
$0.70
allen screw M5x20-8.8 A2C DIN912 - 1000085452×2
521000085587
$0.03
HEXAGON NUT - 1000085587×2
531000125088
$4.77
blind rivet nut - 1000125088×2
