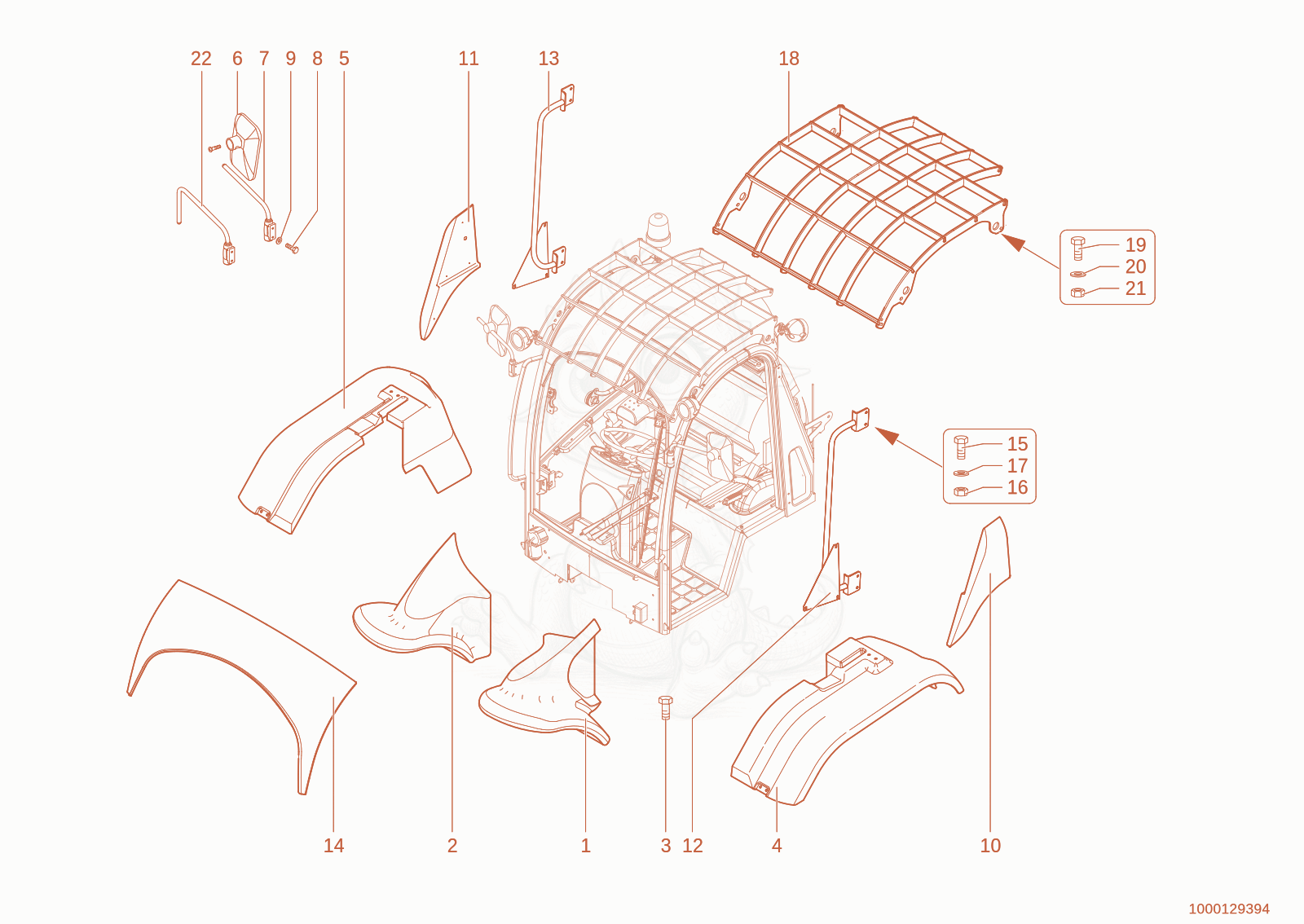

280 Trim Diagram

Exploded parts diagram of the Trim of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000050921Not stocked
wheel cover×1
21000050922Not stocked
wheel cover×1
31000052668Not stocked
ovalhead screw×12
41000050929Not stocked
wheel cover×1
51000050930Not stocked
wheel cover×1
61000029683Not stocked
rearview mirror×2
71000052344
$175.73
X-1000168643 MIRROR BRACKET - 1000052344×2
81000085382
$0.70
HEX SCREW - 1000085382×4
91000049283Not stocked
bearing disc×4
101000051022
$211.17
TRIM - 1000051022×1
111000051023
$173.60
TRIM - 1000051023×1
121000050994
$202.50
HANDLE - 1000050994×1
131000050996
$194.96
HANDLE - 1000050996×1
141000051001
$818.75
Roof 1000051001×1
151000085317
$0.97
hex screw M8x55-8.8 A2C-DIN931 - 1000085317×8
161000013022Not stocked
hexagon nut×8
171000015431Not stocked
washer×8
181000051072Not stocked
fops screen×1
191000015381Not stocked
hex screw×4
201000049219Not stocked
washer×8
211000019657
$3.09
HEXAGON NUT - 1000019657×4
221000116555
$84.05
MIRROR BRACKET - 1000116555×2
