280

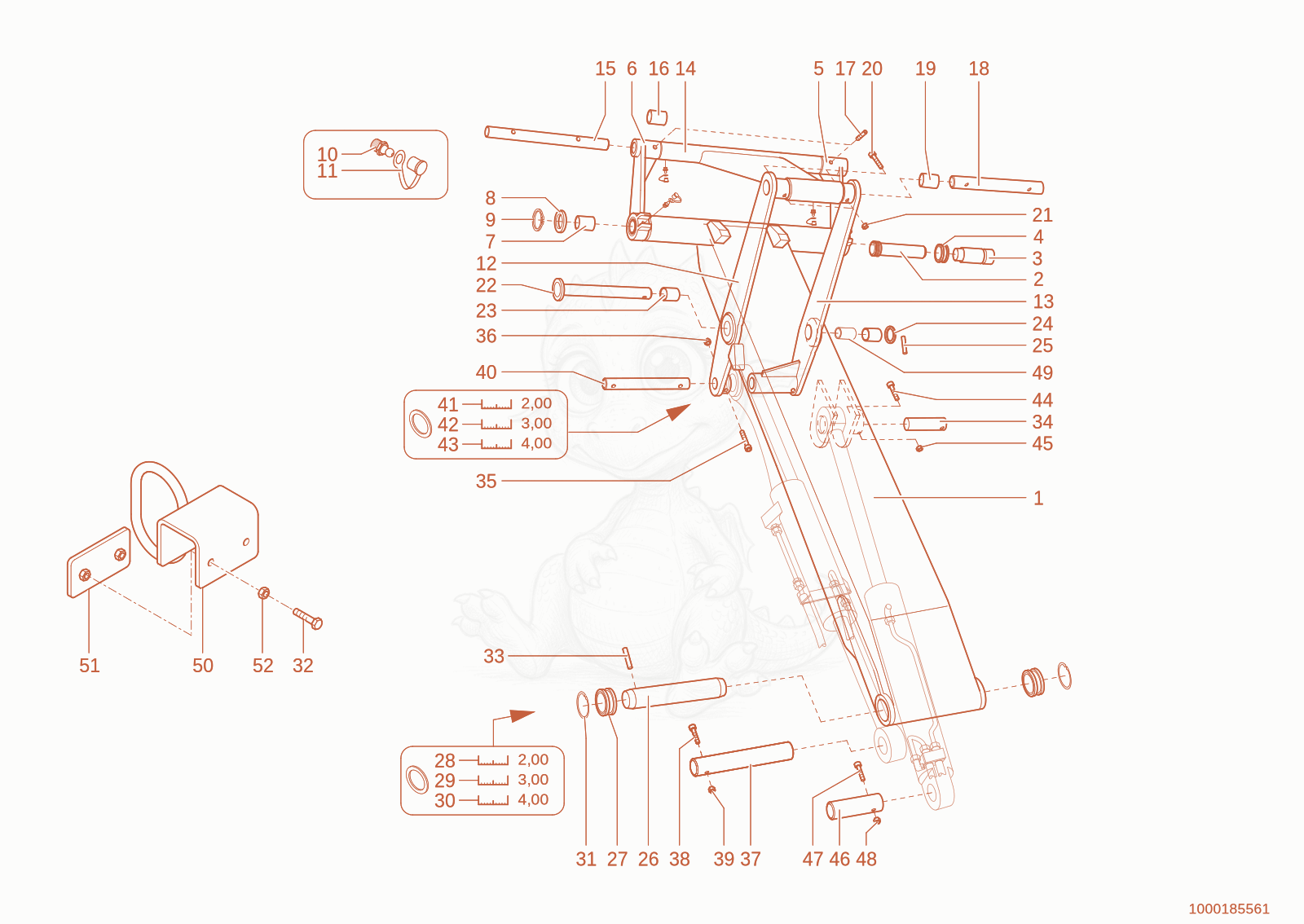

280 loading system Diagram

Exploded parts diagram of the loading system of a Wacker Neuson 280, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000234471
    $15,567.12
    Liftarm 1000234471×1
  • 21000037123
    $312.15
    Piston Rod - 1000037123×2
  • 31000051112Not stocked
    guide tube×2
  • 41000105444
    $45.63
    seal kit - 1000105444×2
  • 51000034825
    $533.40
    MOUNTING - 1000034825×1
  • 61000034821
    $533.40
    MOUNTING - 1000034821×1
  • 71000032711Not stocked
    bearing bush×2
  • 81000092560
    $94.68
    SHIM - 1000092560×2
  • 91000092427
    $1.53
    LOCK RING - 1000092427×2
  • 101000050469
    $1.68
    grease nipple - 1000050469×5
  • 111000033442
    $0.43
    CAP - 1000033442×5
  • 121000034820
    $877.23
    ROCKER ARM - 1000034820×1
  • 131000034824Not stocked
    rocker arm×1
  • 141000034822
    $1,158.43
    Tiltrod 1000034822×1
  • 151000051116
    $224.83
    Pin - 1000051116×1
  • 161000032685
    $22.30
    bushing - 1000032685×2
  • 171000032970Not stocked
    thread pin×2
  • 181000051113
    $202.42
    Pin - 1000051113×1
  • 191000032685
    $22.30
    bushing - 1000032685×2
  • 201000085319
    $1.28
    6-Point screw M8x80-8.8 A2C - 1000085319×2
  • 211000013022Not stocked
    hexagon nut×2
  • 221000051079
    $129.15
    PIN - 1000051079×1
  • 231000032716
    $23.83
    bushing - 1000032716×2
  • 241000034866
    $5.02
    WASHER - 1000034866×2
  • 251000049780Not stocked
    cotter pin×1
  • 261000051117
    $186.05
    Pin - 1000051117×1
  • 271000032723
    $23.55
    BUSHING - 1000032723×2
  • 281000090624
    $7.18
    DISC - 1000090624×1
  • 291000090626
    $4.73
    DISC - 1000090626×1
  • 301000090628
    $4.10
    DISC - 1000090628×1
  • 311000049530Not stocked
    lock ring×2
  • 321000015380Not stocked
    hex screw×2
  • 331000104384
    $5.08
    SPIRAL TENSION PIN - 1000104384×1
  • 341000051115
    $86.79
    Pin - 1000051115×1
  • 351000085320
    $1.13
    hex screw - 1000085320×1
  • 361000013022Not stocked
    hexagon nut×1
  • 371000051118
    $171.39
    Pin - 1000051118×1
  • 381000085319
    $1.28
    6-Point screw M8x80-8.8 A2C - 1000085319×1
  • 391000013022Not stocked
    hexagon nut×1
  • 401000098897
    $192.26
    Pin - 1000098897×1
  • 411000090624
    $7.18
    DISC - 1000090624×1
  • 421000090626
    $4.73
    DISC - 1000090626×1
  • 431000090628
    $4.10
    DISC - 1000090628×1
  • 441000085320
    $1.13
    hex screw - 1000085320×2
  • 451000013022Not stocked
    hexagon nut×2
  • 461000051118
    $171.39
    Pin - 1000051118×1
  • 471000085319
    $1.28
    6-Point screw M8x80-8.8 A2C - 1000085319×1
  • 481000013022Not stocked
    hexagon nut×1
  • 491000034877
    $21.32
    PIPE - 1000034877×1
  • 501000248914
    $62.24
    Bracket - 1000248914×1
  • 511000248915
    $64.09
    fasten plate - 1000248915×1
  • 521000013021Not stocked
    hexagon nut×2
