RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

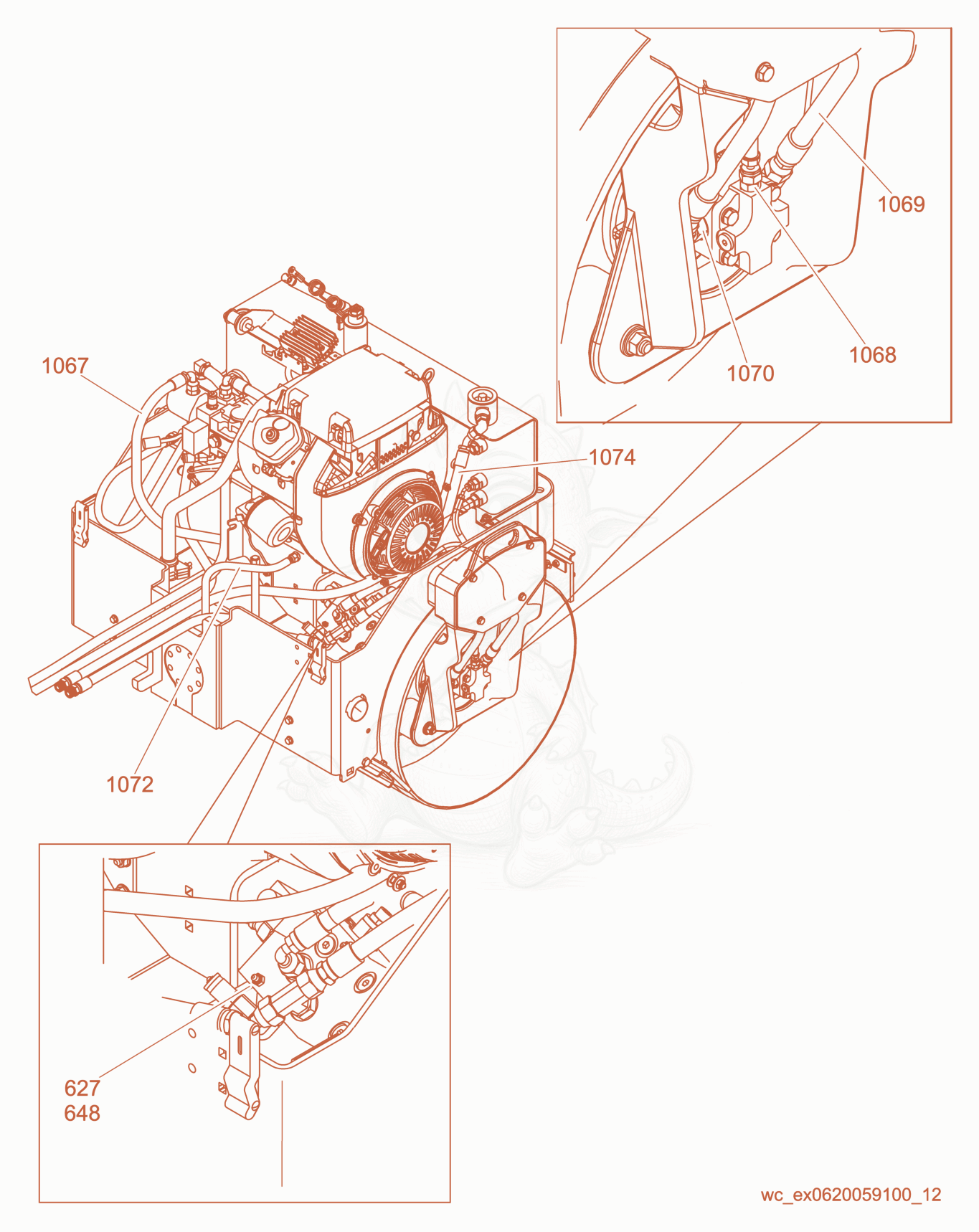

RD12-90 Exciter Motor Right Side Diagram

Exploded parts diagram of the Exciter Motor Right Side of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 6275000164039
    $1.11
    BOLT-CARRIAGE M6X80 GR 8.8 - 5000164039×2
  • 6485000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 10675000163344
    $54.86
    HOSE-EX PUMP TO EX MAN - 5000163344×1
  • 10685000163363
    $27.80
    HOSE-CASE DRAIN EX MTR TO RES - 5000163363×1
  • 10695000163347
    $46.06
    HOSE-EX MAN TO EX MOTOR - 5000163347×1
  • 10705000163350
    $38.59
    HOSE-EX MOTOR TO EX MAN OUT - 5000163350×1
  • 10725000163304
    $23.02
    HOSE-ENGINE OIL DRAIN,12 - 5000163304×1
  • 10745000163352
    $74.18
    HOSE-STEER UNIT TO RES - 5000163352×1
