RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

RD12-90 Water Tank/Seat Diagram

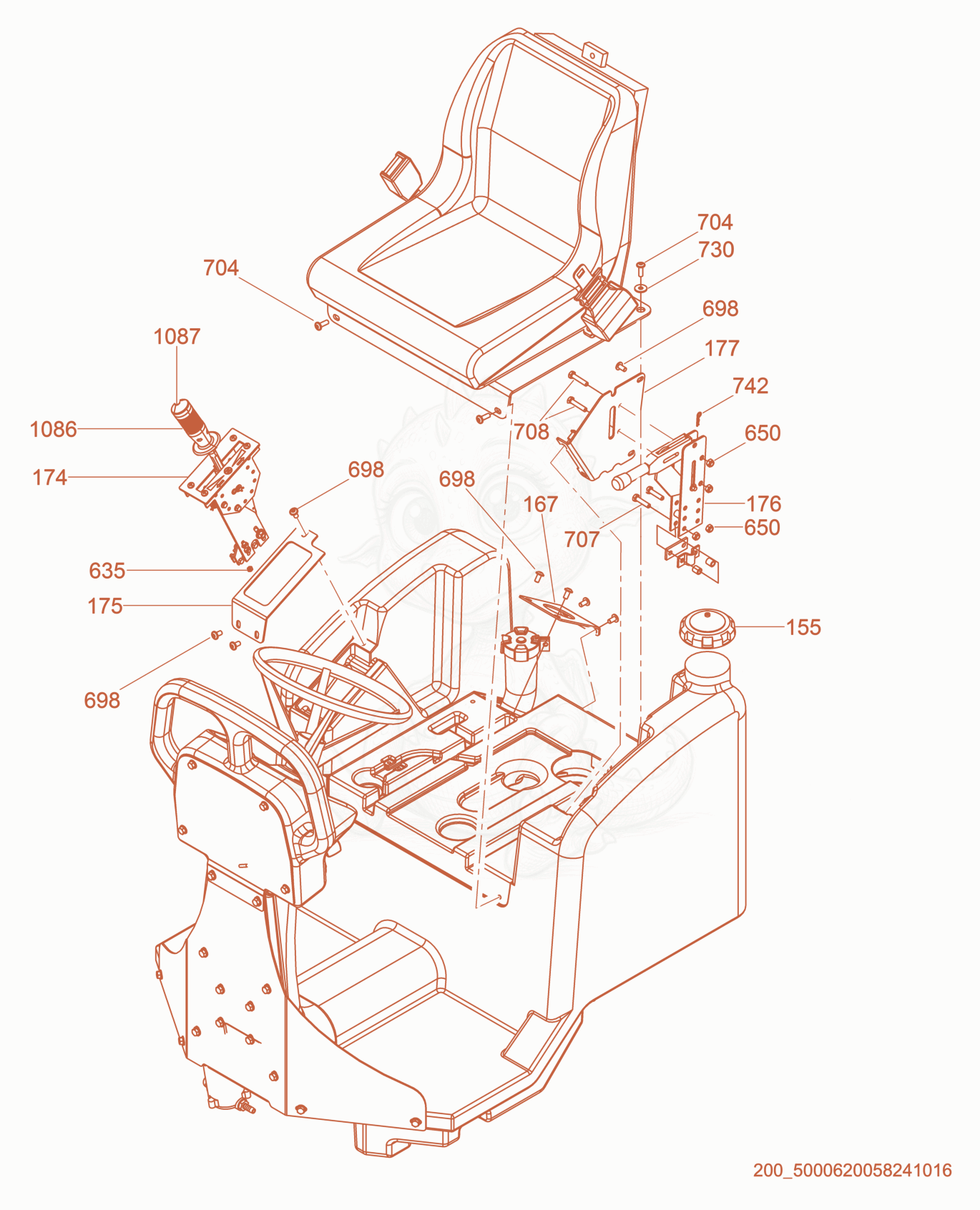

Exploded parts diagram of the Water Tank/Seat of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1555000164776
    $45.58
    CAP-WATER TANK - 5000164776×1
  • 1675000163272
    $148.89
    GUARD-FUEL SPILL P-5000112007 - 5000163272×1
  • 1745100017780
    $1,656.66
    LEVER-TRAVEL CONTROL - 5100017780×1
  • 1755000163275
    $313.86
    BRACKET-MOUNT,CONTROL LEVER P-5000112007 - 5000163275×1
  • 1765000111116
    $193.31
    CONTROL-BRAKE - 5000111116×1
  • 1775000163276
    $169.00
    BRACKET-MOUNT,BRAKE P-5000112007 - 5000163276×1
  • 6355000030340
    $0.03
    NUT #10-32,HEX.- HMSN Z - 5000030340×1
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 6985000163945
    $0.26
    SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×11
  • 7045000163946
    $0.33
    SCREW M8X25 BTN HD BL ZN 10.9 - 5000163946×4
  • 7075000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×2
  • 7085000011341
    $0.36
    SCREW M8 X 40 HX.HD. - 5000011341×2
  • 7305000163953
    $0.98
    WASHER-M8 FLAT,ZINC BLK PL - 5000163953×2
  • 7425000075161
    $0.20
    PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
  • 10865200023172Not stocked
    Grip Housing Kit×1
  • 10875000114261
    $12.43
    CAP-RUBBER - 5000114261×1
