RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

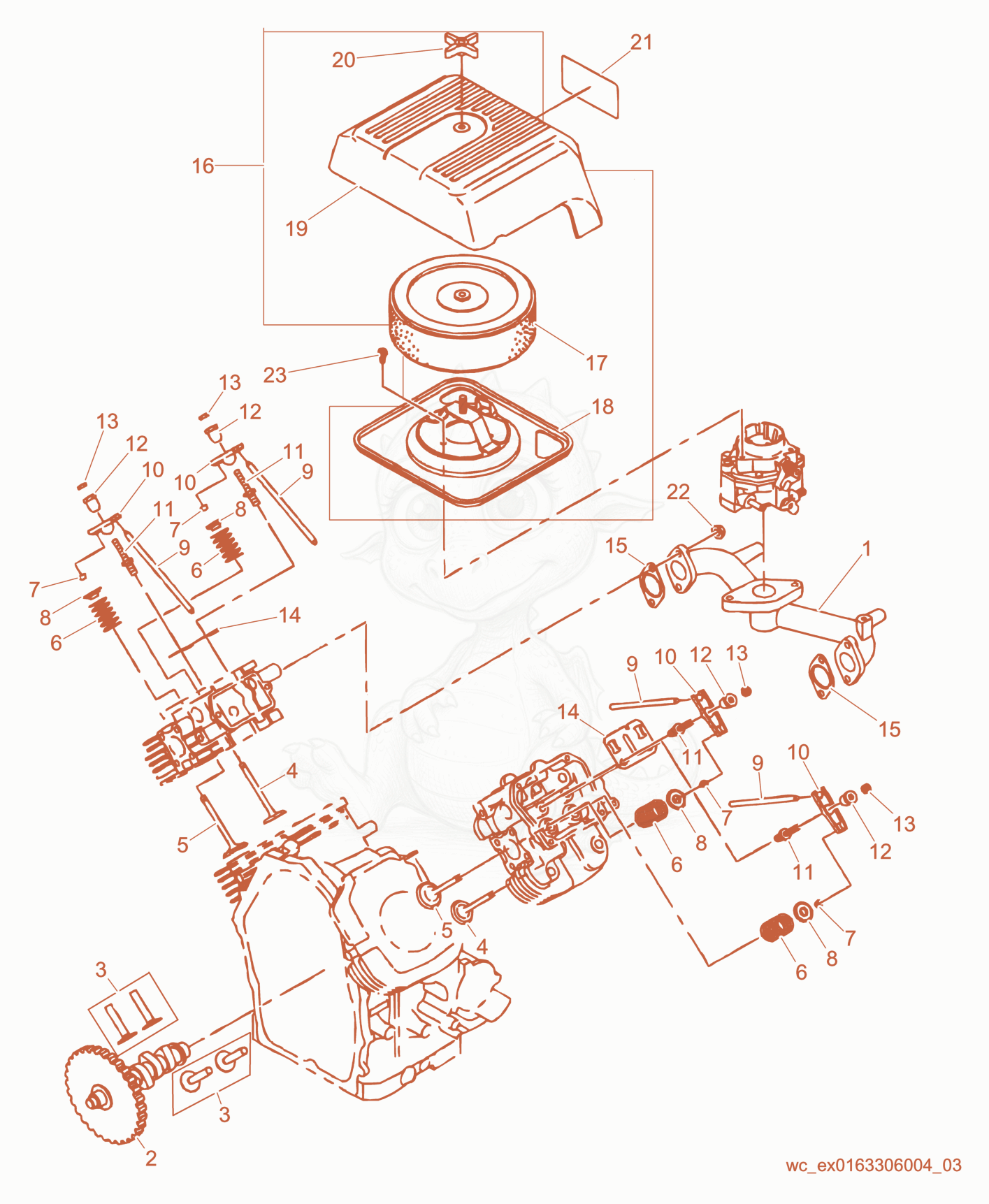

RD12-90 Intake/Exhaust Diagram
- MANIFOLD-INTAKE - 5000215251×1
- Camshaft - 5000215248×1
- Tappet - 5000215181×2
- VALVE-INTAKE - 5000205609×2
- X-5200009853 VALVE-EXHAUST - 5000205610×2
- SPRING-VALVE - 5000205607×4
- VALVE COLLET - 5000205611×8
- RETAINER-SPRING - 5000205608×4
- ROD-PUSH - 5000215182×4
- Rocker Arm - 5000215243×4
- BOLT-PIVOT - 5000205617×4
- PIVOT - 5000205618×4
- nut - 5000205619×4
- GUIDE PLATE - 5000215184×2
- GASKET-INTAKE MANIFOLD - 5000215183×2
- AIR CLEANER CPL. - 5000215249×1
- ELEMENT-AIR CLEANER - 5000215117×1
- HOLDER-AIR CLEANER - 5000215250×1
- COVER-AIR CLEANER - 5000215179×1
- NUT-WING - 5000215180×1
- Label - 5000215242×1
- NUT-FLANGE - 5000075270×4
- NUT-FLANGE - 5000215261×3
