RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

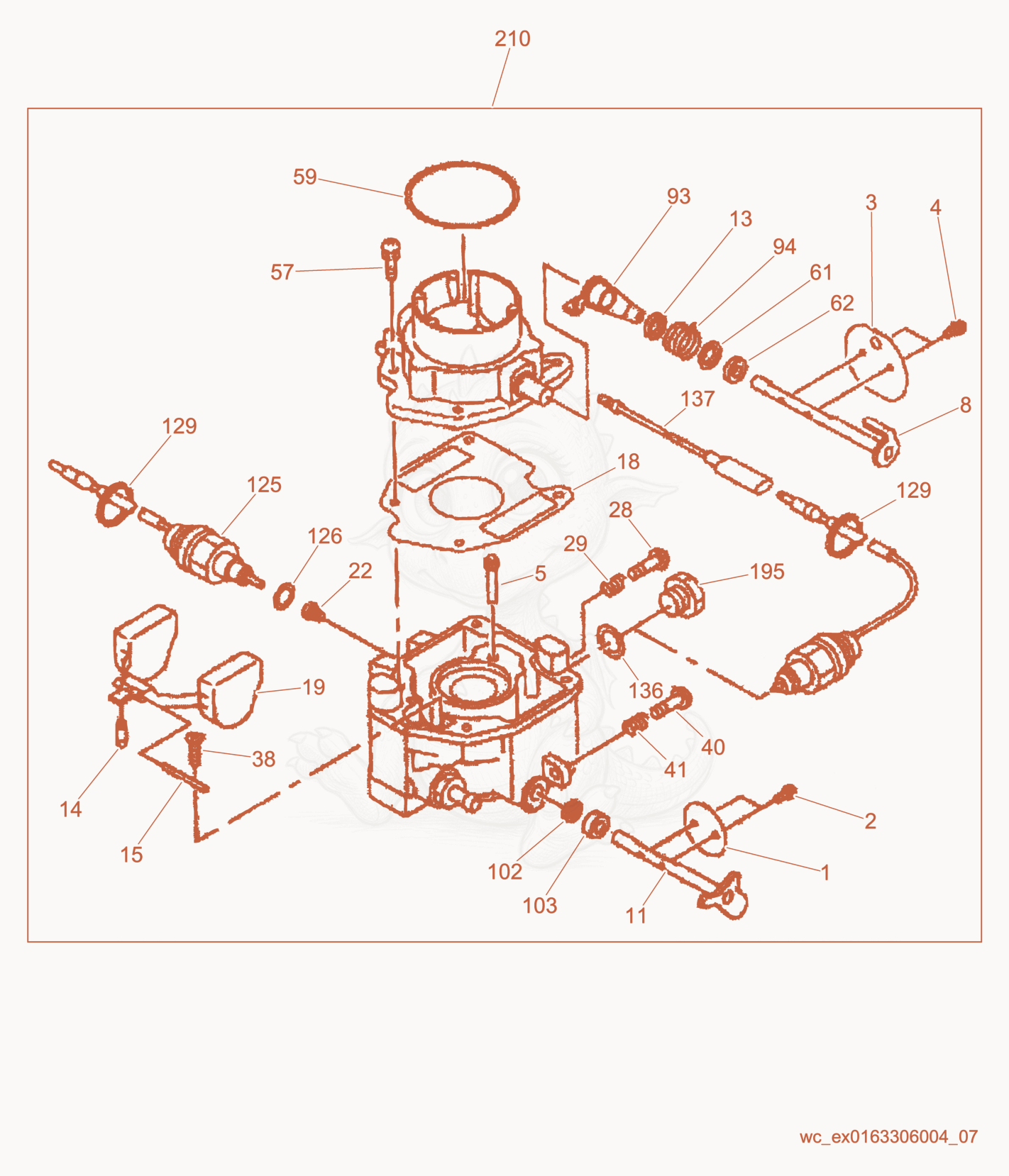

RD12-90 Carburetor cpl. Diagram
- Throttle valve - 5000215211×1
- SCREW SET-VALVE - 5000215150×2
- VALVE-CHOKE - 5000215209×1
- SCREW SET-VALVE - 5000215144×2
- JET (SLOW) - 5000215137×1
- Choke shaft cpl. - 5000215207×1
- SHAFT COMPLETE-THROTTLE - 5000215210×1
- Ring - 5000215142×1
- VALVE-FLOAT - 5000215135×1
- PIN-FLOAT - 5000215140×1
- GASKET-AIR HORN - 5000215253×1
- Float - 5000215252×1
- JET-MAIN - 5000215203×1
- Drain plug - 5000215132×1
- Spring - 5000215133×1
- SCREW SET - 5000215145×1
- SCREW-THROTTLE ADJUSTMENT - 5000215205×1
- SPRING-ADJUSTMENT SCREW - 5000215138×1
- SCREW SET - 5000215139×4
- O-Ring - 5000215215×1
- GUARD-COLLAR - 5000215254×1
- FILTER-CHOKE SHAFT - 5000215143×1
- LEVER-CHOKE - 5000215208×1
- SPRING-CHOKE - 5000215204×1
- O-Ring - 5000215136×1
- GUARD-COLLAR - 5000215147×1
- VALVE-SOLENOID - 5000215214×1
- GASKET - 5000215141×1
- CLAMP-WIRE - 5000215146×1
- Gasket - 5000215213×1
- Plug - 5000215212×1
- CARBURETOR CPL. - 5000215206×1
