RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

RD12-90 Water Tank/Console Diagram

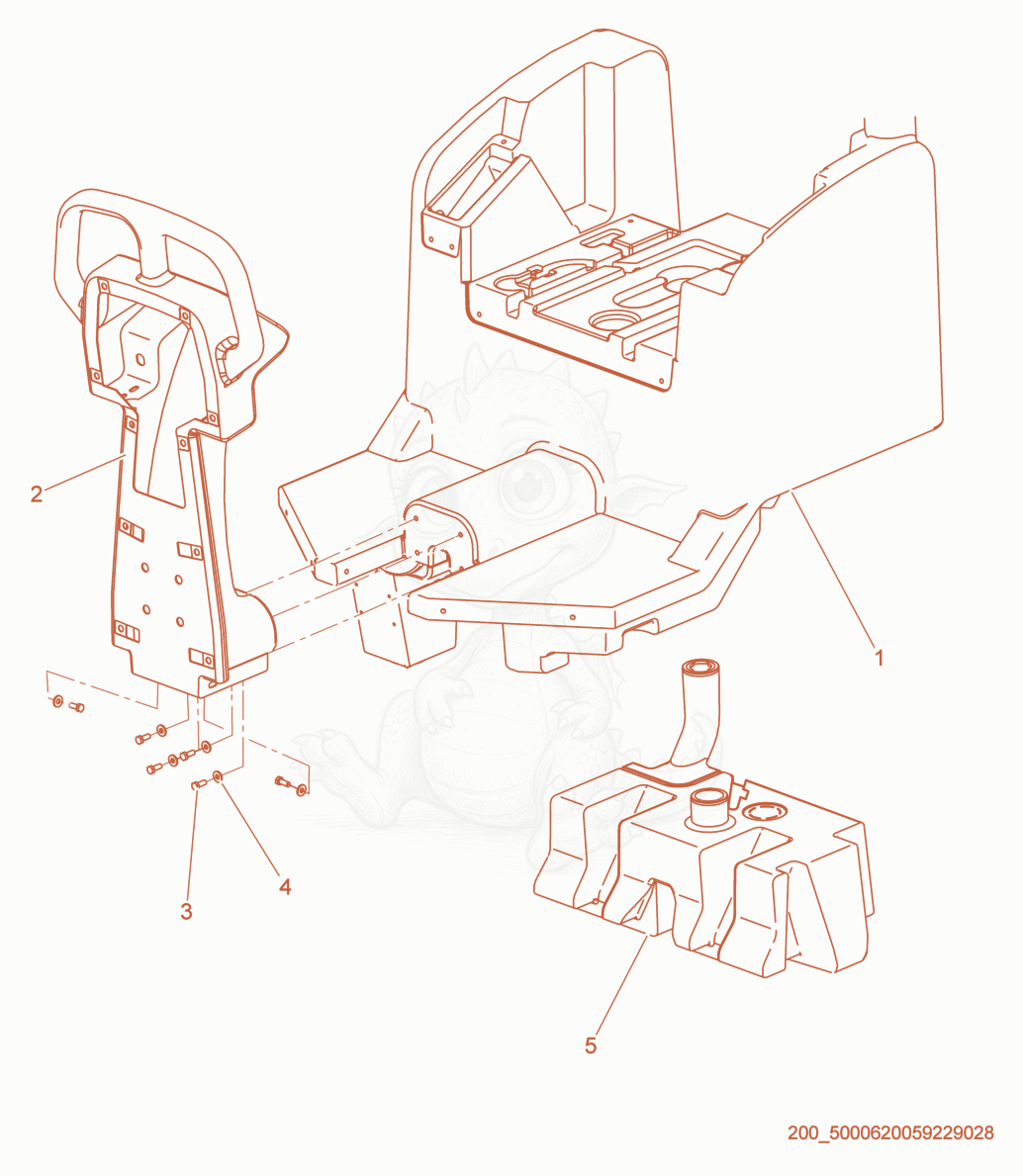

Exploded parts diagram of the Water Tank/Console of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000163265
    $4,030.91
    TANK-WATER - 5000163265×1
  • 15000164776
    $45.58
    CAP-WATER TANK - 5000164776×1
  • 25000182371
    $398.77
    CONSOLE-COLUMN - 5000182371×1
  • 35000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×6
  • 45000160298
    $0.15
    WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×6
  • 55000186625
    $593.53
    TANK-FUEL,EPA - 5000186625×1
  • 55000186626
    $25.86
    CAP-FUEL,RATCHET W/TETHER,EPA - 5000186626×1
