RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

RD12-90 Steering Hydraulic System Diagram

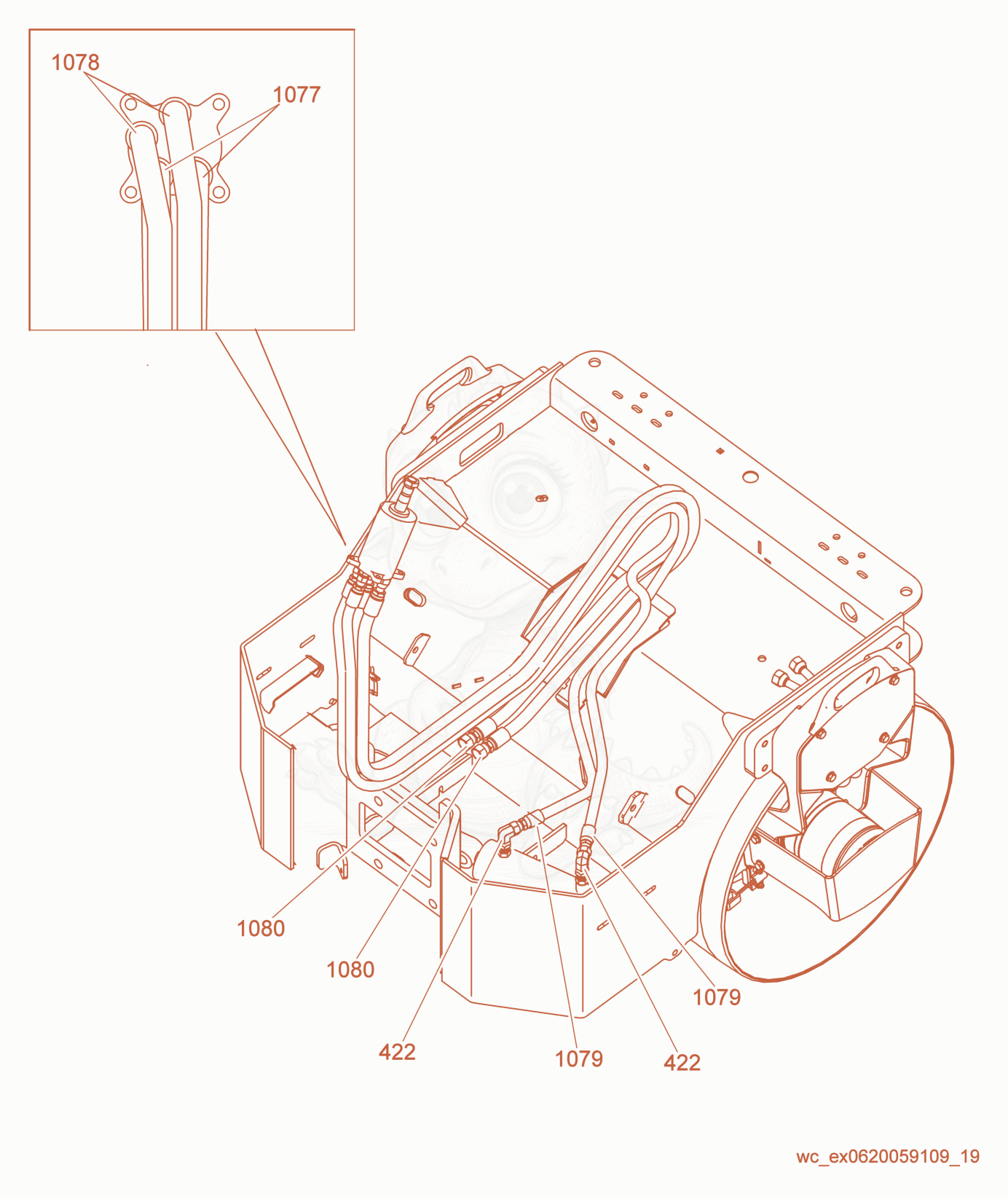

Exploded parts diagram of the Steering Hydraulic System of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4225000083411
    $7.77
    FITTING-HYDRAULIC - 5000083411×2
  • 4225000080731
    $0.26
    O-RING .468 X.078 DURO90 3-906 - 5000080731×2
  • 4225000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×2
  • 10775000163987
    $63.21
    HOSE-RD16,STEER P/T TO UNION - 5000163987×2
  • 10785000163354
    $53.42
    HOSE-STEER UNIT L TO CYL BAR - 5000163354×2
  • 10795000173436
    $66.02
    HOSE-STEER VALVE L/R TO CYL - 5000173436×2
  • 10805000163987
    $63.21
    HOSE-RD16,STEER P/T TO UNION - 5000163987×2
