RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

RD12-90 Seat Assembly Diagram

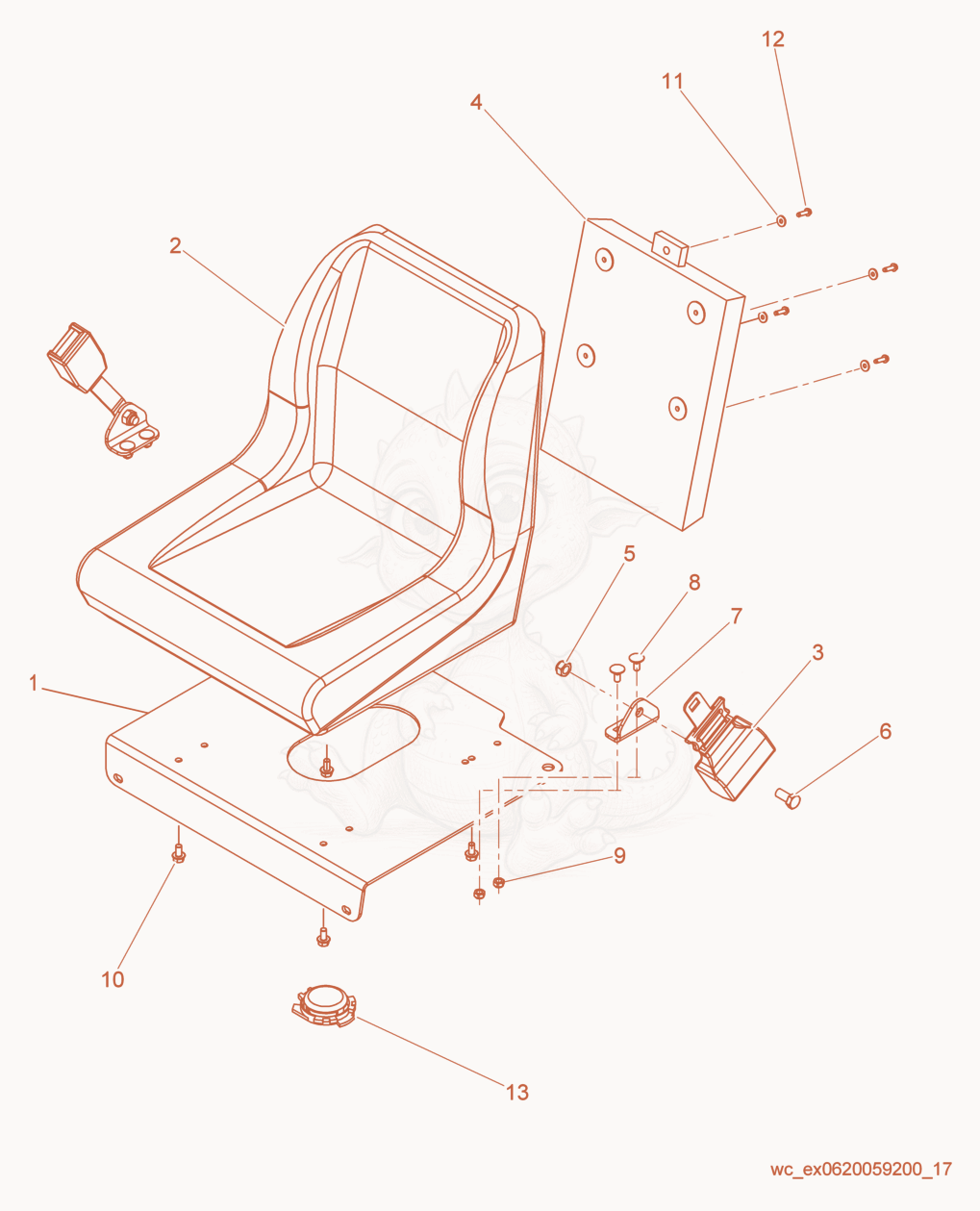

Exploded parts diagram of the Seat Assembly of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000163274
    $278.82
    PLATE-SEAT - 5000163274×1
  • 25000110970
    $242.91
    Seat-Operator - 5000110970×1
  • 35000110972
    $62.66
    KIT-SEAT BELT - 5000110972×1
  • 45000083220
    $119.05
    HOLDER-MANUAL - 5000083220×1
  • 55000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×2
  • 65000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×2
  • 75000114203
    $334.62
    BRACKET-MOUNT,SEAT P-5000112007 - 5000114203×2
  • 85000163954
    $0.35
    Bolt-Carriage M8x20-8.8,Blk EP3 - 5000163954×4
  • 95000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 105000163948
    $0.35
    SCREW M8X16 HX FLG BL ZN 8.8,W/202 - 5000163948×4
  • 115000010372
    $0.03
    WASHER B5.3 FLAT - 5000010372×4
  • 125000155497
    $0.21
    SCREW #10X3/4,TYP B,SLT FLG HX - 5000155497×4
  • 135000164603
    $28.15
    SWITCH-SEAT - 5000164603×1
