RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

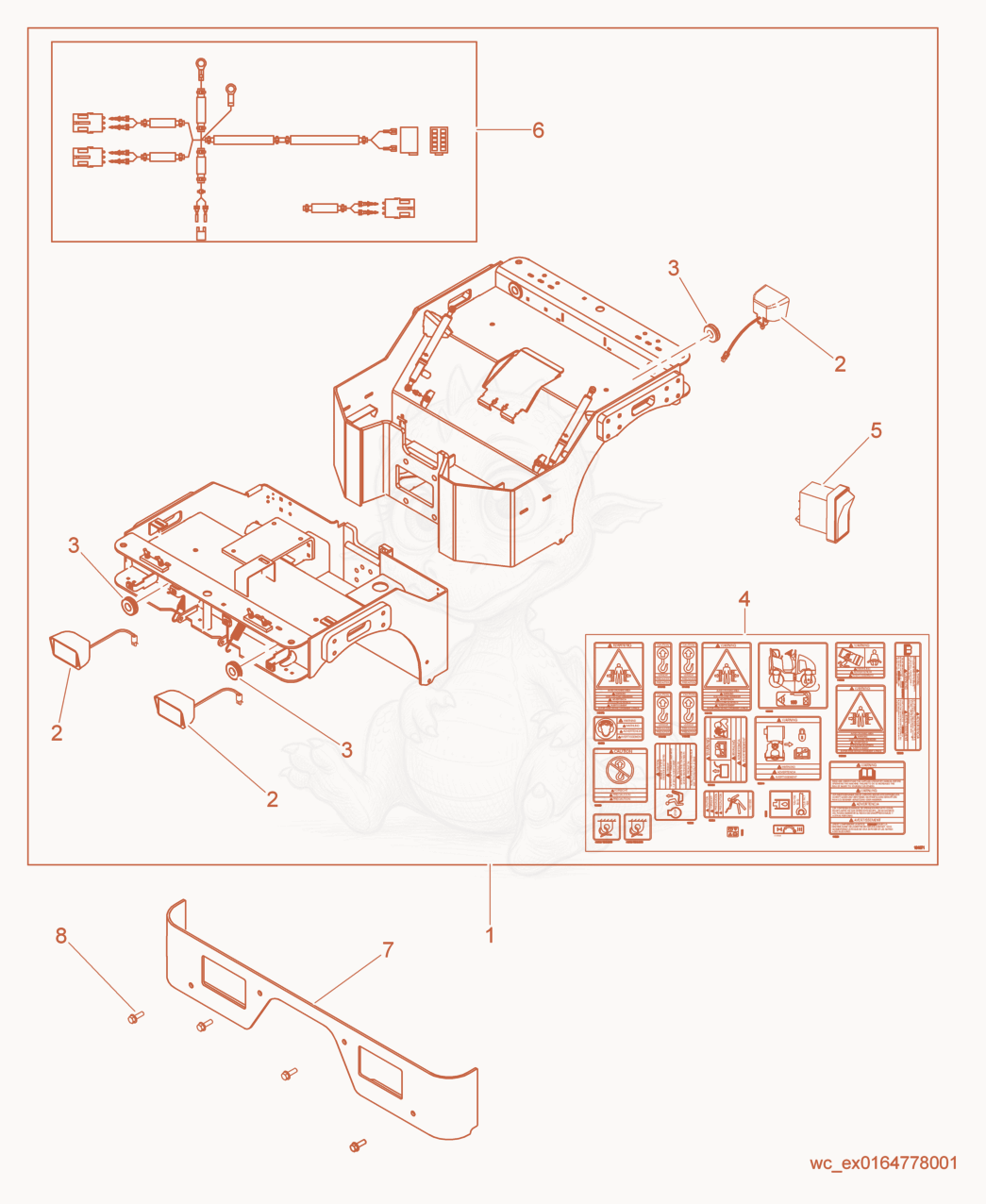

RD12-90 Lights Kit Diagram

Exploded parts diagram of the Lights Kit of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000164778Not stocked
    Lights Kit×1
  • 25000164150
    $140.51
    LIGHT-WORK,12V,RD16 - 5000164150×3
  • 35000163464
    $1.36
    GROMMET,1IDX1-3/4ODX1/4 WOG - 5000163464×2
  • 45000164071
    $29.12
    LABEL-SHEET,OPERATOR SAFETY - 5000164071×1
  • 55000165065
    $16.30
    SWITCH-SPST OFF/ON - 5000165065×1
  • 65000165478
    $129.94
    WIRING HARNESS-WORK LIGHT,RD12 - 5000165478×1
  • 65000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×2
  • 65000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×6
  • 85000163947
    $0.26
    SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×8
  • 85000110969
    $0.65
    NUT-LOCK,M8 CLIP - 5000110969×8
