RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

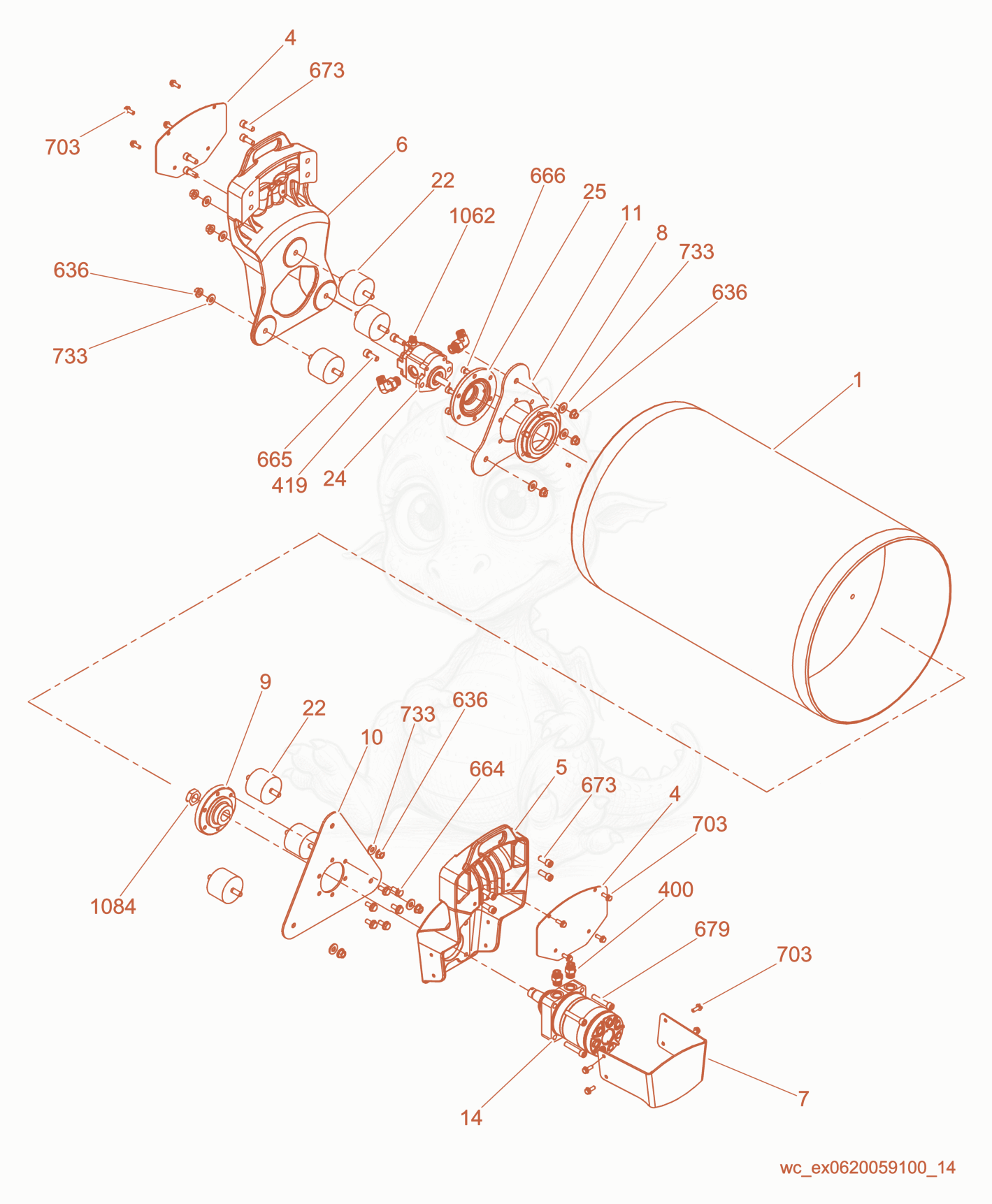

RD12-90 Front Drum Diagram

Exploded parts diagram of the Front Drum of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000164064
    $2,292.52
    DRUM-VIBRATORY - 5000164064×1
  • 45000111119
    $19.47
    COVER-DRUM SUPPORT P-5000176420 - 5000111119×2
  • 55000111058
    $488.26
    BRACKET-DRUM SUPPORT P-5000176420 - 5000111058×1
  • 65000111060
    $210.50
    BRACKET-DRUM SUPPORT P-5000176420 - 5000111060×1
  • 75000114215
    $247.32
    GUARD-MOTOR P-5000176420 - 5000114215×1
  • 85000111096
    $41.31
    HOUSING-BEARING P-5000176420 - 5000111096×1
  • 95000114856
    $489.82
    HUB-MACHINED - 5000114856×1
  • 105000111113
    $110.68
    PLATE-DRIVE P-5000176420 - 5000111113×1
  • 115000111056
    $83.60
    PLATE-SHOCKMOUNT P-5000176420 - 5000111056×1
  • 145000114214
    $1,914.83
    MOTOR-HYDRAULIC - 5000114214×1
  • 225000111052
    $50.73
    SHOCKMOUNT - 5000111052×6
  • 245200001719
    $849.56
    MOTOR-EXCITER,RD12 - 5200001719×1
  • 255000162952
    $136.63
    MOUNT-EXCITER MOTOR P-5000176420 - 5000162952×1
  • 4005000079875
    $4.36
    FITTING-STR.THD.CONNECTOR - 5000079875×2
  • 4005000080737
    $0.15
    O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
  • 4005000080733
    $0.45
    O-RING .755 X.097 DURO90 3-910 - 5000080733×1
  • 4195000080732
    $0.32
    O-RING .644 X.087 DURO90 3-908 - 5000080732×1
  • 4195000080736
    $0.19
    O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
  • 4195000111277
    $12.23
    FITTING-HYD,SAE #6-8 90 ELBOW - 5000111277×2
  • 6365000164045
    $1.21
    NUT-M12,HX.HD,FLG ZN,8.8 - 5000164045×9
  • 6645000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×6
  • 6655000011535
    $0.59
    SCREW M10 X 25 SOC.HD. - 5000011535×2
  • 6665000011534
    $0.94
    SCREW M10 X 30 SOC.HD. - 5000011534×6
  • 6735000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×8
  • 6795000111979
    $1.55
    SCREW M12 X 60,SOC.HD. - 5000111979×4
  • 7035000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×12
  • 7335000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×9
  • 10625000111282
    $3.22
    FITTING-HYD,SAE #4 - 5000111282×1
  • 10625000080730
    $0.19
    O-RING .351 X.072 DURO90 3-904 - 5000080730×1
  • 10625000112267
    $0.09
    O-RING .30 X .07 #4 ORFS 2-011 - 5000112267×1
  • 10845000083689
    $45.87
    NUT 1 -20 UNEF 2A - 5000083689×1
